Description

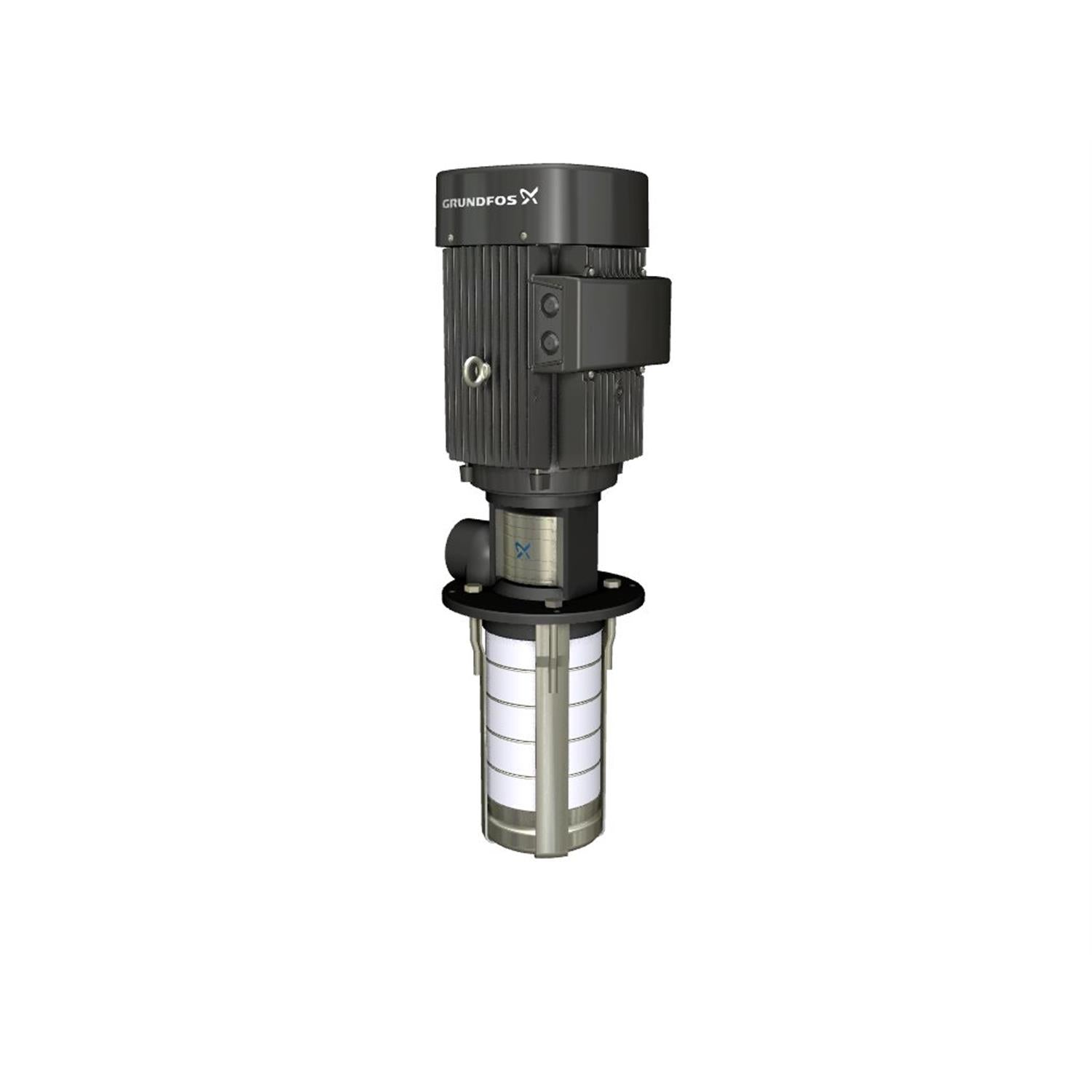

Grundfos 99720365 - MTR 10-7/1 A-W-A-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713833366896
Material Pricing Group
32
Motor efficiency at full load 1
77.0-77.0 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
11.7 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.86-0.77
Selected liquid temperature
68 °F
Type of connection
G internal thread
Rated voltage
3 x 220-255D/380-440Y V
Flange size for motor
FT100
Pumped liquid
Water
Size of outlet connection
2 inch
Starting current
600-740 %
Connect code
W
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
84.5-83.0 %
Built-in motor protection
NONE
Net weight
50.9 lb
Number of poles
2
Rated speed
3410-3470 rpm
Gross weight
58.6 lb
Rated power - P2
0.75 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
84.4-84.6 %
Rated current
2
Cable gland entry
2xM20x1
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
80AA
Terminal box position
6
Pump speed on which pump data are based
3474 rpm
Approvals
CE
Rated flow
53.3 US gpm
Model
A
Version
A
Motor
FT100
Chambers
7
Motor standard
IEC
Rated head
30.19 ft
Type
80AA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
