Grundfos 96515394 - MTR 1-22/22 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

GrundfosSKU: 96515394

Price:
Sale price$7,370.00
Build to order – stocked components, typically available in 20 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 96515394 - MTR 1-22/22 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical · Genuine Grundfos Part
MTR SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 96515394 is a genuine Grundfos spare part, repair kit, or accessory compatible with the MTR series (Immersible pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — MTR
Vertical, multistage centrifugal pump for tank top mounting. Suitable for machine tool coolant, deionized water, and process liquid applications requiring tank-top installation.
Immersible pumps
Part Details
Part Number 96515394
Compatible Series Grundfos MTR
Product Category Immersible pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos MTR pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — MTR Series
✓ Spare Parts List — MTR Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
Approvals CE,EAC,UKCA,RCM,cURus/cCSAus,Morocco
Approvals for motor CE,CC
Built-in motor protection NONE
Chambers 22
Code for shaft seal HUUV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 83.7 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:MTR 1-22/22 A-WB-A-HUUV
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 20.5 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard NEMA
Motor type 90HA
n rpm F
Net weight 74.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 3 HP
Phase 3
Power factor 1 0.85-0.82
Pump version A
Rated current 8,50-8,20/4,10 A
Rated flow 9.69 US gpm
Rated head 494.4 ft
Rated power - P2 3 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Sales region Namreg
Service factor 1.15
Shaft Product name:MTR 1-22/22 A-WB-A-HUUV
Shaft seal HUUV
Standard NEMA
Starting current 850-970 %
Suitable for 5/6 Hz N
Terminal box position 6
Type 90HA
Type of connection NPT(F)
Version A

Motor Curves

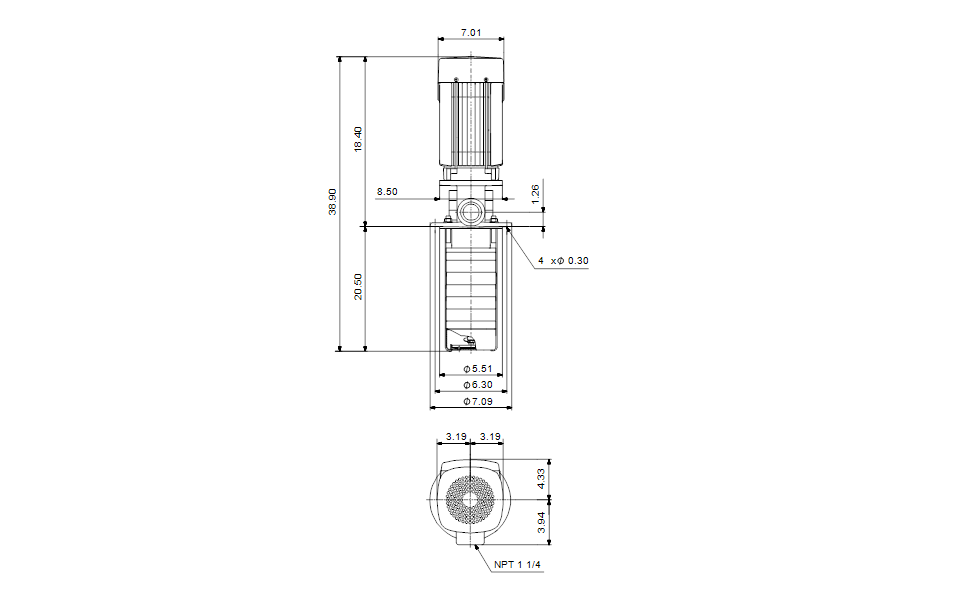

Dimensional Drawing
