Description

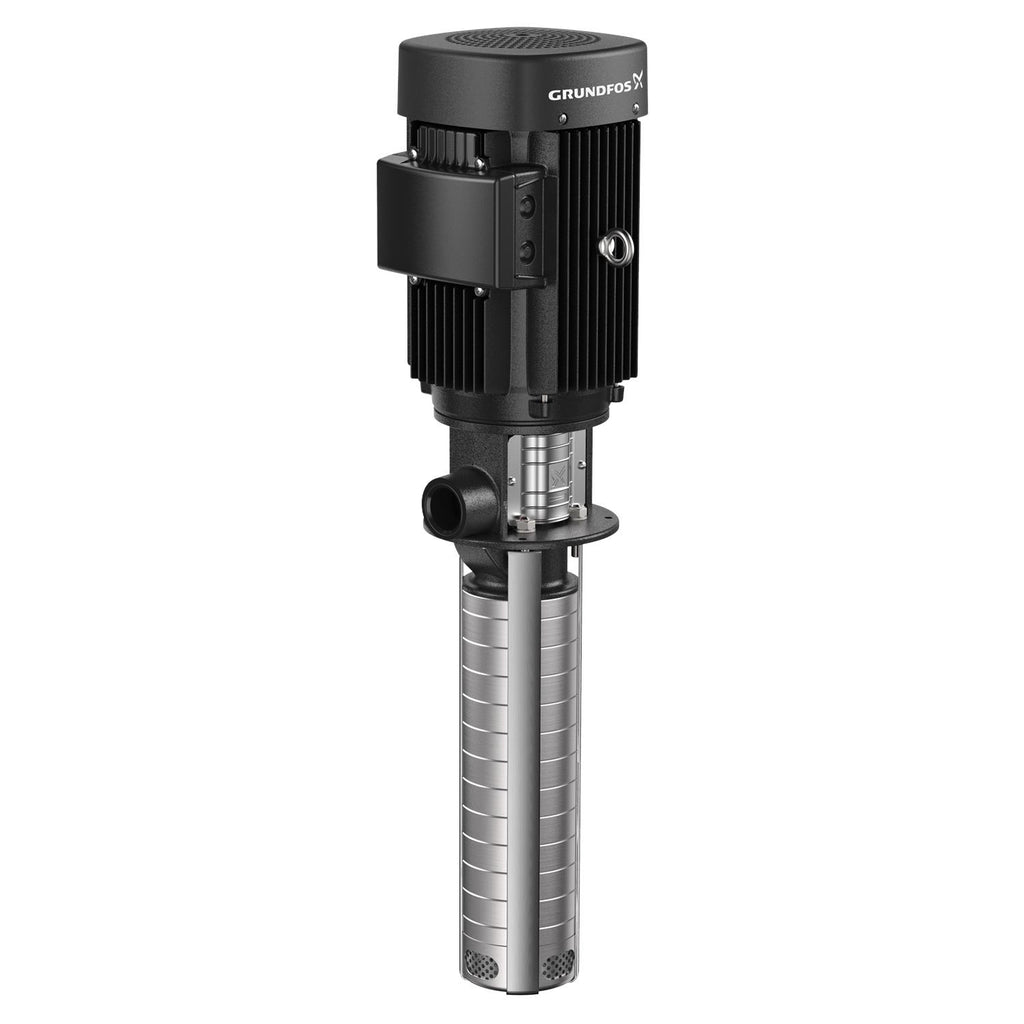

The Grundfos 96519893 (MTR 1-15/15 A-WB-I-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications. Nominal performance: 9.69US gpm at 337.6ft. Rated 208-230YY/460YV, 3-Phase, 60 Hz. Applications include Machining.
Tank Top Installation
MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.
Stainless Steel Throughout
All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.
Multistage for High Head in Small Diameter
Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.
Wide Flow and Head Range
MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.
MTRE Variable Speed Option
MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.
Genuine Grundfos Parts Available
As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.
| Model Number | 96519893 |
| Product Series | MTR |
| Series Description | Submersible Multistage Pump — Tank Top |
| Power | 2HP |
| Voltage | 208-230YY/460YV |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3480-3510rpm |
| Full Load Current | 5,70-5,40/2,70A |
| Motor Type | 90CC |
| Motor Efficiency | 84.5-85.5% |
| Insulation Class | F |
| Protection Class (IP) | IP55 (Protect. water jets/dust) |
| Nominal Flow | 9.69US gpm |
| Nominal Head | 337.6ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 140°F |
| Outlet Connection | NPT 1 1/4inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Shaft Seal | HUUV |
| Approvals / Certifications | CE, CURUS, CC122B, EAC |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700396809847
- Approvals
- CE
- Built-in motor protection
- NONE
- Chambers
- 15
- Code for shaft seal
- HUUV
- Connect code
- WB
- Connection
- NPT 1 1/4 inch
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- 55 (Protect. water jets/dust)
- Flange size for motor
- 56C
- Gross weight
- 71.6 lb
- Impeller
- Stainless steel
- Impellers
- 15
- Insulation class (IEC 85)
- F
- Liquid temperature range
- 14 .. 194 °F
- Mains frequency
- 60 Hz
- Material code
- I
- Material Pricing Group
- 32
- Maximum ambient temperature
- 140 °F
- Maximum operating pressure
- 25 bar
- Model
- A
- Motor
- 56C
- Motor efficiency at 1/2 load
- 0.83
- Motor efficiency at 3/4 load
- 0.85
- Motor efficiency at full load 1
- 84.5-85.5 %
- Motor type
- 90CC
- Net weight
- 64.6 lb
- Number of poles
- 2
- Power factor 1
- 0.88-0.84
- Pump version
- A
- Pumped liquid
- Emulsion
- Rated current
- 5
- Rated flow
- 9.69 US gpm
- Rated head
- 337.6 ft
- Rated power - P2
- 1.5 kW
- Rated speed
- 3480-3510 rpm
- Rated voltage
- 3 x 208-230YY/460Y V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Sales region
- Namreg
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Size of outlet connection
- NPT 1 1/4 inch
- Starting current
- 810-900 %
- Type
- 90CC
- Type of connection
- NPT(F)
- Version
- A
