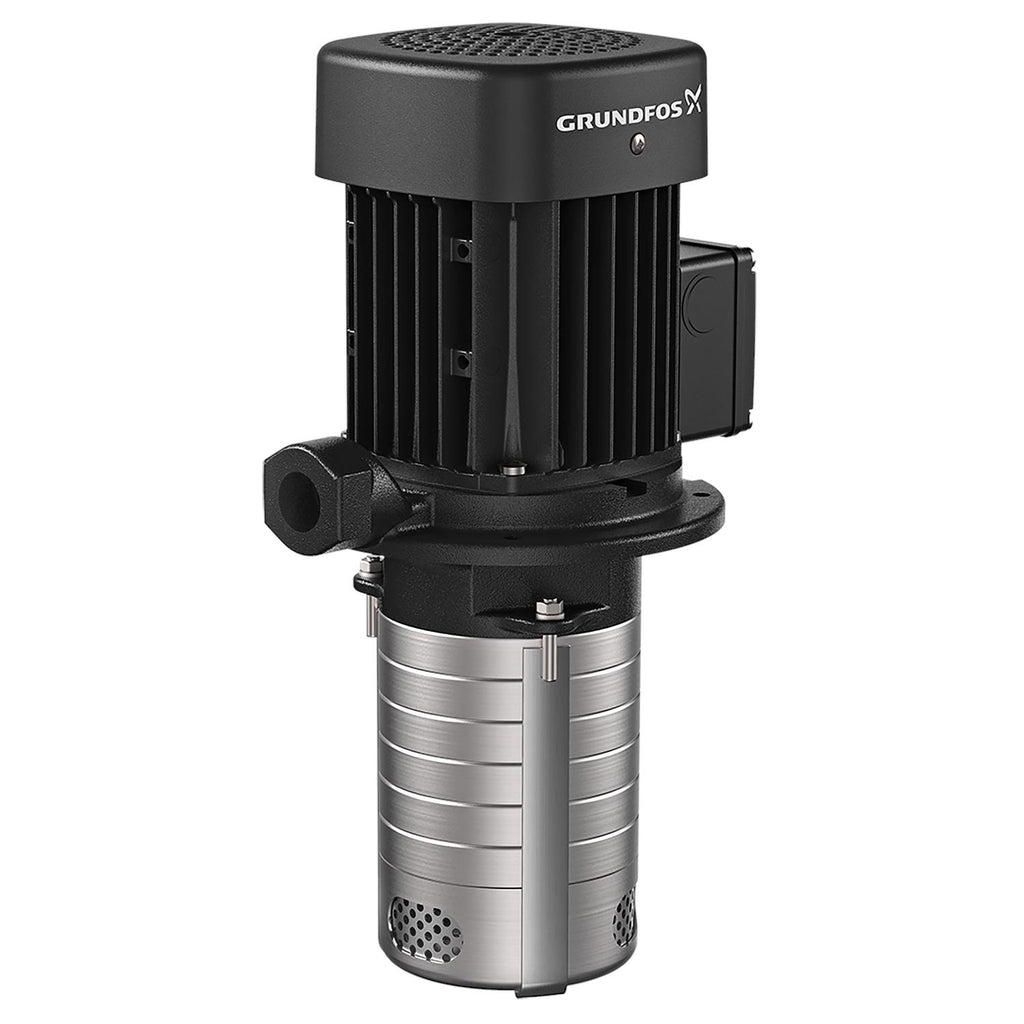

Grundfos 98993028 - MTH 4-9/1 A-W-A-AQQV | Multistage | Horizontal | Centrifugal

Save $1,121.42
GRUNDFOSSKU: 98993028

Price:
Sale price$1,264.58 Regular price$2,386.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos MTH 4-9/1 A-W-A-AQQV is a multistage, horizontal centrifugal pump designed for industrial fluid transfer and pressure boosting; it suits facilities and technicians who service tank-mounted and multistage pump systems.

Key features

  • Multistage centrifugal design for higher discharge pressure in compact footprint
  • Compatible with tank-mounted installations and controls accessories noted in tags
  • Robust horizontal configuration offering reliable performance for industrial applications

Applications

Typical uses include pressure boosting, transfer duties in industrial and commercial plants, and integration with control accessories for tank-mounted systems.

Compatibility note: Match the exact model or SKU before ordering. If unsure, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98993028

EAN 5712604838747
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Chambers 9
Code for shaft seal AQQV
Connect code W
Connection 3/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Energy approvals for motor CE
Environmental approvals WEEE
Frame size 71B
Frequency converter NONE
Gross weight 34.5 lb
Housing Cast iron
IE Efficiency class IE3
Immersion depth 13.1 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum current consumption 2.95/1.72 A
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE
Motor standard IEC
Multi plug N
Net weight 32.0 lb
Number of reduced-diameter impellers 0
Product family MTH 4
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 2.50/1.44 A
Rated flow 26.4 US gpm
Rated head 28.87 ft
Rated power - P2 0.55 kW
Rated speed 2855 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.3
Size 71B
Size of outlet connection 3/4 inch
Standard IEC
Starting current 580-620 %
Suitable for 50/60 Hz Y
Terminal box position 6
Type of connection Rp
Version A

Motor Curves

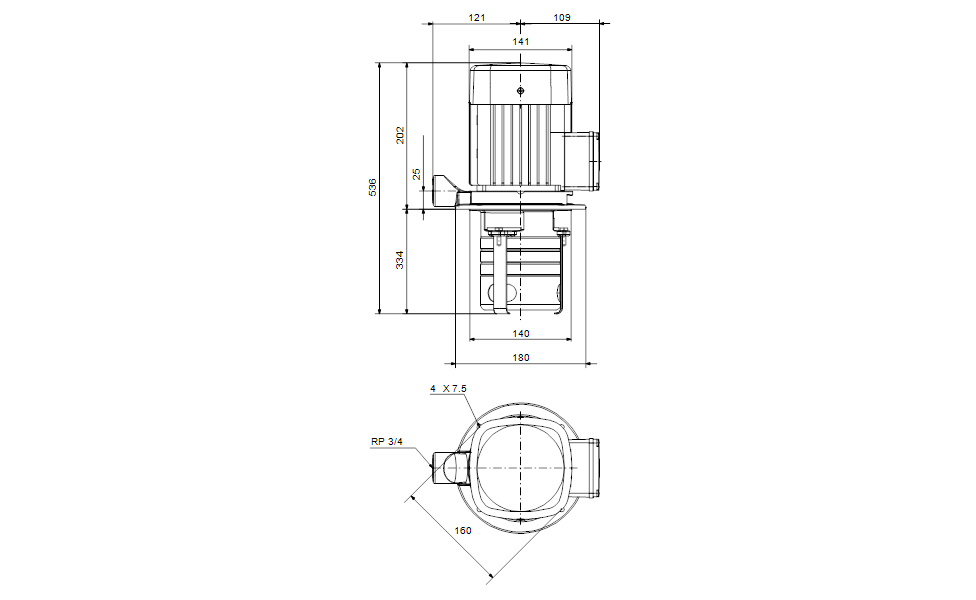

Dimensional Drawing

DWiring Diagram
