Grundfos 98993057 - MTH 4-7/5 A-W-A-AQQV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $1,269.94
GrundfosSKU: 98993057

Price:
Sale price$1,432.06 Regular price$2,702.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 98993057 - MTH 4-7/5 A-W-A-AQQV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical · Genuine Grundfos Part
MTH SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 98993057 is a genuine Grundfos spare part, repair kit, or accessory compatible with the MTH series (Immersible pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — MTH
Compact, vertical, multistage centrifugal pump for tank top mounting.
Immersible pumps
Part Details
Part Number 98993057
Compatible Series Grundfos MTH
Product Category Immersible pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos MTH pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — MTH Series
✓ Spare Parts List — MTH Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5712604839034
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Chambers 7
Code for shaft seal AQQV
Connect code W
Connection 3/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Energy approvals for motor CE
Environmental approvals WEEE
Frame size 90SE
Frequency converter NONE
Gross weight 61.6 lb
Housing Cast iron
IE Efficiency class IE3
Immersion depth 11 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum current consumption 6,20-5,90/3,60-3,40 A
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE
Motor standard IEC
Multi plug N
Net weight 58.6 lb
Number of reduced-diameter impellers 0
Product family MTH 4
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 5
Rated flow 26.4 US gpm
Rated head 155.5 ft
Rated power - P2 1.5 kW
Rated speed 2920 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size 90SE
Size of outlet connection 3/4 inch
Standard IEC
Starting current 830-950 %
Suitable for 50/60 Hz Y
Terminal box position 6
Type of connection Rp
Version A

Motor Curves

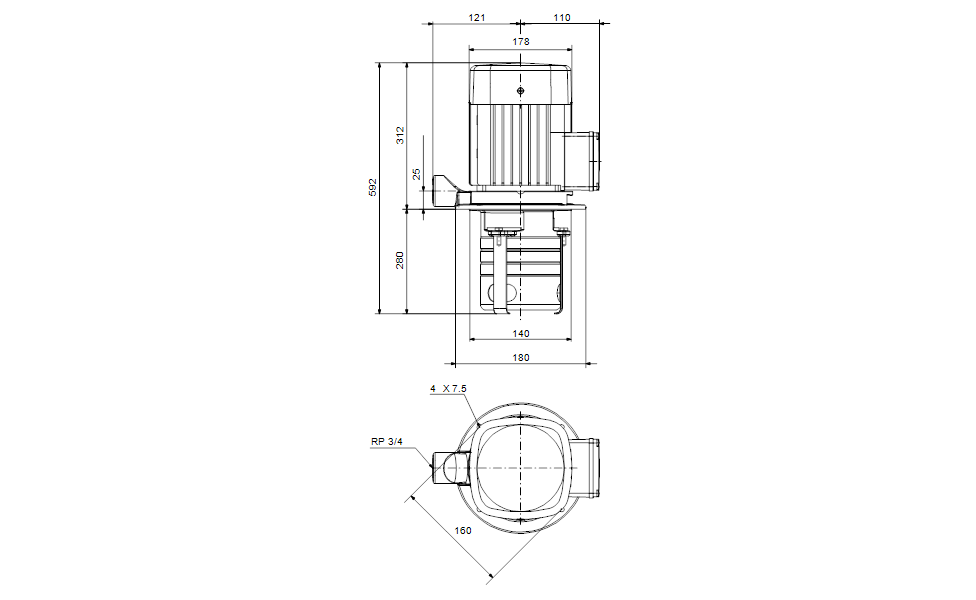

Dimensional Drawing
