Description

Overview

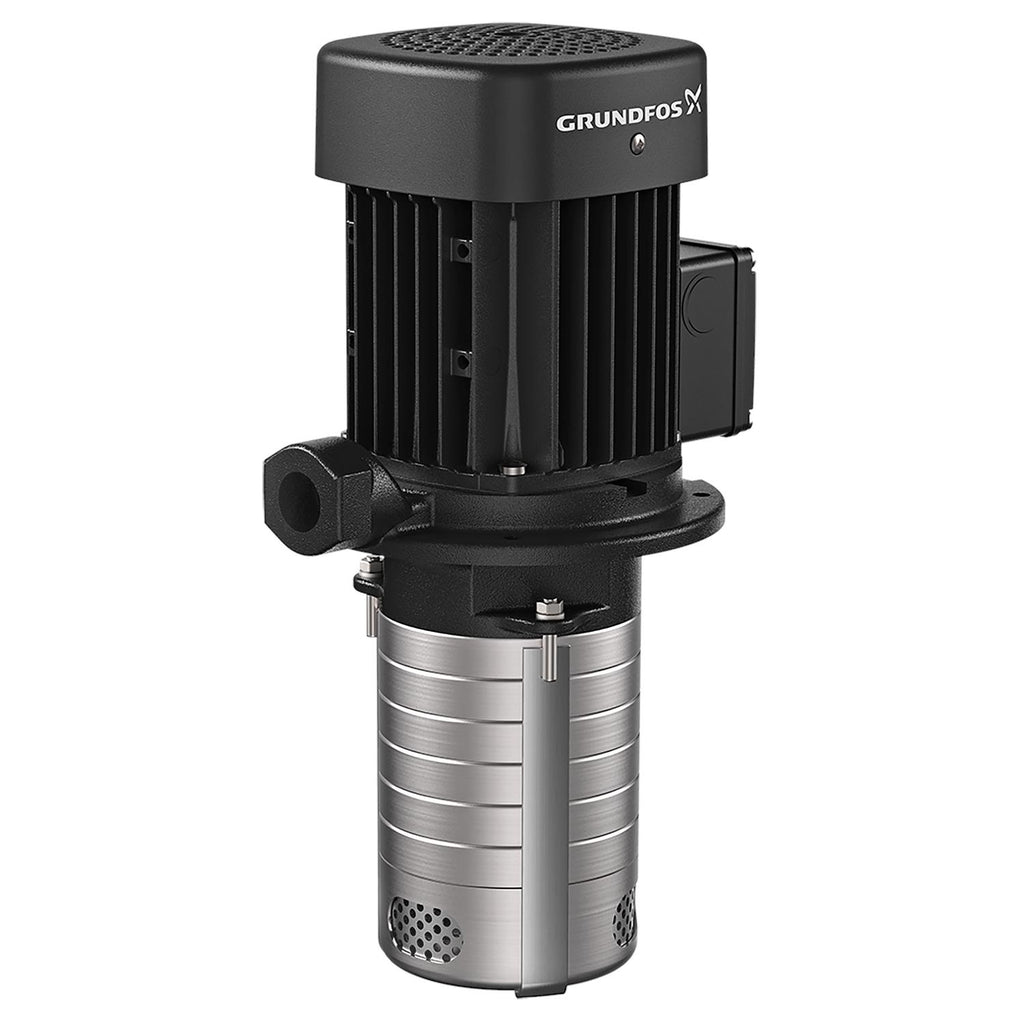

Grundfos 98992627 is a multistage centrifugal pump from the MTH series, intended for horizontal, tank-mounted installations and used by industrial and commercial maintenance teams.

Key features

  • Built for industrial applications and general-purpose pumping duties
  • Multistage centrifugal design suitable for tank-mounted and immersed setups, matching MTH series tags
  • Delivers reliable fluid transfer with consistent pressure for system stability

Applications

Suitable for boiler feed, pressure boosting, water transfer, and other industrial or commercial pump systems where multistage centrifugal performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98992627

EAN 5712604834732
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Chambers 9
Code for shaft seal AQQV
Connect code W
Connection 3/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Energy approvals for motor CE
Environmental approvals WEEE
Frame size 80C
Frequency converter NONE
Gross weight 43.7 lb
Housing Cast iron
IE Efficiency class IE3
Immersion depth 9.96 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum current consumption 5.75/3.3 A
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE
Motor standard IEC
Multi plug N
Net weight 41.2 lb
Number of reduced-diameter impellers 0
Product family MTH 2
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 4.35/2.55 A
Rated flow 13.2 US gpm
Rated head 185 ft
Rated power - P2 1.1 kW
Rated speed 2855 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.3
Size 80C
Size of outlet connection 3/4 inch
Standard IEC
Starting current 450-500 %
Suitable for 50/60 Hz Y
Terminal box position 6
Type of connection Rp
Version A

Motor Curves

Dimensional Drawing

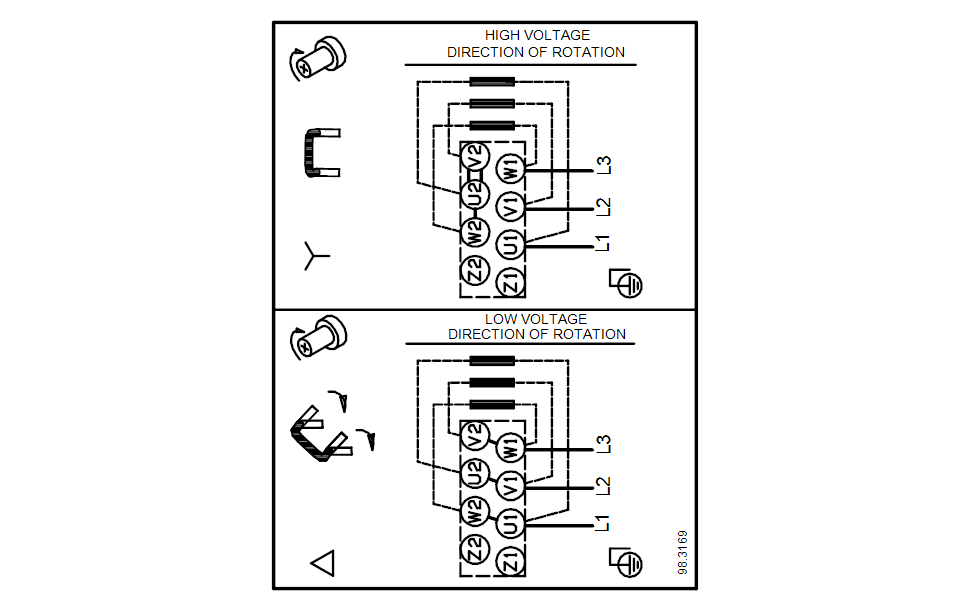

DWiring Diagram
