Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

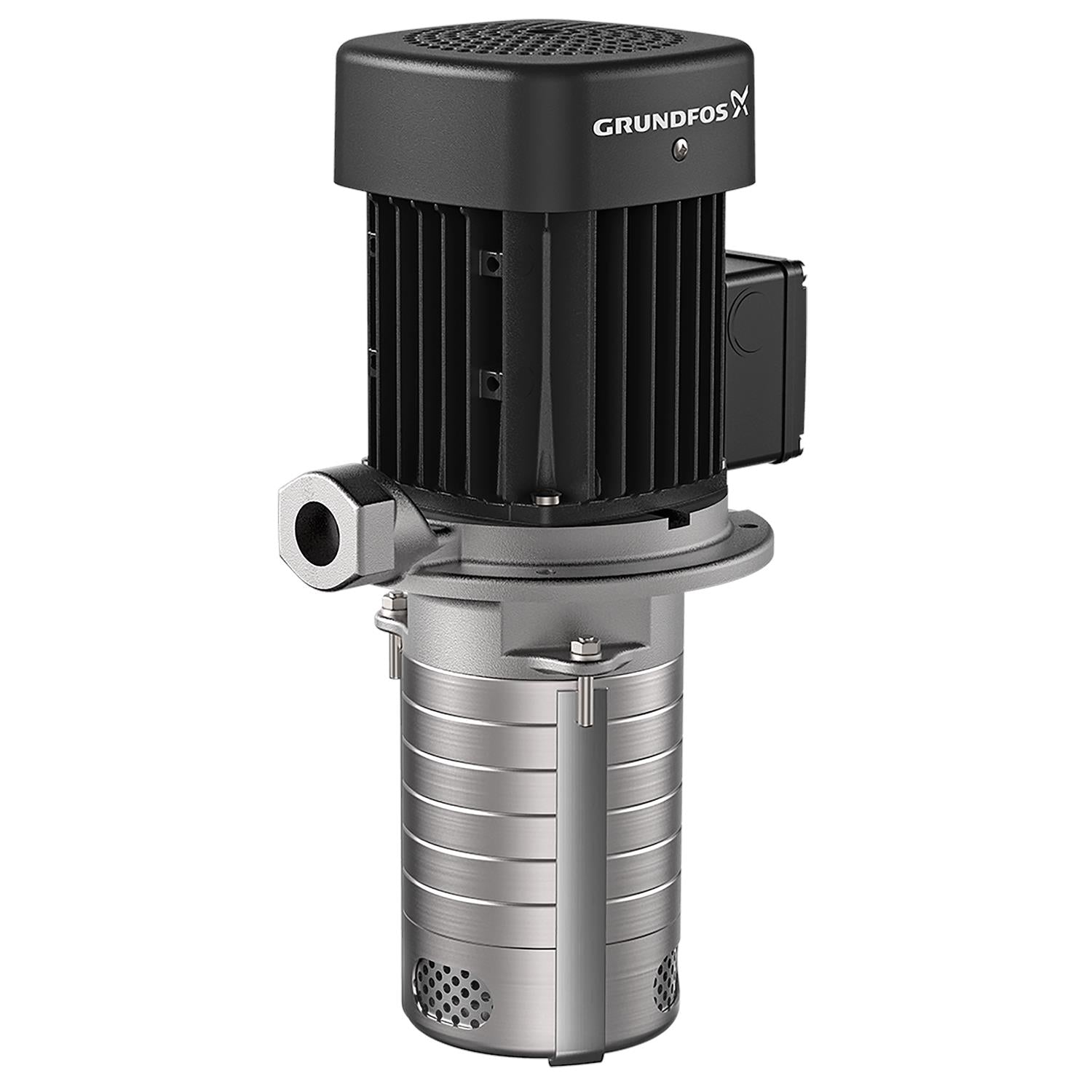

98992897 · Submersible Multistage Pump — Horizontal
The Grundfos 98992897 (MTH 2-8/8 A-W-I-AQQV) is a Submersible Multistage Pump — Horizontal. Compact horizontal multistage pump for tank top or inline installation. Nominal performance: 13.2US gpm at 245.7ft. Rated 200-220D/346-380YV, 3.0-Phase, 60 Hz. Applications include Machining.
Power
1.48HP
Voltage
200-220D/346-380YV
Phase
3.0-Phase
Max Flow
13.2US gpm
Max Head
245.7ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 98992897
Series: MTH
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQV
Technical Specifications
| Model Number | 98992897 |
| Product Series | MTH |
| Series Description | Submersible Multistage Pump — Horizontal |
| Power | 1.48HP |
| Voltage | 200-220D/346-380YV |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3435rpm |
| Full Load Current | 5,05-5/2,9-2,9A |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Motor Efficiency | 84% |
| Insulation Class | F |
| Protection Class (IP) | IP54 |
| Nominal Flow | 13.2US gpm |
| Nominal Head | 245.7ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 140°F |
| Outlet Connection | 3/4inch |
| Pipe Standard | Rp |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | AQQV |
| Approvals / Certifications | CE, EAC, UKCA |
Applications
Machining
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-220D/346-380YV, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. MTH pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — MTH Series
✓ Product Data Sheet — 98992897
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5712604837436
- Approvals
- WEEE
- Approvals for motor
- CE
- Built-in motor protection
- NONE
- Chambers
- 8
- Code for shaft seal
- AQQV
- Connect code
- W
- Connection
- 3/4 inch
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP54
- Energy approvals for motor
- CE
- Environmental approvals
- WEEE
- Frame size
- 80B
- Frequency converter
- NONE
- Gross weight
- 42.7 lb
- Housing
- Stainless steel
- IE Efficiency class
- IE3
- Immersion depth
- 9.25 in
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- 14 .. 194 °F
- Mains frequency
- 50 Hz
- Material code
- I
- Material Pricing Group
- 32
- Max pressure at stated temp
- 145 psi / 194 °F
- Maximum ambient temperature
- 140 °F
- Maximum current consumption
- 6.1/3.5 A
- Maximum operating pressure
- 10 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- A
- Motor
- CE
- Motor standard
- IEC
- Multi plug
- N
- Net weight
- 40.2 lb
- Number of reduced-diameter impellers
- 0
- Product family
- MTH 2
- Pump housing
- Stainless steel
- Pump version
- A
- Pumped liquid
- Emulsion
- Rated current
- 5.1/2.95 A
- Rated flow
- 13.2 US gpm
- Rated head
- 245.7 ft
- Rated power - P2
- 0.75 kW
- Rated speed
- 2910 rpm
- Rated voltage
- 3 x 200/346 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Service factor
- 1.3
- Size
- 80B
- Size of outlet connection
- 3/4 inch
- Standard
- IEC
- Starting current
- 6.5
- Suitable for 50/60 Hz
- Y
- Terminal box position
- 6
- Type of connection
- Rp
- Version
- A
Dimensional Drawing
Wiring Diagram
