Grundfos 98992548 - MTH 2-8/1 A-W-A-AQQV | Multistage | Horizontal | Centrifugal

Save $1,053.74
GRUNDFOSSKU: 98992548

Price:
Sale price$1,188.26 Regular price$2,242.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98992548 - MTH 2-8/1 A-W-A-AQQV is a multistage centrifugal pump assembly intended for industrial fluid transfer and pressure-boosting applications, commonly used by maintenance and service technicians. This horizontal multistage unit fits pump systems where consistent pressure and compact footprint are required.

Key features

  • Multistage centrifugal design for higher pressure in compact installations
  • Compatible with tank-mounted and immersed setups based on MTH/MTA/MTR family tags
  • Delivers reliable, stable flow for general industrial and process duties

Applications

General industrial pumping, pressure boosting, circulation in process systems, and replacement in multistage pump assemblies where a horizontal configuration is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98992548

EAN 5712604833940
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Chambers 8
Code for shaft seal AQQV
Connect code W
Connection 3/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Energy approvals for motor CE
Environmental approvals WEEE
Frame size 71B
Frequency converter NONE
Gross weight 34.3 lb
Housing Cast iron
IE Efficiency class IE3
Immersion depth 9.25 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum current consumption 2.95/1.72 A
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE
Motor standard IEC
Multi plug N
Net weight 31.8 lb
Number of reduced-diameter impellers 0
Product family MTH 2
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 2.50/1.44 A
Rated flow 13.2 US gpm
Rated head 30.84 ft
Rated power - P2 0.55 kW
Rated speed 2855 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.3
Size 71B
Size of outlet connection 3/4 inch
Standard IEC
Starting current 580-620 %
Suitable for 50/60 Hz Y
Terminal box position 6
Type of connection Rp
Version A

Motor Curves

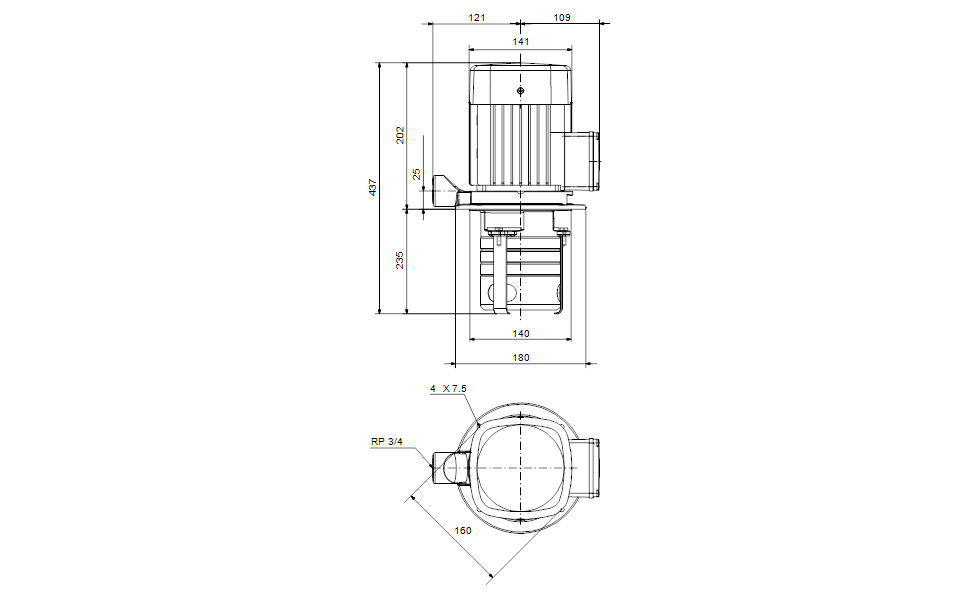

Dimensional Drawing

DWiring Diagram
