Grundfos 98992640 - MTH 2-11/7 A-W-A-AQQV | Multistage | Horizontal | Centrifugal

Save $1,311.30
GRUNDFOSSKU: 98992640

Price:
Sale price$1,478.70 Regular price$2,790.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98992640 - MTH 2-11/7 A-W-A-AQQV is a multistage horizontal centrifugal pump designed for industrial and commercial systems. It suits technicians and facility managers needing reliable fluid transfer and pressure services.

Key features

  • Multistage centrifugal design for higher pressure head
  • Compatible with tank-mounted and immersed installations per tag guidance
  • Durable construction offering consistent performance for routine system use

Applications

Common uses include process water transfer, pressure boosting, HVAC circulation, and general industrial pumping where multistage performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98992640

EAN 5712604834862
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Chambers 11
Code for shaft seal AQQV
Connect code W
Connection 3/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Energy approvals for motor CE
Environmental approvals WEEE
Frame size 80C
Frequency converter NONE
Gross weight 45.2 lb
Housing Cast iron
IE Efficiency class IE3
Immersion depth 11.4 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum current consumption 5.75/3.3 A
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE
Motor standard IEC
Multi plug N
Net weight 42.7 lb
Number of reduced-diameter impellers 0
Product family MTH 2
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 4.35/2.55 A
Rated flow 13.2 US gpm
Rated head 214.6 ft
Rated power - P2 1.1 kW
Rated speed 2855 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.3
Size 80C
Size of outlet connection 3/4 inch
Standard IEC
Starting current 450-500 %
Suitable for 50/60 Hz Y
Terminal box position 6
Type of connection Rp
Version A

Motor Curves

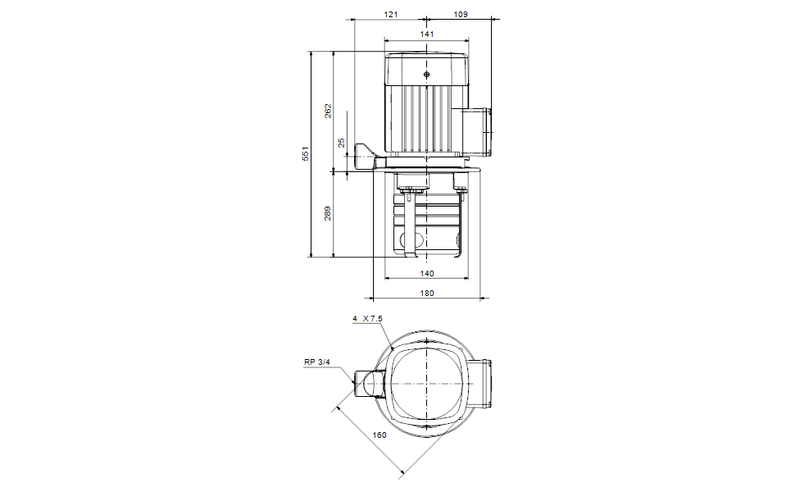

Dimensional Drawing

DWiring Diagram
