Grundfos 98992552 - MTH 2-10/1 A-W-A-AQQV | Multistage | Horizontal | Centrifugal

Save $1,114.37
GRUNDFOSSKU: 98992552

Price:
Sale price$1,256.63 Regular price$2,371.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98992552 MTH 2-10/1 A-W-A-AQQV is a multistage horizontal centrifugal pump intended for industrial and commercial fluid handling. It suits technicians, maintenance teams, and facility managers needing reliable pressure boosting and transfer solutions.

Key features

  • Manufactured for industrial applications and built to fit MTH series installations
  • Compatible with multistage and centrifugal configurations; tags include Mt Tank Mounted Pumps and MTH
  • Provides dependable fluid transfer and pressure stabilization for systems requiring multi-stage pumping

Applications

Typical uses include pressure boosting, process circulation, tank-mounted pumping, and other general industrial fluid handling tasks where multistage centrifugal performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98992552

EAN 5712604833988
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Chambers 10
Code for shaft seal AQQV
Connect code W
Connection 3/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Energy approvals for motor CE
Environmental approvals WEEE
Frame size 71B
Frequency converter NONE
Gross weight 35.3 lb
Housing Cast iron
IE Efficiency class IE3
Immersion depth 10.7 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum current consumption 2.95/1.72 A
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE
Motor standard IEC
Multi plug N
Net weight 32.8 lb
Number of reduced-diameter impellers 0
Product family MTH 2
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 2.50/1.44 A
Rated flow 13.2 US gpm
Rated head 30.84 ft
Rated power - P2 0.55 kW
Rated speed 2855 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.3
Size 71B
Size of outlet connection 3/4 inch
Standard IEC
Starting current 580-620 %
Suitable for 50/60 Hz Y
Terminal box position 6
Type of connection Rp
Version A

Motor Curves

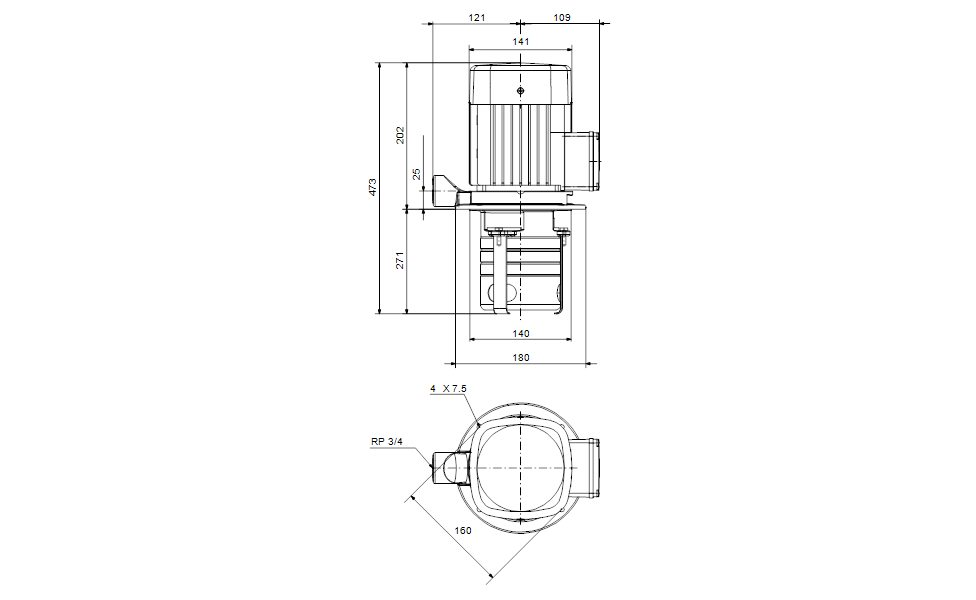

Dimensional Drawing

DWiring Diagram
