Grundfos 98993339 - MTC 4-7/7 A-WB-A-AQQV

Save $1,209.30
GRUNDFOSSKU: 98993339

Price:
Sale price$1,690.70 Regular price$2,900.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

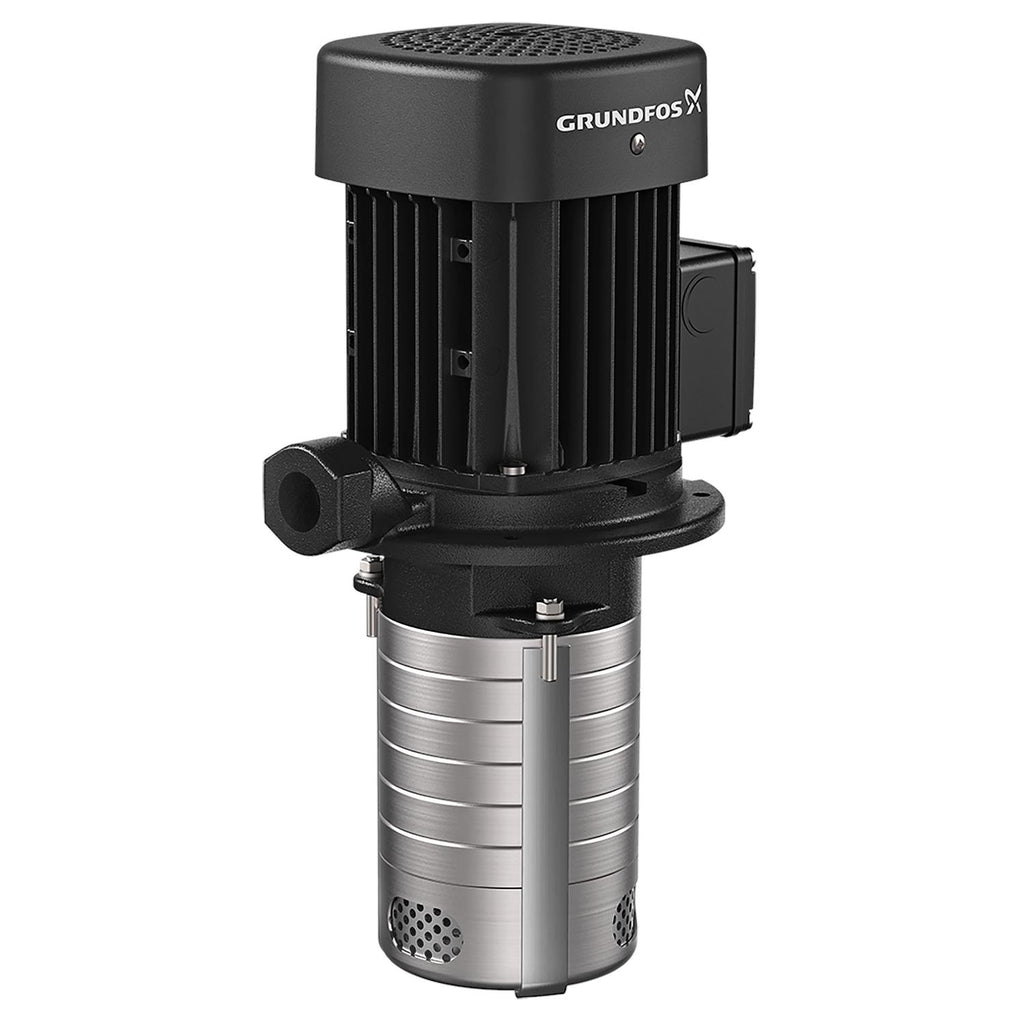

Grundfos 98993339 - MTC 4-7/7 A-WB-A-AQQV is a high-performance pump designed for various industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is ideal for those seeking reliable and efficient pumping solutions.

This pump falls under the category of Grundfos Controls & Accessories and is suitable for multi-stage and single-stage applications. It is specifically designed for vertical and immersed installations, making it versatile for different setups. The MTC series is known for its durability and efficiency, ensuring optimal performance in demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the 98993339 to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. We are here to help you find the perfect solution for your pumping needs!

Approvals CE,cURus/cCSAus
Approvals for motor CE,CC
Built-in motor protection NONE
Chambers 7
Code for shaft seal AQQV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Frame size 90HA
Frequency 60 Hz
Frequency converter NONE
Gross weight 72.2 lb
Housing Cast iron
I MAX 9,40-8,90/4,45A
IE Eff. Class IE3 / NEMA Premium
IE efficiency Product name:MTC 4-7/7 A-WB-A-AQQV
IE Efficiency class IE3 / NEMA Premium
Immersion depth 11 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class IP54
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 140 °F
Maximum current consumption 9,40-8,90/4,45 A
Maximum operating pressure 145.04 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE,CC
Motor standard NEMA
Multi plug N
n rpm F
Net weight 69.2 lb
Number of reduced-diameter impellers 0
P2 kW 2.95 HP
Phase 3
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 8,50-8,20/4,10 A
Rated flow 26.4 US gpm
Rated head 204.7 ft
Rated power - P2 2.95 HP
Rated speed 3510 rpm
Rated voltage 3 x 208-230YY/460Y V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft Product name:MTC 4-7/7 A-WB-A-AQQV
Shaft seal AQQV
Standard NEMA
Starting current 850-970 %
Suitable for 5/6 Hz Y
Terminal box position 6
Type of connection NPT(F)
Version A

Motor Curves

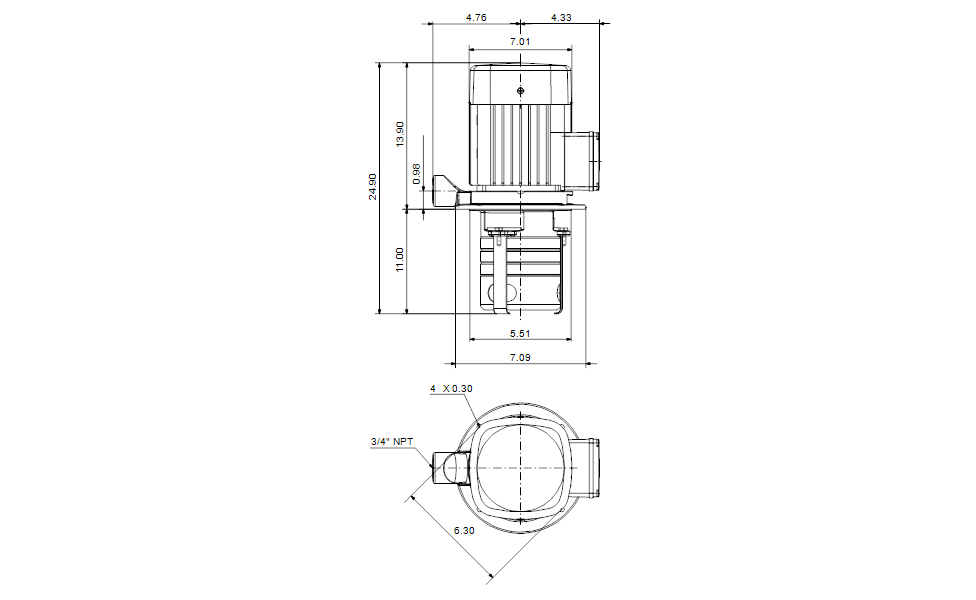

Dimensional Drawing

DWiring Diagram
