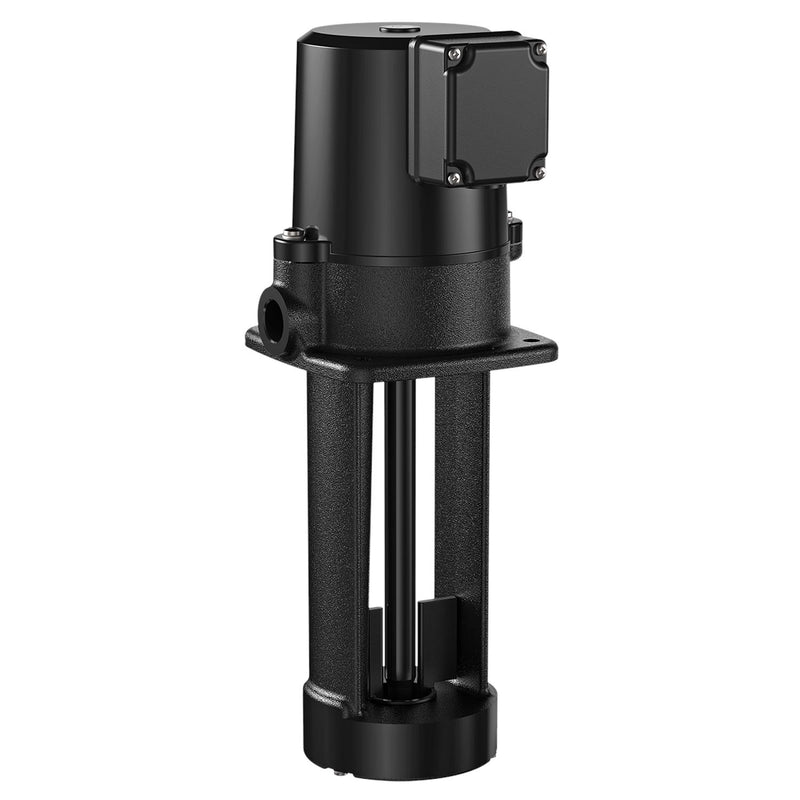

Grundfos 97770047 - MTA 90-250 A-WB-A-B Multistage Centrifugal Pump

The Grundfos 97770047 - MTA 90-250 A-WB-A-B is a high-performance multistage centrifugal pump designed for various industrial applications. This tank-mounted, immersible pump is engineered to deliver reliable and efficient performance, making it an ideal choice for demanding environments.

As part of the renowned Grundfos range, this pump features advanced technology and robust construction, ensuring longevity and optimal operation. It is suitable for a variety of applications, including water supply, pressure boosting, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our selection of Grundfos products, including the MTA series, and experience the quality and reliability that comes with the Grundfos name.

EAN 5710624079430
Approvals CE
Approvals and markings 10.4 m
Battery back-up 10.4 m
Built-in motor protection NO
Colour 10.4 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 10.4 m
Frequency converter Not prepared for VFD
Gross weight 36.0 lb
Head max 10.4 m
Housing Cast iron
Impeller PAA GF50
Insulation class (IEC 85) F
Length 252.5 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model A
Motor 10.4 m
Motor efficiency at full load 1 0.795
Net weight 32.0 lb
Number of leads 10.4 m
Pipework connection 10.4 m
Power 1 438 W
Power input - P1 438 W
Pressure retention valve 10.4 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 3/4
Pump version A
Pumped liquid Emulsion
Rated current 1.50-1.40/0.70 A
Rated flow 25 US gpm
Rated head 21 ft
Rated speed 3436 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 10.4 m
Service factor 1.15
Starting current 6.9
Valve type 10.4 m
Version A

Motor Curves

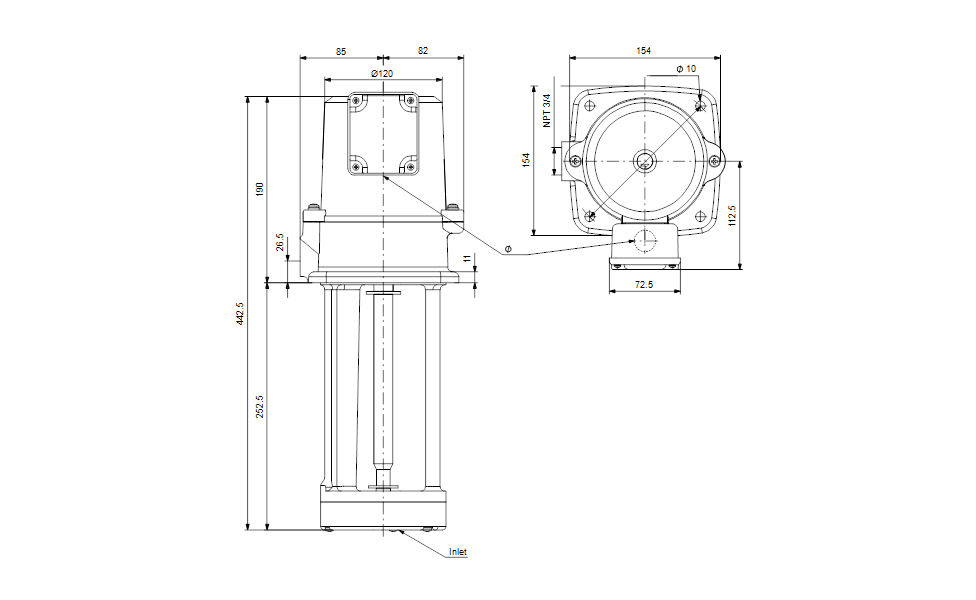

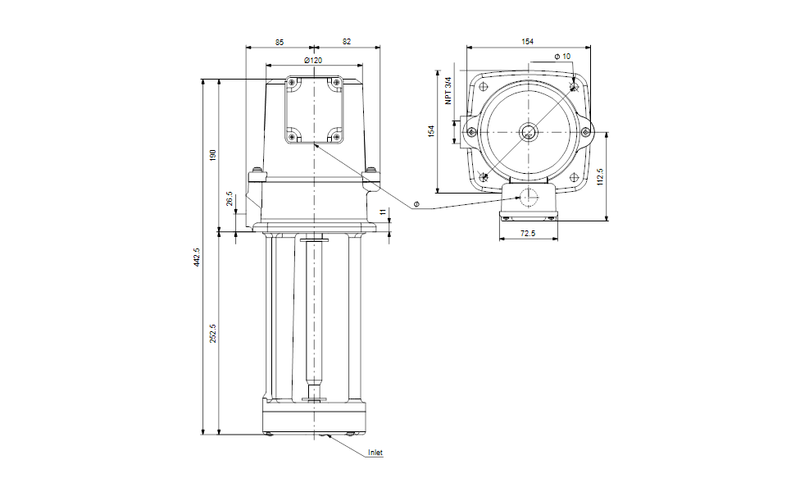

Dimensional Drawing
