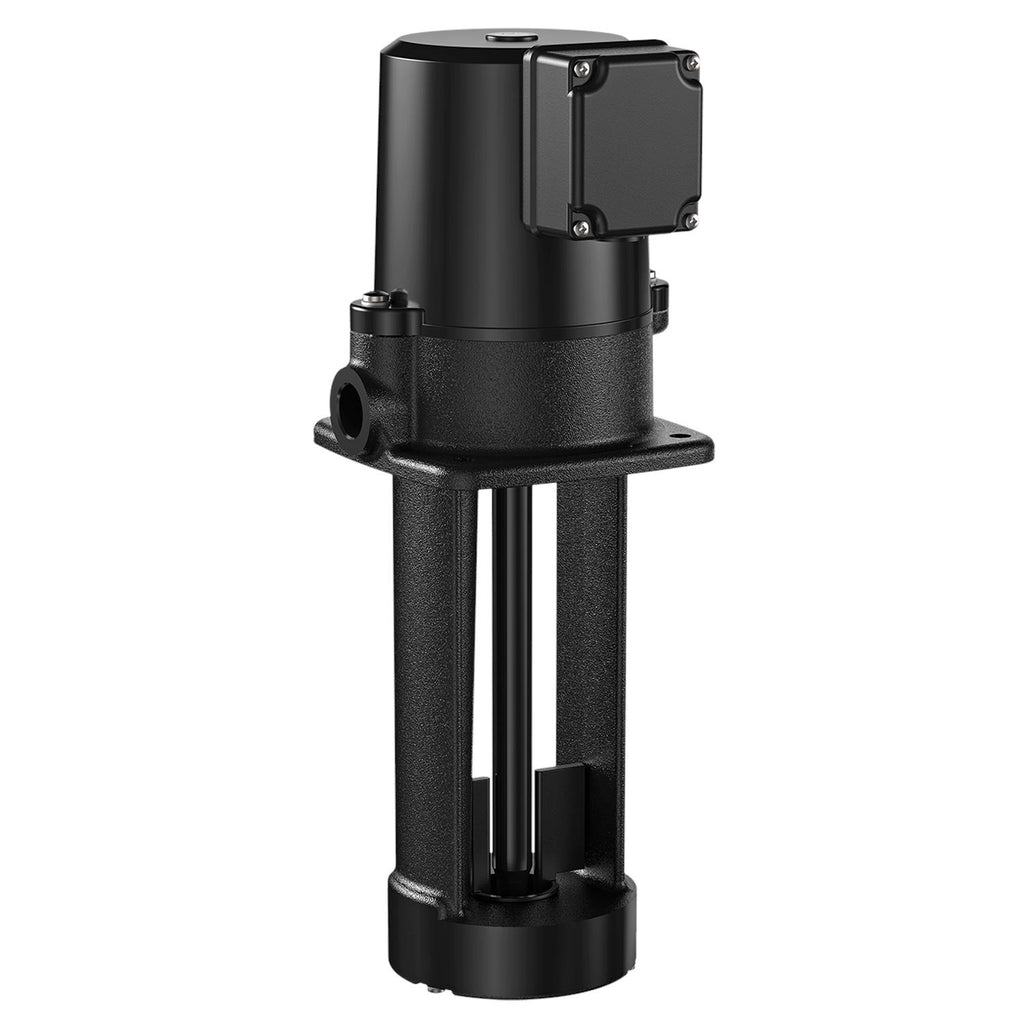

Grundfos 97770046 - MTA 90-180 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | Immersible

Save $426.76
GRUNDFOSSKU: 97770046

Price:
Sale price$481.24 Regular price$908.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97770046 - MTA 90-180 A-WB-A-B This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710624079423
Approvals CE
Approvals and markings 10.4 m
Battery back-up 10.4 m
Built-in motor protection NO
Colour 10.4 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 10.4 m
Frequency converter Not prepared for VFD
Gross weight 33.5 lb
Head max 10.4 m
Housing Cast iron
Impeller PAA GF50
Insulation class (IEC 85) F
Length 182.5 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model A
Motor 10.4 m
Motor efficiency at full load 1 0.795
Net weight 30.4 lb
Number of leads 10.4 m
Pipework connection 10.4 m
Power 1 438 W
Power input - P1 438 W
Pressure retention valve 10.4 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 3/4
Pump version A
Pumped liquid Emulsion
Rated current 1.50-1.40/0.70 A
Rated flow 25 US gpm
Rated head 21 ft
Rated speed 3436 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 10.4 m
Service factor 1.15
Starting current 6.9
Valve type 10.4 m
Version A

Motor Curves

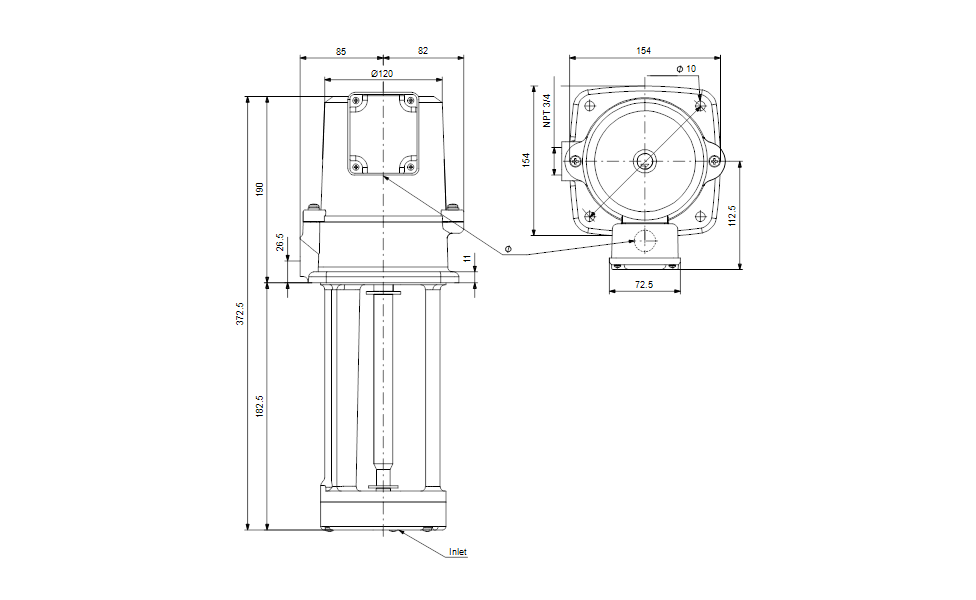

Dimensional Drawing
