Description

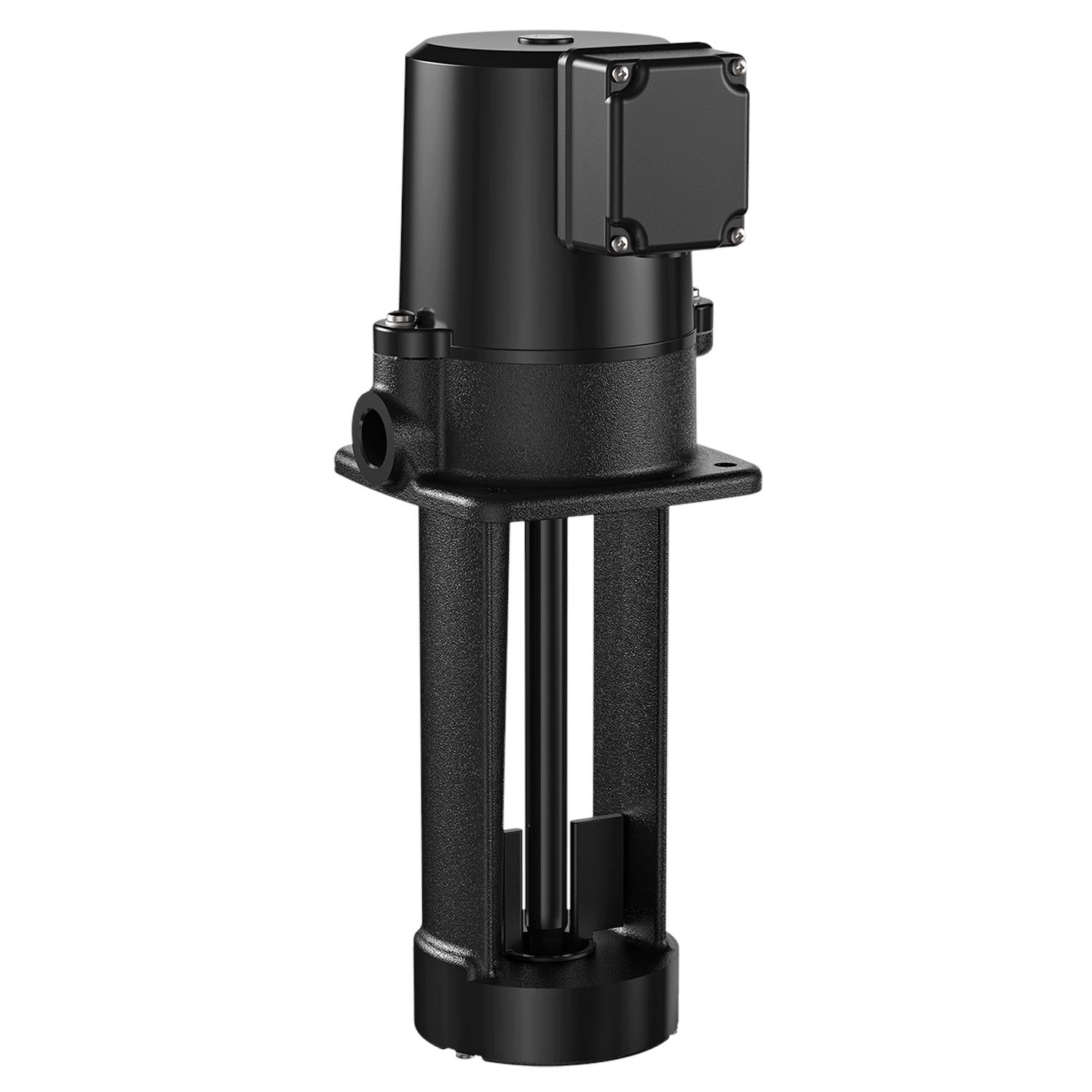

The Grundfos 97770013 (MTA 90-180 A-W-A-B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 25.4US gpm at 21.33ft. Rated 200-220DV, 3-Phase, 60 Hz. Applications include Wash and clean.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 97770013 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 200-220DV |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3471-3493rpm |
| Full Load Current | 1.63-1.51A |
| Motor Protection | N |
| Motor Efficiency | 79.5% |
| Insulation Class | F |
| Protection Class (IP) | IP54 |
| Nominal Flow | 25.4US gpm |
| Nominal Head | 21.33ft |
| Max Fluid Temperature | 140°F |
| Max Ambient Temperature | 104°F |
| Outlet Connection | Rp 3/4 |
| Impeller Material | PAA GF50 |
| Housing Material | Cast iron |
| Approvals / Certifications | CE |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-220DV, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5710624079096
- Approvals
- CE
- Approvals and markings
- 7.3 m
- Battery back-up
- 7.3 m
- Built-in motor protection
- NO
- Colour
- 7.3 m
- Connect code
- W
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP54
- Flow range
- 7.3 m
- Frequency converter
- Not prepared for VFD
- Gross weight
- 33.5 lb
- Head max
- 7.3 m
- Housing
- Cast iron
- Impeller
- PAA GF50
- Insulation class (IEC 85)
- F
- Length
- 182.5 mm
- Liquid temperature range
- 32 .. 140 °F
- Mains frequency
- 50 Hz
- Material code
- A
- Material Pricing Group
- 32
- Maximum ambient temperature
- 104 °F
- Model
- A
- Motor
- 7.3 m
- Motor efficiency at full load 1
- 0.794
- Net weight
- 30.4 lb
- Number of leads
- 7.3 m
- Pipework connection
- 7.3 m
- Power 1
- 276 W
- Power input - P1
- 276 W
- Pressure retention valve
- 7.3 m
- Product family
- MTA
- Pump housing
- Cast iron
- Pump outlet
- Rp 3/4
- Pump version
- A
- Pumped liquid
- Emulsion
- Rated current
- 1.12 A
- Rated flow
- 25.4 US gpm
- Rated head
- 21.33 ft
- Rated speed
- 2955 rpm
- Rated voltage
- 3 x 200D V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Sens.interface
- 7.3 m
- Service factor
- 1.15
- Starting current
- 4.8
- Valve type
- 7.3 m
- Version
- A
