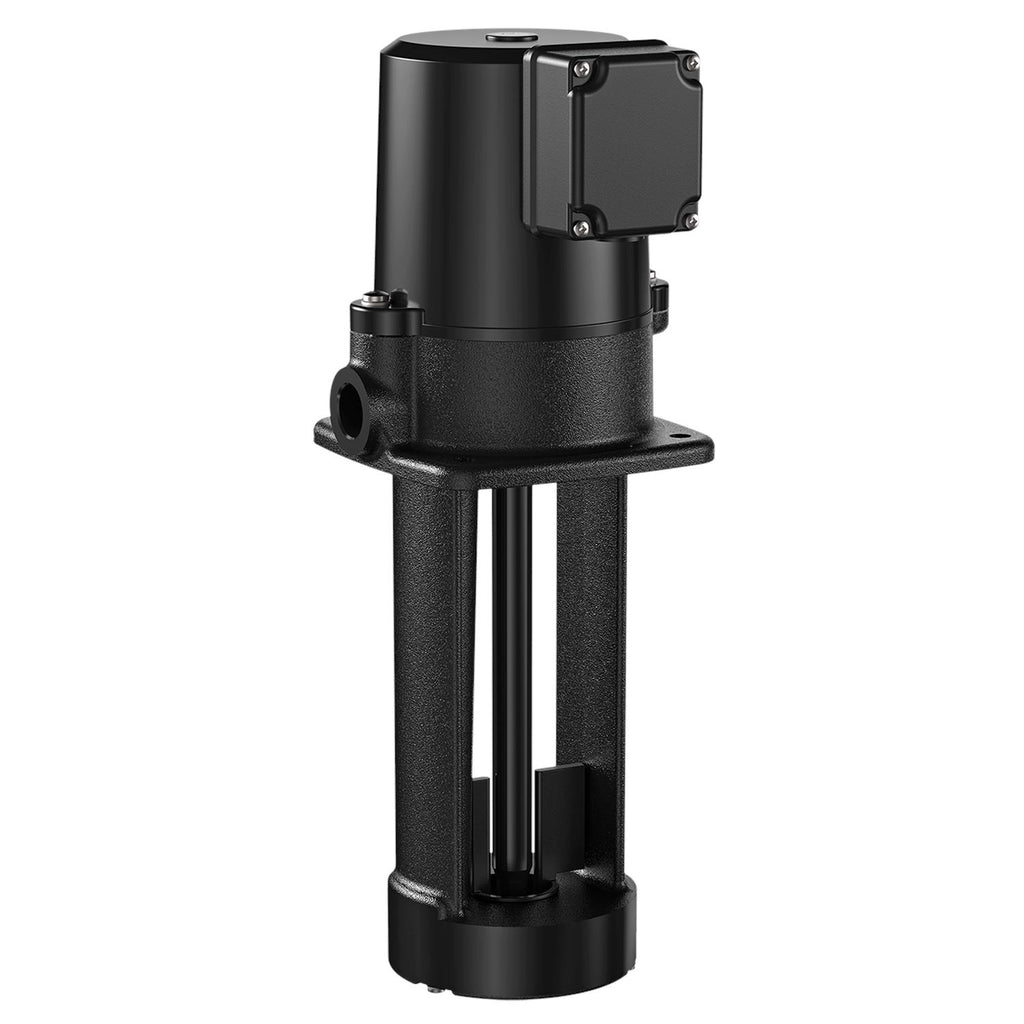

Grundfos 98477604 - MTA 70H-250 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | Immersible

GRUNDFOSSKU: 98477604

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98477604 - MTA 70H-250 A-WB-A-B This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711495752415
Approvals CE
Approvals and markings 15 m
Battery back-up 15 m
Built-in motor protection NO
Colour 15 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 15 m
Frequency converter Not prepared for VFD
Gross weight 36.4 lb
Head max 15 m
Housing Cast iron
Impeller PAA GF50
Insulation class (IEC 85) F
Length 250 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model A
Motor 15 m
Motor efficiency at full load 1 0.795
Net weight 32.6 lb
Number of leads 15 m
Pipework connection 15 m
Power 1 455 W
Power input - P1 455 W
Pressure retention valve 15 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 3/4
Pump version A
Pumped liquid Emulsion
Rated current 1.55-1.46/0.74 A
Rated flow 19 US gpm
Rated head 33.99 ft
Rated speed 3449 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 15 m
Service factor 1.15
Starting current 6.6
Valve type 15 m
Version A

Motor Curves

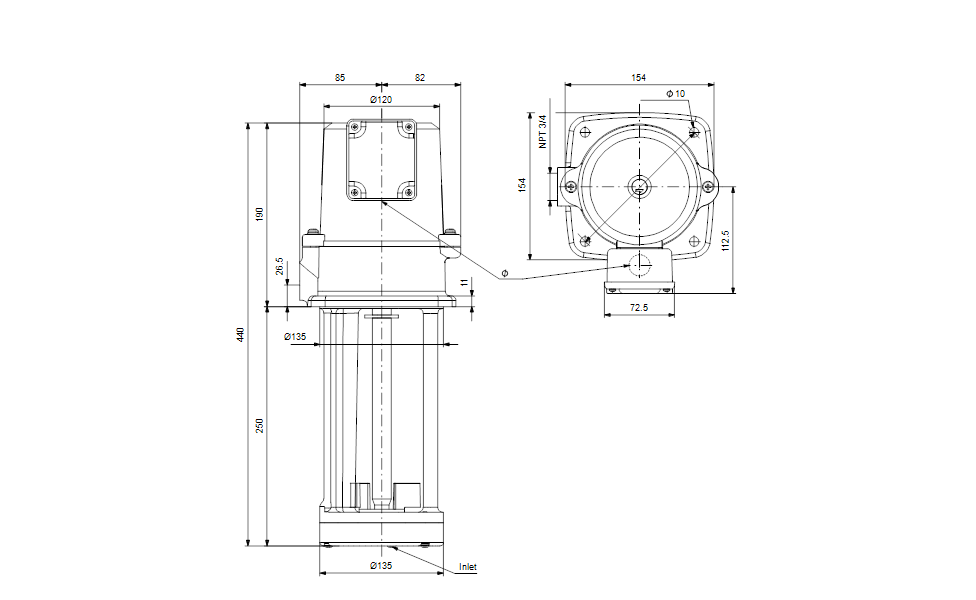

Dimensional Drawing
