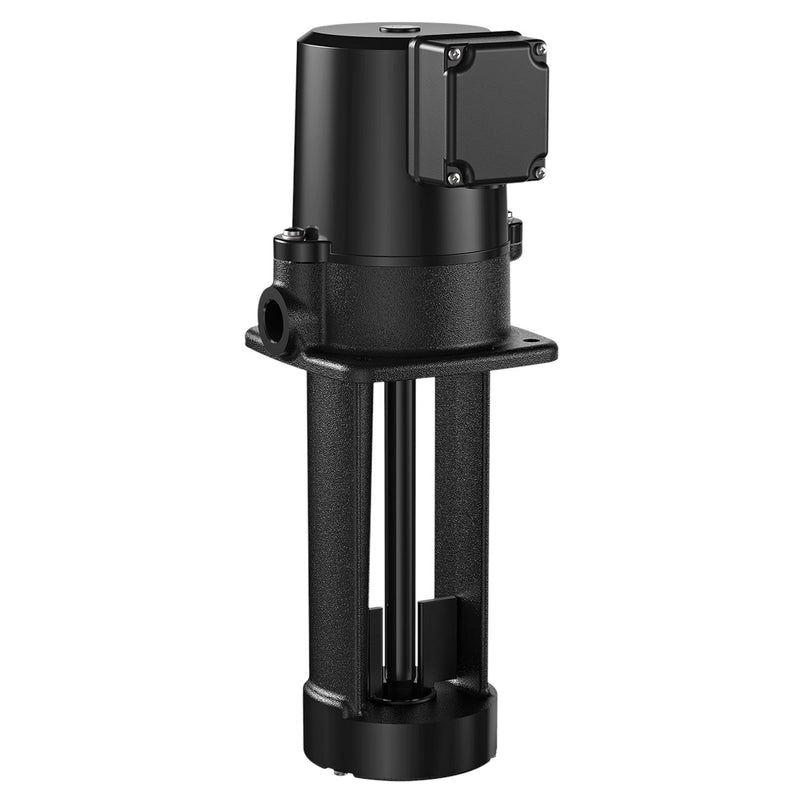

Grundfos 97770035 - MTA 60-250 A-WB-A-T | Immersible | Centrifugal

Save $402.32
GRUNDFOSSKU: 97770035

Price:
Sale price$453.68 Regular price$856.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

MTA 60-250 A-WB-A-T Low pressure immersible centrifugal pump for installation, in filtering systems or conveyer systems in the machine tool industry. The pump has the following characteristics: The pump is closed-coupled without shaft seal.
The pump is fitted with a 3-phase integrated motor.
Open impeller allows particles to pass through pump
Impeller is made of PAA GF50.
Motor stool and pump housing are made of cast iron.
The pump has no wearing parts. Immersion depth:

EAN 5710624079317
Approvals CE
Approvals and markings 10.4 m
Battery back-up 10.4 m
Built-in motor protection NO
Colour 10.4 m
Connect code WB
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP54
Flow range 10.4 m
Frequency converter Not prepared for VFD
Gross weight 12.2 kg
Head max 10.4 m
Housing Cast iron
Impeller PAA GF50
Insulation class (IEC 85) F
Length 245 mm
Liquid temperature range 0 .. 60 °C
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Maximum ambient temperature 40 °C
Maximum head 10.4 m
Model A
Motor 10.4 m
Motor efficiency at full load 1 0.787
Net weight 11.8 kg
Number of leads 10.4 m
Pipework connection 10.4 m
Power 1 315 W
Power input - P1 315 W
Pressure retention valve 10.4 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 3/4
Pump version A
Pumped liquid Emulsion
Rated current 1.11-1.06/0.54 A
Rated flow 60.6 l/min
Rated head 7.32 m
Rated speed 3452 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 20 °C
Sens.interface 10.4 m
Service factor 1.15
Starting current 7.1
Valve type 10.4 m
Version A

Motor Curves

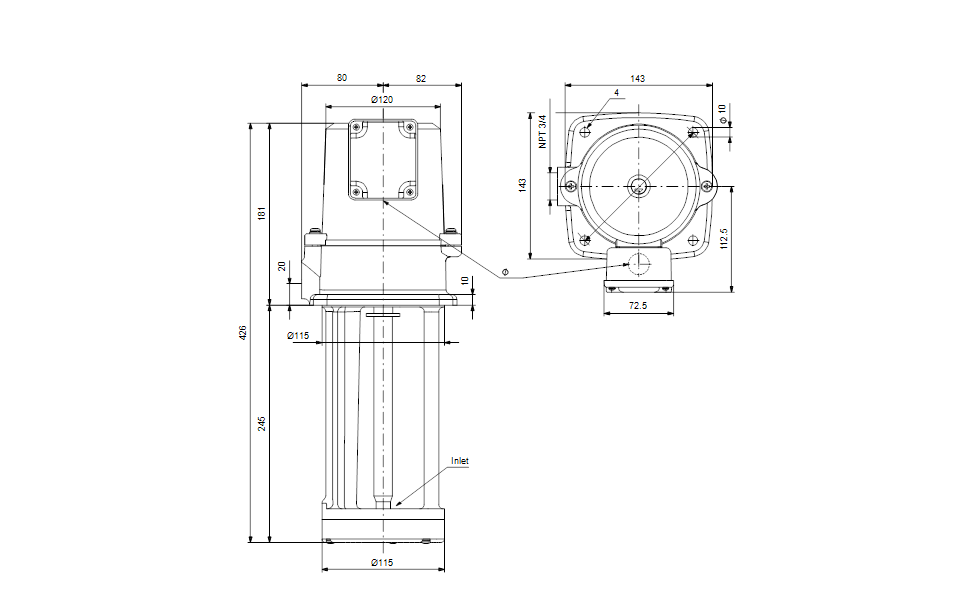

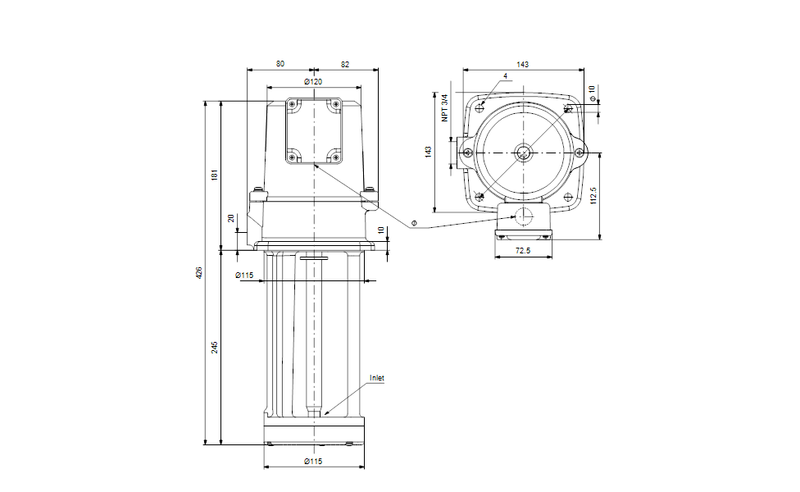

Dimensional Drawing
