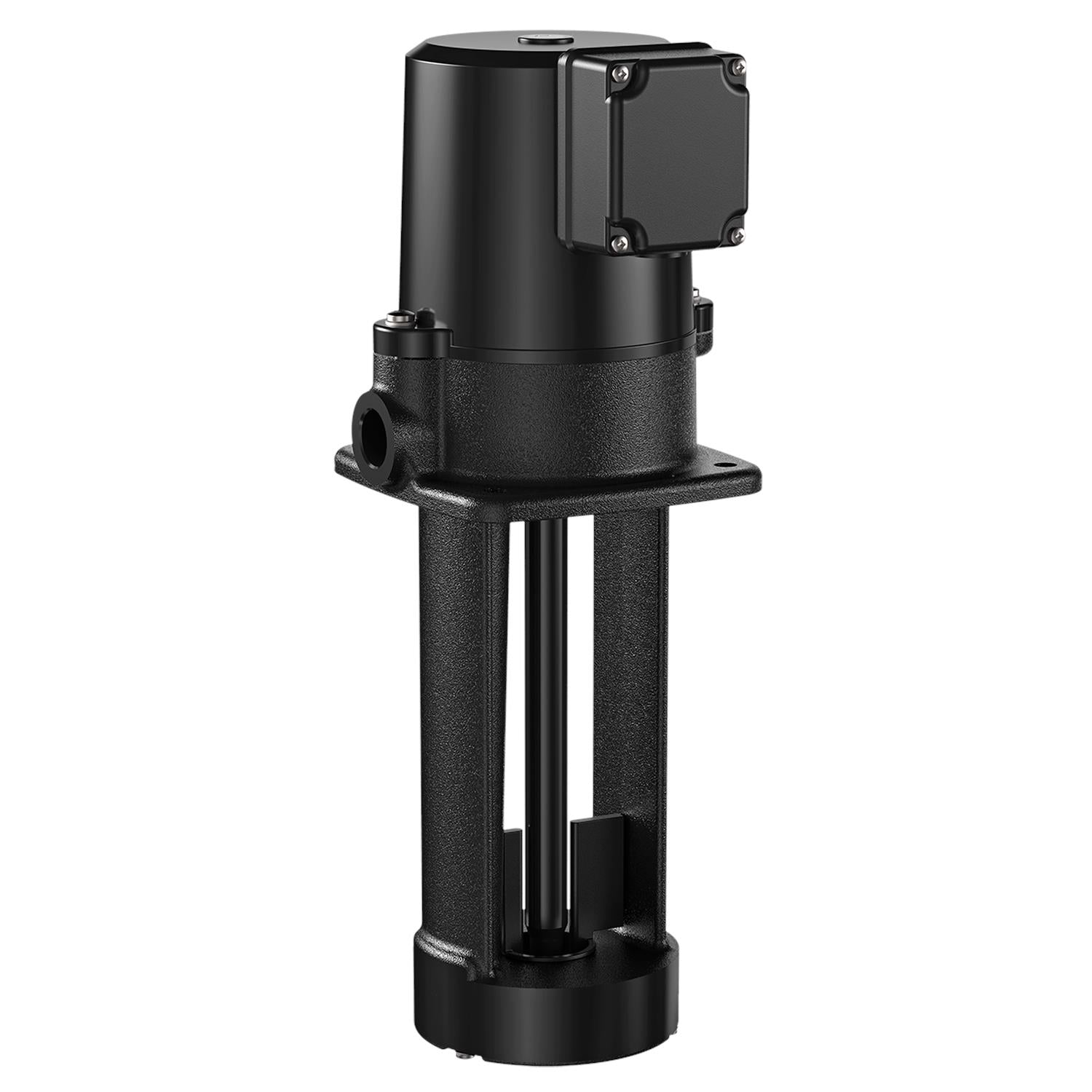

Image shown may not be actual product
Grundfos 97769972 - MTA 60-180 A-W-A-B
Roll over image to zoom in Click on image to zoom
Grundfos 97769972 - MTA 60-180 A-W-A-B
Grundfos Pumps & Systems

Grundfos 97769972 - MTA 60-180 A-W-A-B

GRUNDFOSSKU: 97769972

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MTA 60-180 A-W-A-B · Grundfos Accessory / Spare Part / Control
ACC220-240D/380-440YV3-Phase60 HzIP54PAA GF50

The Grundfos 97769972 (MTA 60-180 A-W-A-B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 15.9US gpm at 23.62ft. Rated 220-240D/380-440YV, 3-Phase, 60 Hz. Applications include Wash and clean.

Voltage
220-240D/380-440YV
Phase
3-Phase
Max Flow
15.9US gpm
Max Head
23.62ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MTA 60-180 A-W-A-B
Series: ACC
Model Code: MTA 60-180 A-W-A-B
Impeller Material: PAA GF50
Housing Material: Cast iron
Technical Specifications
Model Number 97769972
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 220-240D/380-440YV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3438-3483rpm
Full Load Current 0.99/0.63-0.57A
Motor Protection N
Motor Efficiency 78.7%
Insulation Class F
Protection Class (IP) IP54
Nominal Flow 15.9US gpm
Nominal Head 23.62ft
Max Fluid Temperature 140°F
Max Ambient Temperature 104°F
Outlet Connection Rp 1/2
Impeller Material PAA GF50
Housing Material Cast iron
Approvals / Certifications CE
Applications
Wash and clean
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-240D/380-440YV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MTA 60-180 A-W-A-B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 97769972 · MTA 60-180 A-W-A-BAuthorized Grundfos Distributor · pump-stop.com
EAN
5710624078686
Approvals
CE
Approvals and markings
7.4 m
Battery back-up
7.4 m
Built-in motor protection
NO
Colour
7.4 m
Connect code
W
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP54
Flow range
7.4 m
Frequency converter
Not prepared for VFD
Gross weight
28.7 lb
Head max
7.4 m
Housing
Cast iron
Impeller
PAA GF50
Insulation class (IEC 85)
F
Length
180.5 mm
Liquid temperature range
32 .. 140 °F
Mains frequency
50 Hz
Material code
A
Material Pricing Group
32
Maximum ambient temperature
104 °F
Model
A
Motor
7.4 m
Motor efficiency at full load 1
0.781
Net weight
25.8 lb
Number of leads
7.4 m
Pipework connection
7.4 m
Power 1
200 W
Power input - P1
200 W
Pressure retention valve
7.4 m
Product family
MTA
Pump housing
Cast iron
Pump outlet
Rp 1/2
Pump version
A
Pumped liquid
Emulsion
Rated current
0.69/0.42 A
Rated flow
15.9 US gpm
Rated head
23.62 ft
Rated speed
2932 rpm
Rated voltage
3 x 220-240D/380-415Y V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature
68 °F
Sens.interface
7.4 m
Service factor
1.15
Starting current
8.5
Valve type
7.4 m
Version
A
