Grundfos 97770061 - MTA 40H-180 A-WB-B-T | Multistage | Tank Mounted | Centrifugal | Immersible

Save $422.53
GRUNDFOSSKU: 97770061

Price:
Sale price$476.47 Regular price$899.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

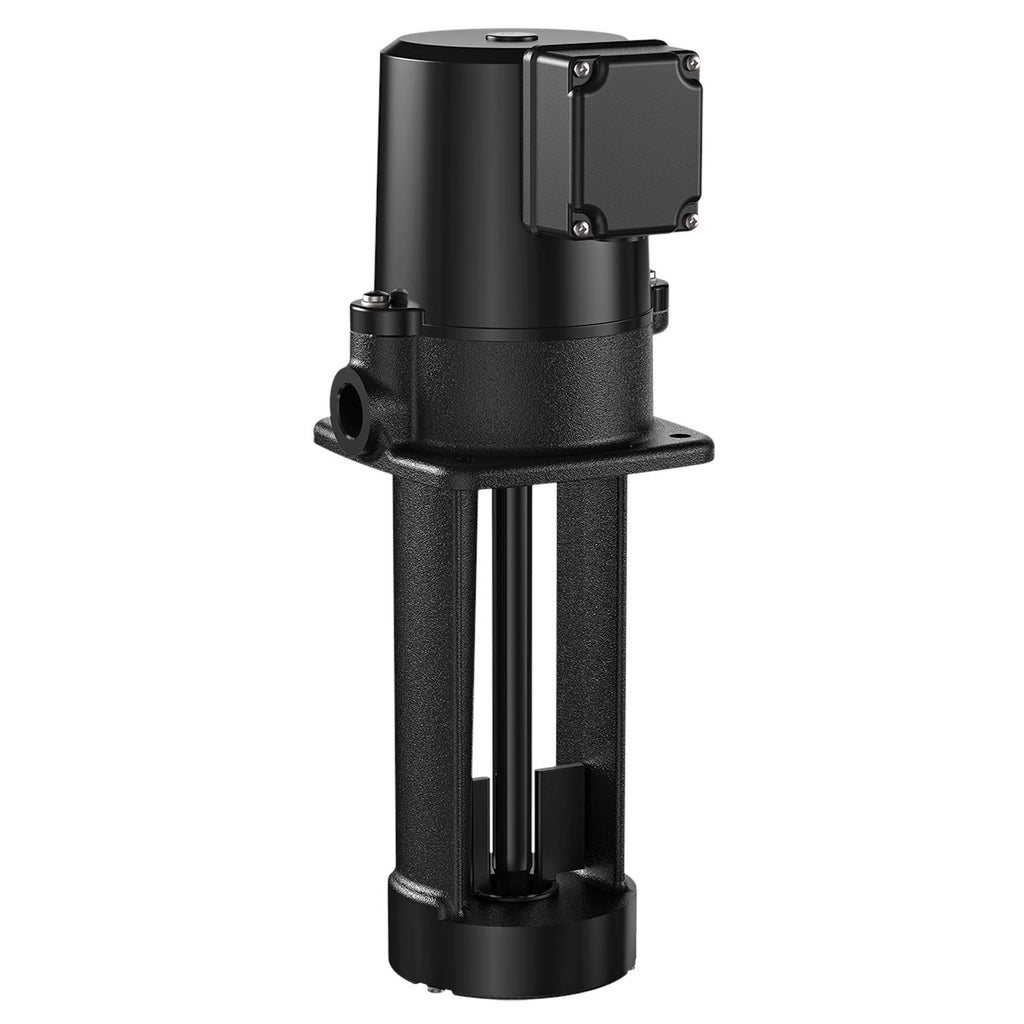

Grundfos 97770061 - MTA 40H-180 A-WB-B-T Multistage Tank Mounted Pump

The Grundfos 97770061 - MTA 40H-180 A-WB-B-T is a high-performance multistage centrifugal pump designed for various industrial applications. Engineered by Grundfos, a leader in pump technology, this tank-mounted pump offers reliable and efficient operation, making it an ideal choice for demanding environments.

With its robust construction and advanced design, the MTA 40H-180 A-WB-B-T ensures optimal performance and longevity. This immersible pump is perfect for applications requiring vertical multistage pumping solutions, providing versatility and efficiency in fluid handling.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710624079577
Approvals CE
Approvals and markings 14.7 m
Battery back-up 14.7 m
Built-in motor protection NO
Colour 14.7 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 14.7 m
Frequency converter Not prepared for VFD
Gross weight 27.8 lb
Head max 14.7 m
Housing Cast iron
Impeller Bronze
Insulation class (IEC 85) F
Length 180 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code B
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model A
Motor 14.7 m
Motor efficiency at full load 1 0.787
Net weight 25.0 lb
Number of leads 14.7 m
Pipework connection 14.7 m
Power 1 375 W
Power input - P1 375 W
Pressure retention valve 14.7 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 3/4
Pump version A
Pumped liquid Emulsion
Rated current 1.22-1.18/0.64 A
Rated flow 11 US gpm
Rated head 37.01 ft
Rated speed 3443 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 14.7 m
Service factor 1.15
Starting current 6.4
Valve type 14.7 m
Version A

Motor Curves

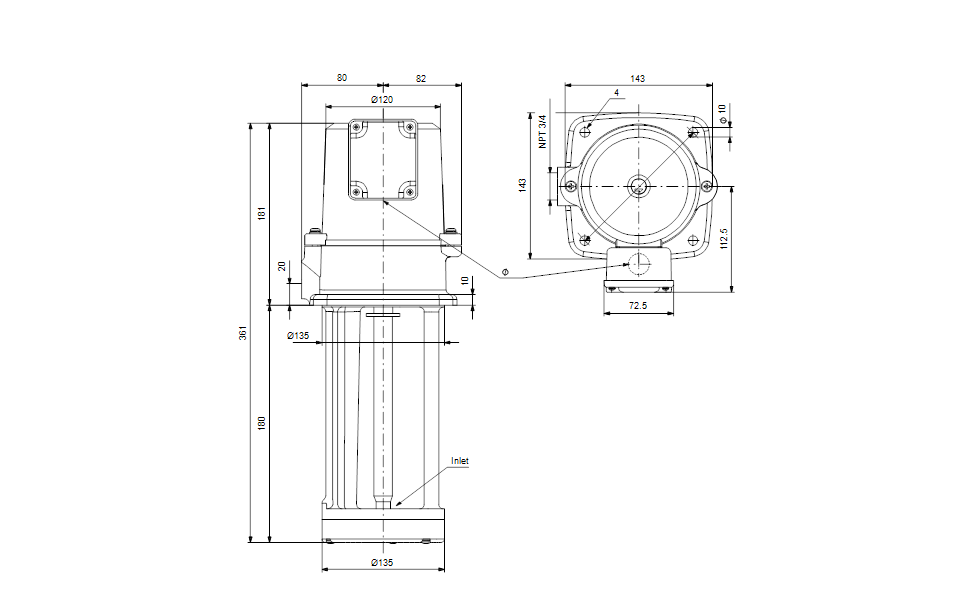

Dimensional Drawing
