Grundfos 97770060 - MTA 20H-150 A-WB-B-T | Multistage | Tank Mounted | Centrifugal | Immersible

Save $321.48
GRUNDFOSSKU: 97770060

Price:
Sale price$362.52 Regular price$684.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97770060 - MTA 20H-150 A-WB-B-T Multistage Centrifugal Pump

The Grundfos 97770060 - MTA 20H-150 A-WB-B-T is a high-performance multistage centrifugal pump designed for various industrial applications. Engineered by Grundfos, a leader in pump technology, this tank-mounted, immersible pump offers reliable operation and efficiency for your pumping needs.

With its robust construction and advanced design, the MTA 20H-150 A-WB-B-T is ideal for applications requiring consistent flow and pressure. This pump is part of the Grundfos range, which includes vertical multistage pumps, ensuring you have the right solution for your specific requirements.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the reliability and efficiency of the Grundfos MTA 20H-150 A-WB-B-T and elevate your pumping solutions today!

EAN 5710624079560
Approvals CE
Approvals and markings 8.4 m
Battery back-up 8.4 m
Built-in motor protection NO
Colour 8.4 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 8.4 m
Frequency converter Not prepared for VFD
Gross weight 16.9 lb
Head max 8.4 m
Housing Cast iron
Impeller Bronze
Insulation class (IEC 85) F
Length 150 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code B
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model A
Motor 8.4 m
Motor efficiency at full load 1 0.728
Net weight 15.0 lb
Number of leads 8.4 m
Pipework connection 8.4 m
Power 1 150 W
Power input - P1 150 W
Pressure retention valve 8.4 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 1/2
Pump version A
Pumped liquid Emulsion
Rated current 0.44/0.23 A
Rated flow 6 US gpm
Rated head 23 ft
Rated speed 3477 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 8.4 m
Service factor 1.15
Starting current 7.9
Valve type 8.4 m
Version A

Motor Curves

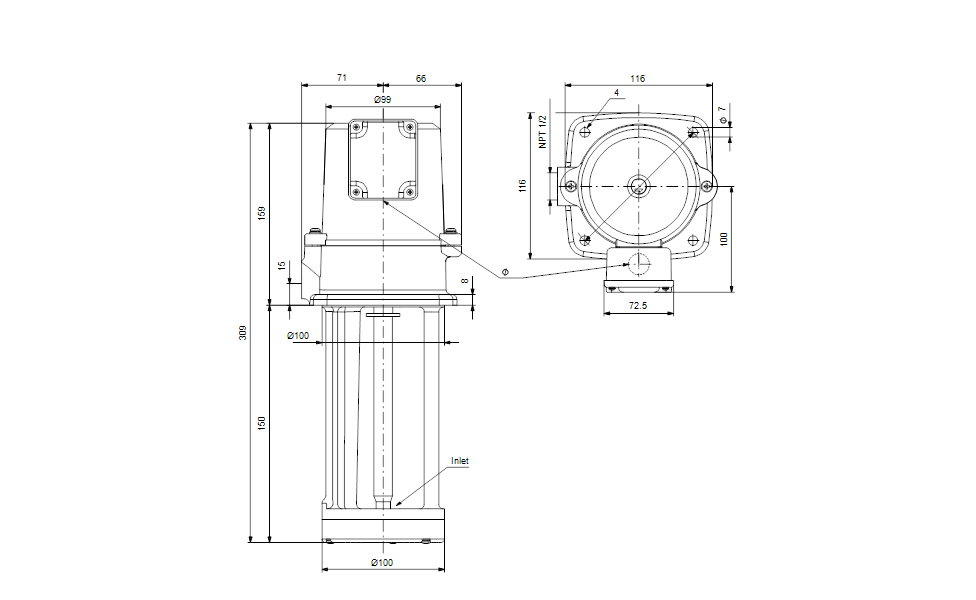

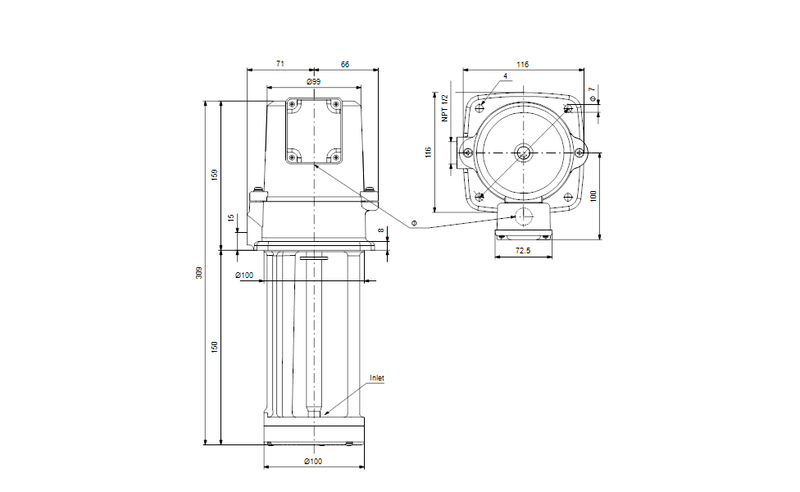

Dimensional Drawing
