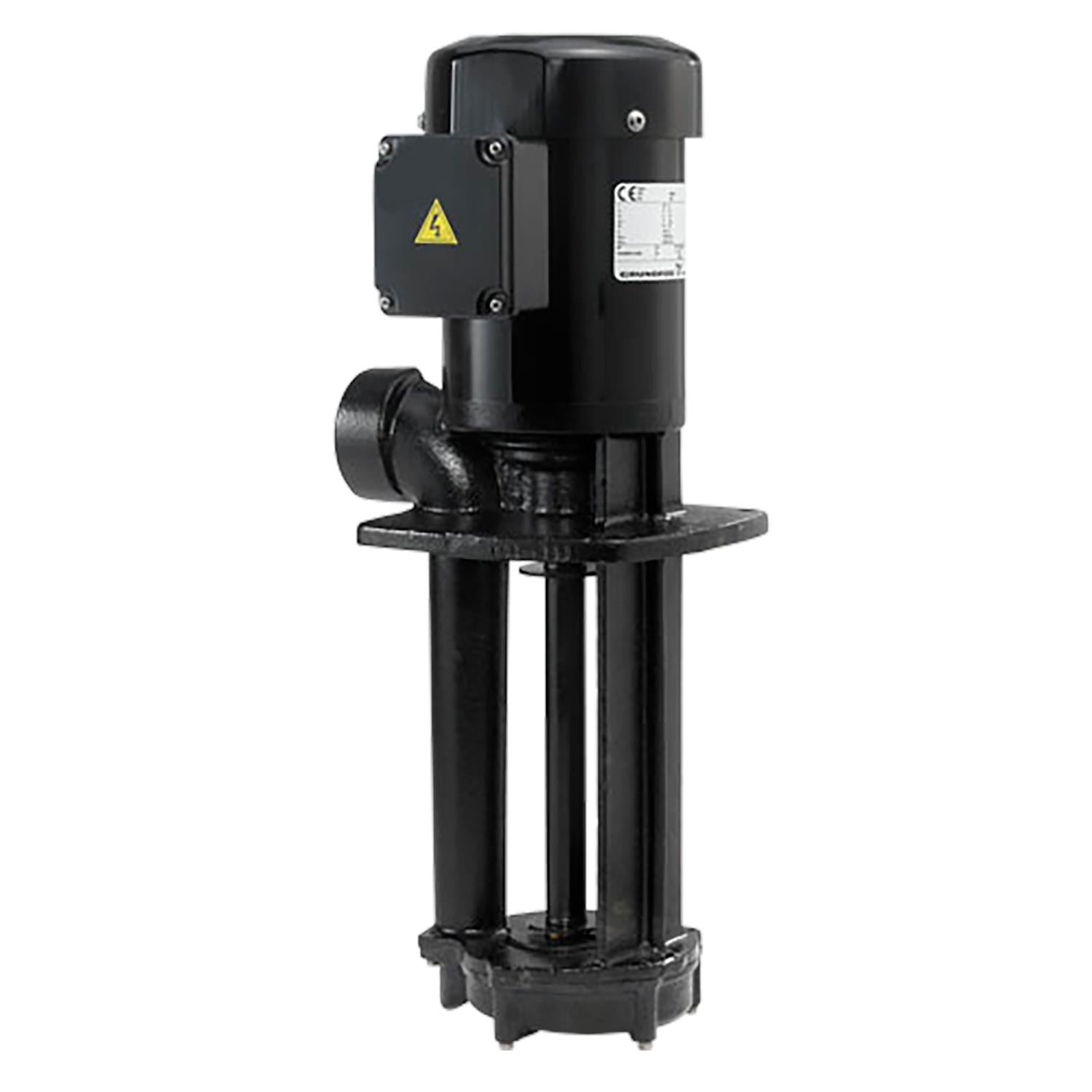

Image shown may not be actual product
Grundfos 97989298 - MTA 200-250 A-W-B-B
Roll over image to zoom in Click on image to zoom
Grundfos 97989298 - MTA 200-250 A-W-B-B
Grundfos Pumps & Systems

Grundfos 97989298 - MTA 200-250 A-W-B-B

GRUNDFOSSKU: 97989298

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MTA 200-250 A-W-B-B · Grundfos Accessory / Spare Part / Control
ACC220-240D/380-440YV3-Phase60 HzIE3 / NEMA PremiumIP54Bronze

The Grundfos 97989298 (MTA 200-250 A-W-B-B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 66US gpm at 32.48ft. Rated 220-240D/380-440YV, 3-Phase, 60 Hz. Applications include Wash and clean.

Voltage
220-240D/380-440YV
Phase
3-Phase
Max Flow
66US gpm
Max Head
32.48ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MTA 200-250 A-W-B-B
Series: ACC
Model Code: MTA 200-250 A-W-B-B
Impeller Material: Bronze
Housing Material: Cast iron
Technical Specifications
Model Number 97989298
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 220-240D/380-440YV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3449-3489rpm
Full Load Current 3.48/2.11-1.96A
Motor Protection N
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 77.0%%
Insulation Class F
Protection Class (IP) IP54
Nominal Flow 66US gpm
Nominal Head 32.48ft
Max Fluid Temperature 140°F
Max Ambient Temperature 104°F
Outlet Connection G 1 1/2
Impeller Material Bronze
Housing Material Cast iron
Approvals / Certifications CE
Applications
Wash and clean
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-240D/380-440YV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MTA 200-250 A-W-B-B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 97989298 · MTA 200-250 A-W-B-BAuthorized Grundfos Distributor · pump-stop.com
EAN
5710627482299
Approvals
CE
Approvals and markings
11.8 m
Battery back-up
11.8 m
Built-in motor protection
NO
Colour
11.8 m
Connect code
W
Density
998.2 kg/m³
Enclosure class (IEC 34-5)
IP54
Flow range
11.8 m
Frequency converter
Not prepared for VFD
Gross weight
26.9 kg
Head max
11.8 m
Housing
Cast iron
IE efficiency
IE3 80.7%
Impeller
Bronze
Insulation class (IEC 85)
F
Length
250 mm
Liquid temperature range
0 .. 60 °C
Mains frequency
50 Hz
Material code
B
Material Pricing Group
S4
Maximum ambient temperature
40 °C
Maximum head
11.8 m
Model
A
Motor
11.8 m
Motor efficiency at full load 1
0.824
Net weight
24.3 kg
Number of leads
11.8 m
Pipework connection
11.8 m
Power 1
790 W
Power input - P1
790 W
Pressure retention valve
11.8 m
Product family
MTA
Pump housing
Cast iron
Pump outlet
G 1 1/2
Pump version
A
Pumped liquid
Emulsion
Rated current
2.78/1.64 A
Rated flow
200 l/min
Rated head
8.1 m
Rated speed
2939 rpm
Rated voltage
3 x 220-240D/380-415Y V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature
20 °C
Sens.interface
11.8 m
Service factor
1.15
Starting current
5
Valve type
11.8 m
Version
A
