Grundfos 97770057 - MTA 200-250 A-WB-B-B | Multistage | Tank Mounted | Centrifugal | Immersible

Save $803.70
GRUNDFOSSKU: 97770057

Price:
Sale price$906.30 Regular price$1,710.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

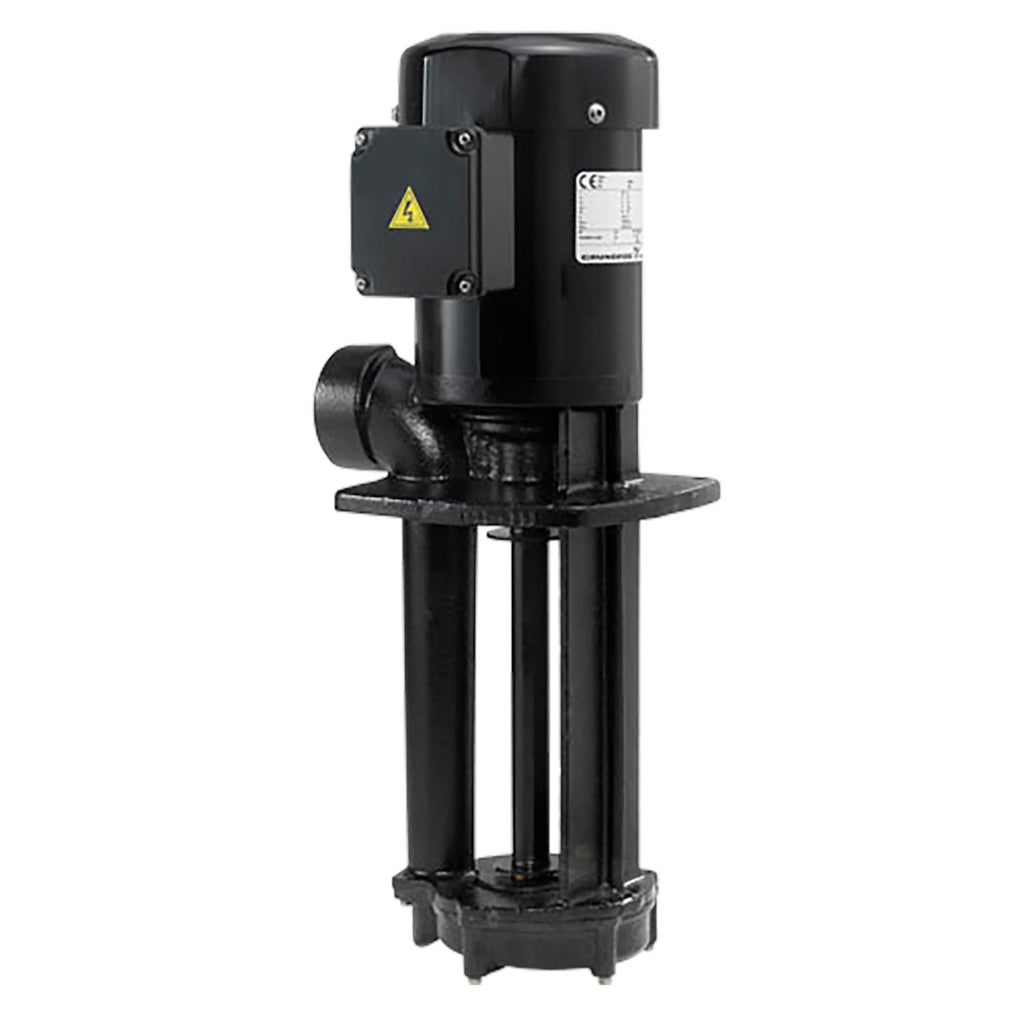

Grundfos 97770057 - MTA 200-250 A-WB-B-B Multistage Centrifugal Pump

The Grundfos 97770057 - MTA 200-250 A-WB-B-B is a high-performance multistage centrifugal pump designed for various industrial applications. Engineered by Grundfos, a leader in pump technology, this tank-mounted, immersible pump offers exceptional reliability and efficiency.

Ideal for vertical multistage pumping needs, the MTA series is perfect for applications requiring consistent pressure and flow. Its robust construction ensures durability, making it suitable for demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5710624079539
Approvals CE
Approvals and markings 16.2 m
Battery back-up 16.2 m
Built-in motor protection NO
Colour 16.2 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 16.2 m
Frequency converter Not prepared for VFD
Gross weight 59.3 lb
Head max 16.2 m
Housing Cast iron
IE efficiency IE3 77.0%
Impeller Bronze
Insulation class (IEC 85) F
Length 250 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code B
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model A
Motor 16.2 m
Motor efficiency at full load 1 0.833
Net weight 53.7 lb
Number of leads 16.2 m
Pipework connection 16.2 m
Power 1 1240 W
Power input - P1 1240 W
Pressure retention valve 16.2 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 1 1/2
Pump version A
Pumped liquid Emulsion
Rated current 3.89-3.68/1.89 A
Rated flow 66 US gpm
Rated head 31.99 ft
Rated speed 3444 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 16.2 m
Service factor 1.15
Starting current 8
Valve type 16.2 m
Version A

Motor Curves

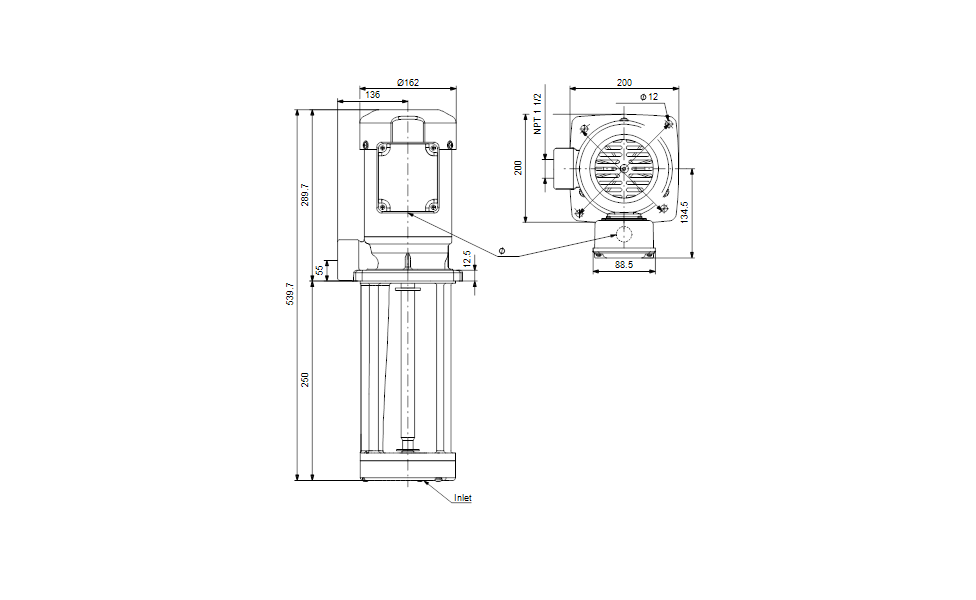

Dimensional Drawing
