Grundfos 97770055 - MTA 120-280 A-WB-A-B | Immersible | Centrifugal

Save $542.38
GRUNDFOSSKU: 97770055

Price:
Sale price$611.62 Regular price$1,154.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

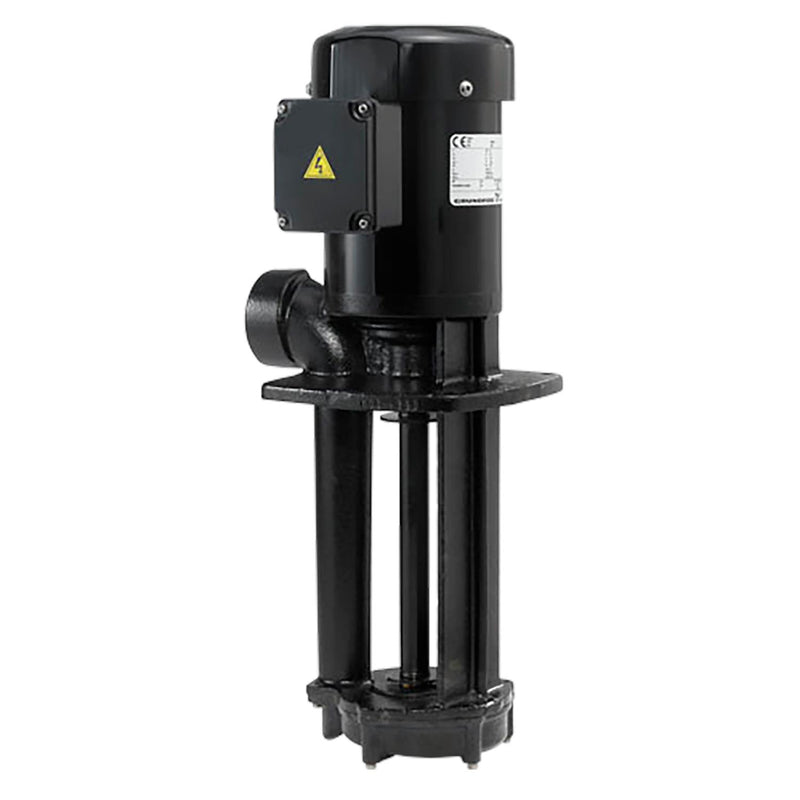

MTA 120-280 A-WB-A-B Low pressure immersible centrifugal pump for installation, in filtering systems or conveyer systems in the machine tool industry. The pump has the following characteristics: The pump is closed-coupled without shaft seal.
The pump is fitted with a 3-phase integrated motor.
Open impeller allows particles to pass through pump
Impeller is made of PAA GF50.
Motor stool and pump housing are made of cast iron.
The pump has no wearing parts. Immersion depth:

EAN 5710624079515
Approvals CE
Approvals and markings 13.1 m
Battery back-up 13.1 m
Built-in motor protection NO
Colour 13.1 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 13.1 m
Frequency converter Not prepared for VFD
Gross weight 43.2 lb
Head max 13.1 m
Housing Cast iron
Impeller PAA GF50
Insulation class (IEC 85) F
Length 283 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model B
Motor 13.1 m
Motor efficiency at full load 1 0.784
Net weight 38.7 lb
Number of leads 13.1 m
Pipework connection 13.1 m
Power 1 700 W
Power input - P1 700 W
Pressure retention valve 13.1 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 1 1/4
Pump version A
Pumped liquid Emulsion
Rated current 2.16-2.13/1.07 A
Rated flow 32 US gpm
Rated head 31.99 ft
Rated speed 3445 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 13.1 m
Service factor 1.15
Starting current 6.4
Valve type 13.1 m
Version A

Motor Curves

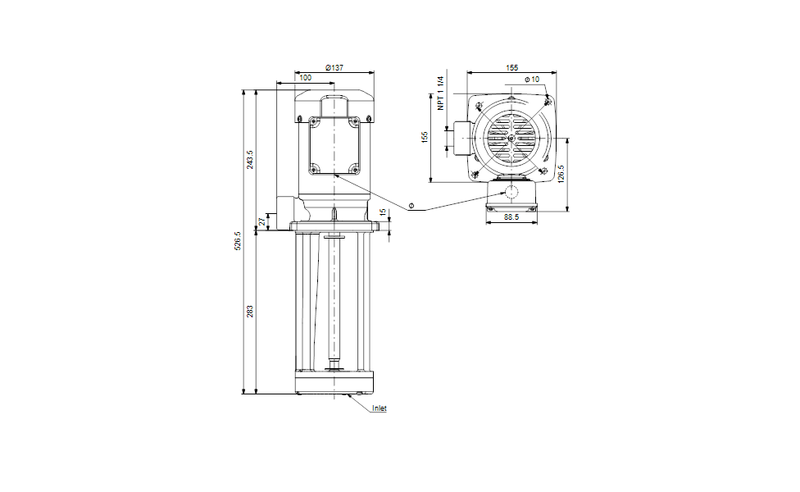

Dimensional Drawing
