Description

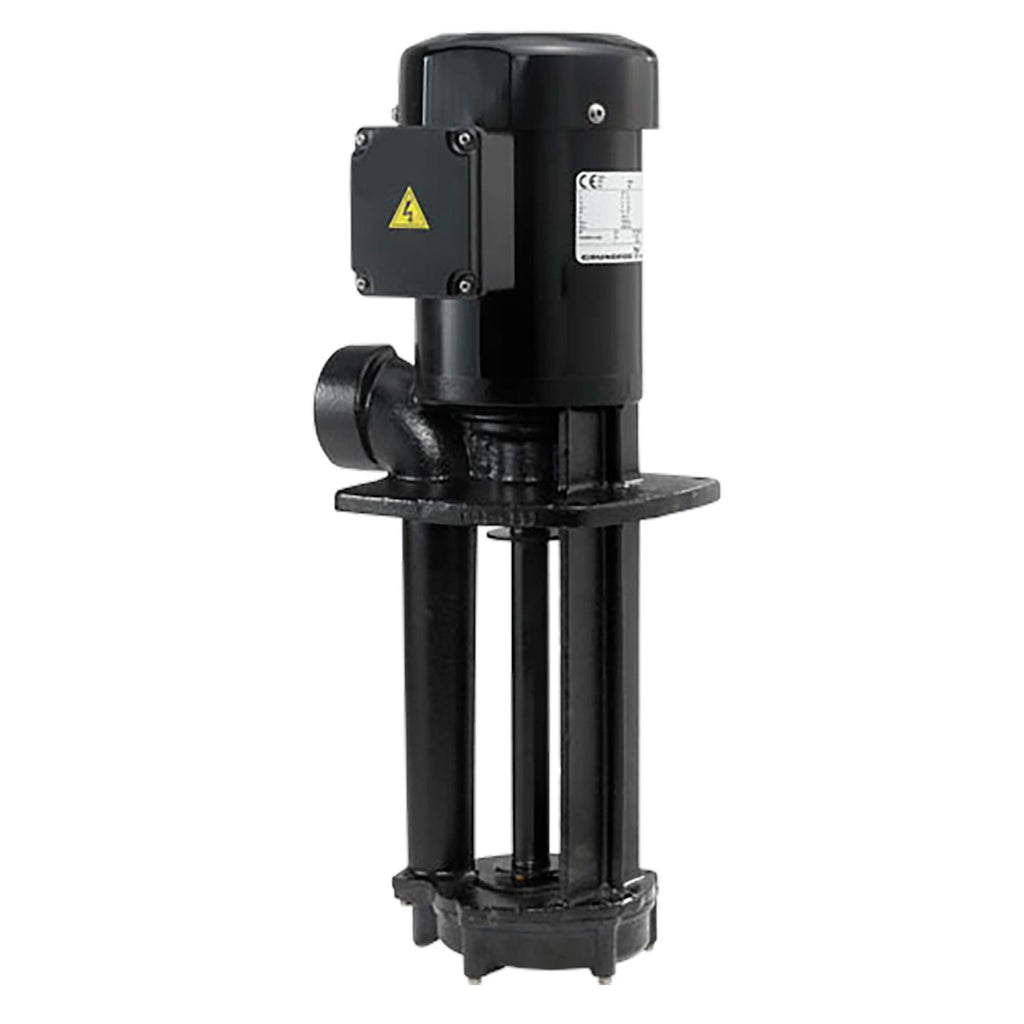

Grundfos 97770051 - MTA 120-280 A-WB-A-T Multistage Centrifugal Pump

The Grundfos 97770051 - MTA 120-280 A-WB-A-T is a high-performance multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this tank-mounted, immersible pump ensures efficient fluid transfer and reliable operation in demanding environments.

Key features of the MTA 120-280 A-WB-A-T include:

  • Multistage design for enhanced pressure capabilities
  • Vertical configuration for space-saving installation
  • Durable construction suitable for various industrial applications

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710624079478
Approvals CE
Approvals and markings 13.3 m
Battery back-up 13.3 m
Built-in motor protection NO
Colour 13.3 m
Connect code WB
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flow range 13.3 m
Frequency converter Not prepared for VFD
Gross weight 42.7 lb
Head max 13.3 m
Housing Cast iron
Impeller PAA GF50
Insulation class (IEC 85) F
Length 280 mm
Liquid temperature range 32 .. 140 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Maximum ambient temperature 104 °F
Model B
Motor 13.3 m
Motor efficiency at full load 1 0.784
Net weight 38.3 lb
Number of leads 13.3 m
Pipework connection 13.3 m
Power 1 700 W
Power input - P1 700 W
Pressure retention valve 13.3 m
Product family MTA
Pump housing Cast iron
Pump outlet NPT 1 1/4
Pump version A
Pumped liquid Emulsion
Rated current 2.16-2.13/1.07 A
Rated flow 32 US gpm
Rated head 31.99 ft
Rated speed 3445 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Sens.interface 13.3 m
Service factor 1.15
Starting current 6.4
Valve type 13.3 m
Version A

Motor Curves

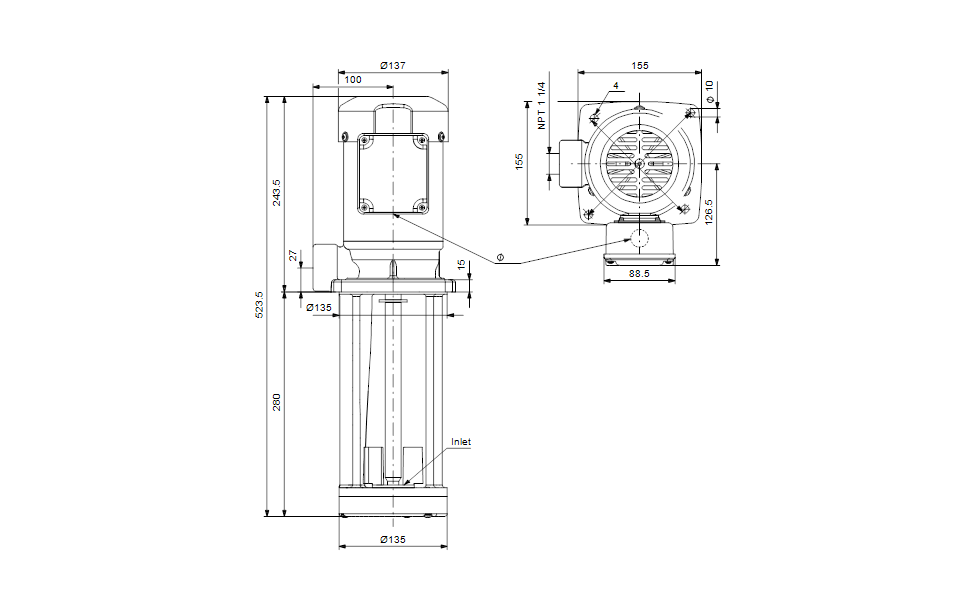

Dimensional Drawing
