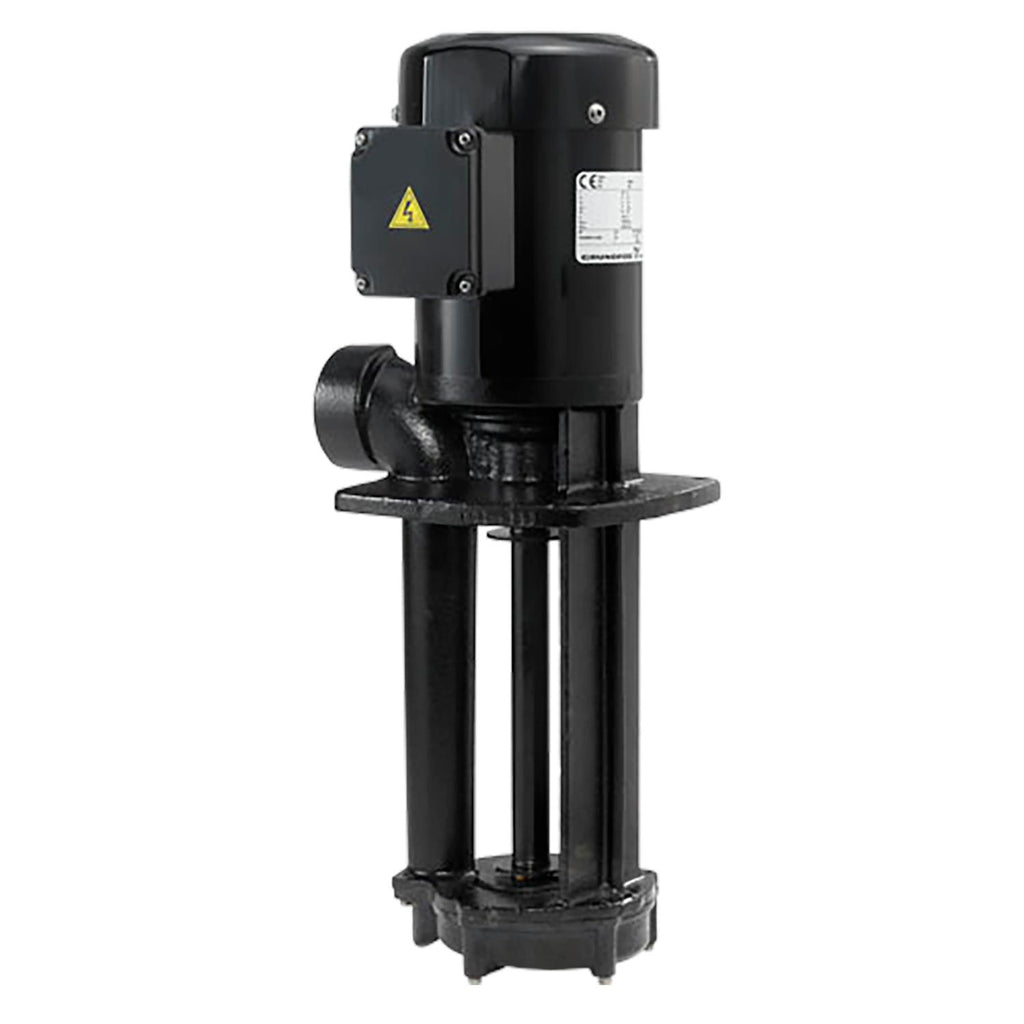

Grundfos 97770054 - MTA 120-250 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | Immersible
Grundfos 97770054 - MTA 120-250 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | Immersible
Roll over image to zoom in Click on image to zoom
Grundfos 97770054 - MTA 120-250 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | ImmersibleGrundfos 97770054 - MTA 120-250 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | Immersible
Grundfos Pumps & Systems

Grundfos 97770054 - MTA 120-250 A-WB-A-B | Multistage | Tank Mounted | Centrifugal | Immersible

GrundfosSKU: 97770054
Price:
$1,223.00

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MTA 120-250 A-WB-A-B · Grundfos Accessory / Spare Part / Control
ACC208-230YY/460YV3-Phase60 HzIP54PAA GF50

The Grundfos 97770054 (MTA 120-250 A-WB-A-B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 32US gpm at 31.99ft. Rated 208-230YY/460YV, 3-Phase, 60 Hz. Applications include Wash and clean.

Voltage
208-230YY/460YV
Phase
3-Phase
Max Flow
32US gpm
Max Head
31.99ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MTA 120-250 A-WB-A-B
Series: ACC
Model Code: MTA 120-250 A-WB-A-B
Impeller Material: PAA GF50
Housing Material: Cast iron
Technical Specifications
Model Number 97770054
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 208-230YY/460YV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3445-3472rpm
Full Load Current 2.16-2.13/1.07A
Motor Protection N
Motor Efficiency 78.4%
Insulation Class F
Protection Class (IP) IP54
Nominal Flow 32US gpm
Nominal Head 31.99ft
Max Fluid Temperature 140°F
Max Ambient Temperature 104°F
Outlet Connection NPT 1 1/4
Impeller Material PAA GF50
Housing Material Cast iron
Approvals / Certifications CE
Applications
Wash and clean
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MTA 120-250 A-WB-A-B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 97770054 · MTA 120-250 A-WB-A-BAuthorized Grundfos Distributor · pump-stop.com
EAN
5710624079508
Approvals
CE
Approvals and markings
13.1 m
Battery back-up
13.1 m
Built-in motor protection
NO
Colour
13.1 m
Connect code
WB
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP54
Flow range
13.1 m
Frequency converter
Not prepared for VFD
Gross weight
42.3 lb
Head max
13.1 m
Housing
Cast iron
Impeller
PAA GF50
Insulation class (IEC 85)
F

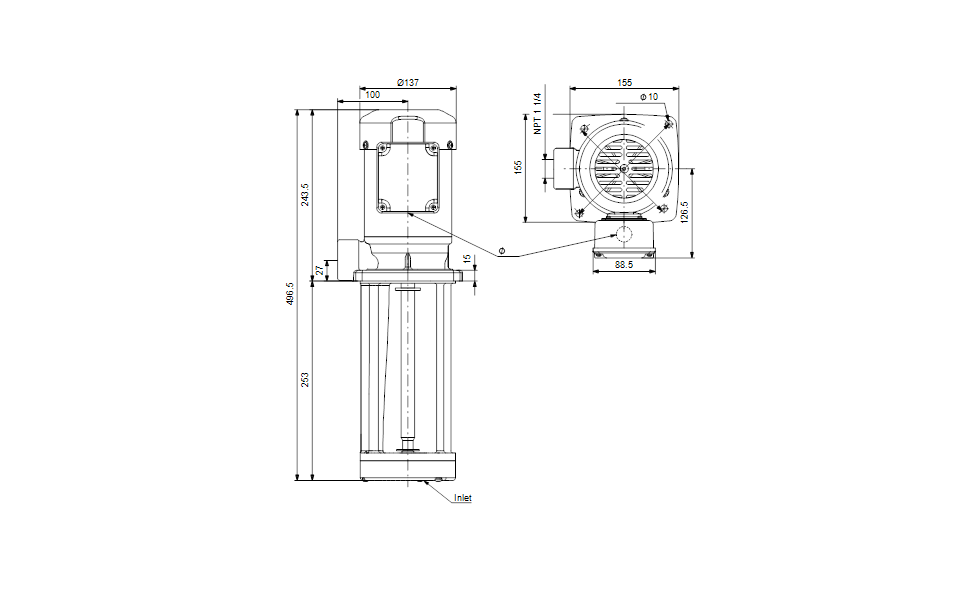

Length
253 mm
Liquid temperature range
32 .. 140 °F
Mains frequency
60 Hz
Material code
A
Material Pricing Group
32
Maximum ambient temperature
104 °F
Model
B
Motor
13.1 m
Motor efficiency at full load 1
0.784
Net weight
37.7 lb
Number of leads
13.1 m
Pipework connection
13.1 m
Power 1
700 W
Power input - P1
700 W
Pressure retention valve
13.1 m
Product family
MTA
Pump housing
Cast iron
Pump outlet
NPT 1 1/4
Pump version
A
Pumped liquid
Emulsion
Rated current
2.16-2.13/1.07 A
Rated flow
32 US gpm
Rated head
31.99 ft
Rated speed
3445 rpm
Rated voltage
3 x 208-230YY/460Y V
Real Time
1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Selected liquid temperature
68 °F
Sens.interface
13.1 m
Service factor
1.15
Starting current
6.4
Valve type
13.1 m
Version
A
