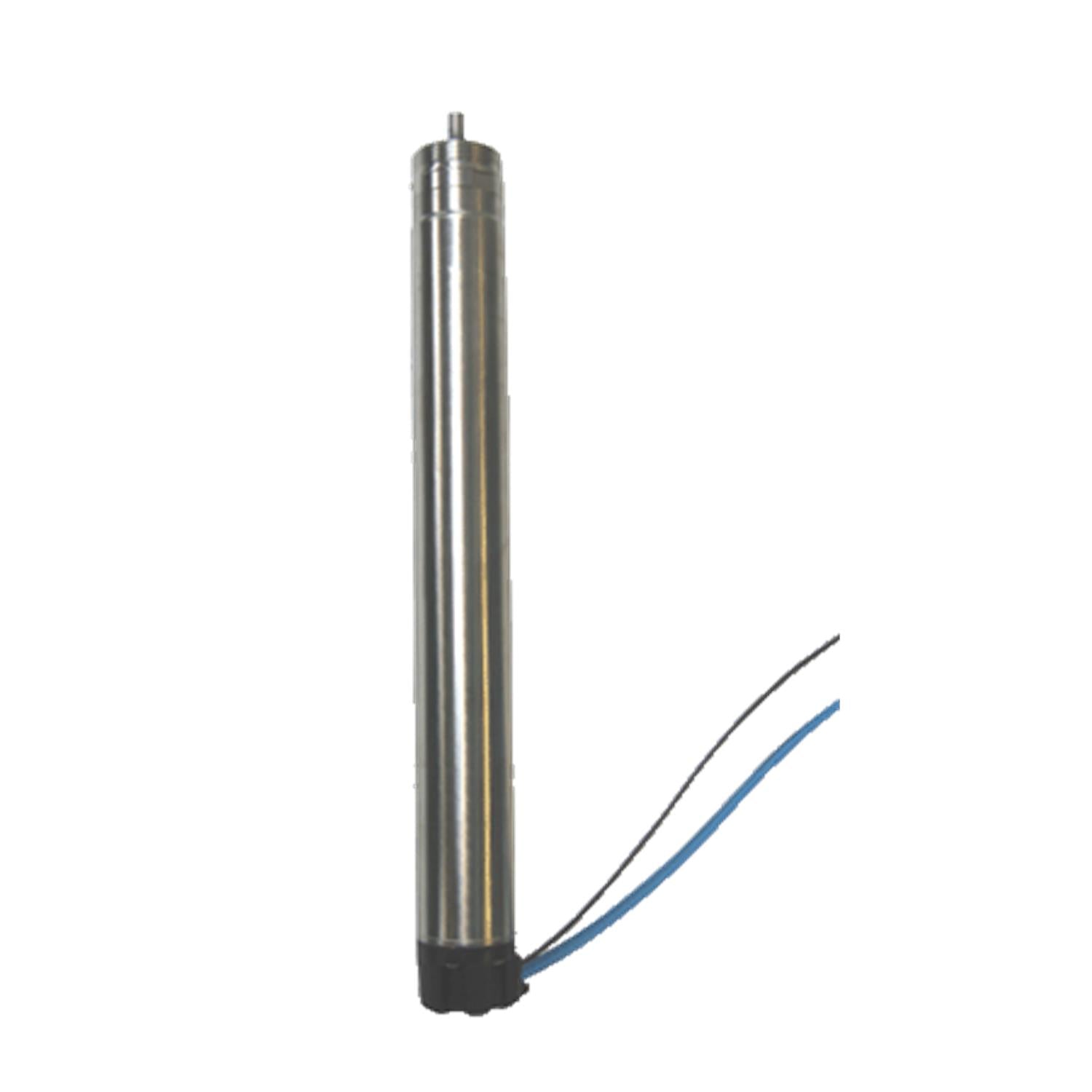

![Grundfos 96160552 - MSE 3]()
![Grundfos 96160552 - MSE 3]()
Description
MSE 3 | The motor is a one-phase motor of the permanentmagnet rotor type ensuring optimum efficiencywithin a wide load range. The motor is fitted with a replaceablecable plug.
EAN
5700398687993
Material Pricing Group
49
Power factor 1
1
Max liquid t at 0.15 m/sec
95 °F
Rated voltage
1 x 100-115 V
Thermal protec
internal
Power input - P1
1.05 kW
Moment of inertia
25630000 lb ft²
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
7.72 lb
Rated speed
10700 rpm
Axial load max
100 kg
Start. method
direct-on-line
Gross weight
9.26 lb
Rated power - P2
0.7 kW
Enclosure class (IEC 34-5)
IP68
Rated current
12.3 A
Motor type
MSE3
Model
D
Motor
Stainless steel
Power 1
1.05 kW
Approvals on motor nameplate
UL
Type
MSE3
Maximum ambient pressure
15 bar
Motor Curves
