Grundfos 98735578 - MS6000WT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 98735578

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98735578 - MS6000WT40 is a submersible motor intended for MS6000 series pump applications, used by technicians and installers replacing motors in pumps that require a canned, 3-phase design.

Key features

  • Three-phase canned-type motor with sand shield for protection in particulate environments
  • Listed for MS6000 series and related Grundfos controls & accessories compatibility
  • Liquid-lubricated bearings and pressure-equalizing diaphragm for extended operational reliability

Applications

Suitable for submersible pump systems in municipal, agricultural irrigation, well and dewatering, and general industrial fluid-handling installations where a robust 3-phase motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98735578

EAN 5712600690486
Applications Motors
Axial load max 27 kN
Breakdown torque 230-260-290 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 140-160-180 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.261 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 157.0 lb
Power factor 1 0.87-0.85-0.82
Product family MS6000
Rated current 58.0-55.5-55.0 A
Rated full-load torque 1 61.22 ft lb
Rated power - P2 26 kW
Rated speed 2850-2870-2880 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor CER/CARNBR
Start. method direct-on-line
Starting current 480-530-560 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.463 ohm
Windings Enamelled

Motor Curves

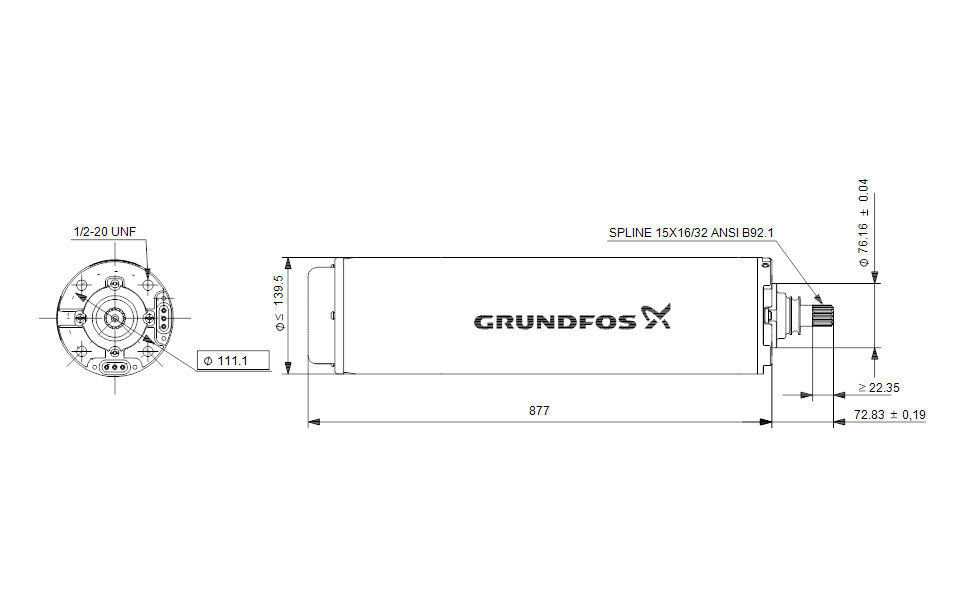

Dimensional Drawing

DWiring Diagram
