Grundfos 98735543 - MS6000WT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 98735543

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98735543 - MS6000WT40 Submersible Motor is a high-efficiency, canned 3-phase motor designed for use in submersible pump systems and controls, suited for service technicians and system integrators.

Key features

  • Canned-type 3-phase motor with sand shield for extended service life
  • Tagged for Grundfos Controls & Accessories and MS6000 series compatibility
  • Liquid-lubricated bearings and pressure-equalizing diaphragm provide reliable operation and reduced maintenance

Applications

Designed for submersible pump applications in water and wastewater systems, control panels, and OEM pump assemblies where rugged, continuous-duty motors are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98735543

EAN 5712600689985
Applications Motors
Axial load max 27 kN
Breakdown torque 240-280-310 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 150-170-190 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.198 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 128.0 lb
Power factor 1 0.85-0.82-0.79
Product family MS6000
Rated current 42.0-41.0-41.5 A
Rated full-load torque 1 43.15 ft lb
Rated power - P2 18.5 kW
Rated speed 2860-2880-2890 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor CER/CARNBR
Start. method direct-on-line
Starting current 510-560-580 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.620 ohm
Windings Enamelled

Motor Curves

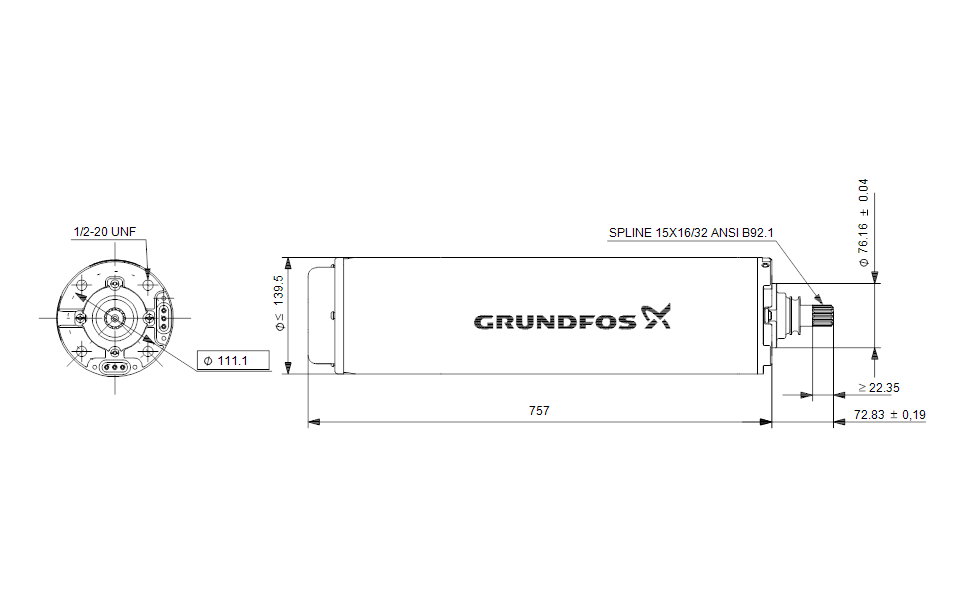

Dimensional Drawing

DWiring Diagram
