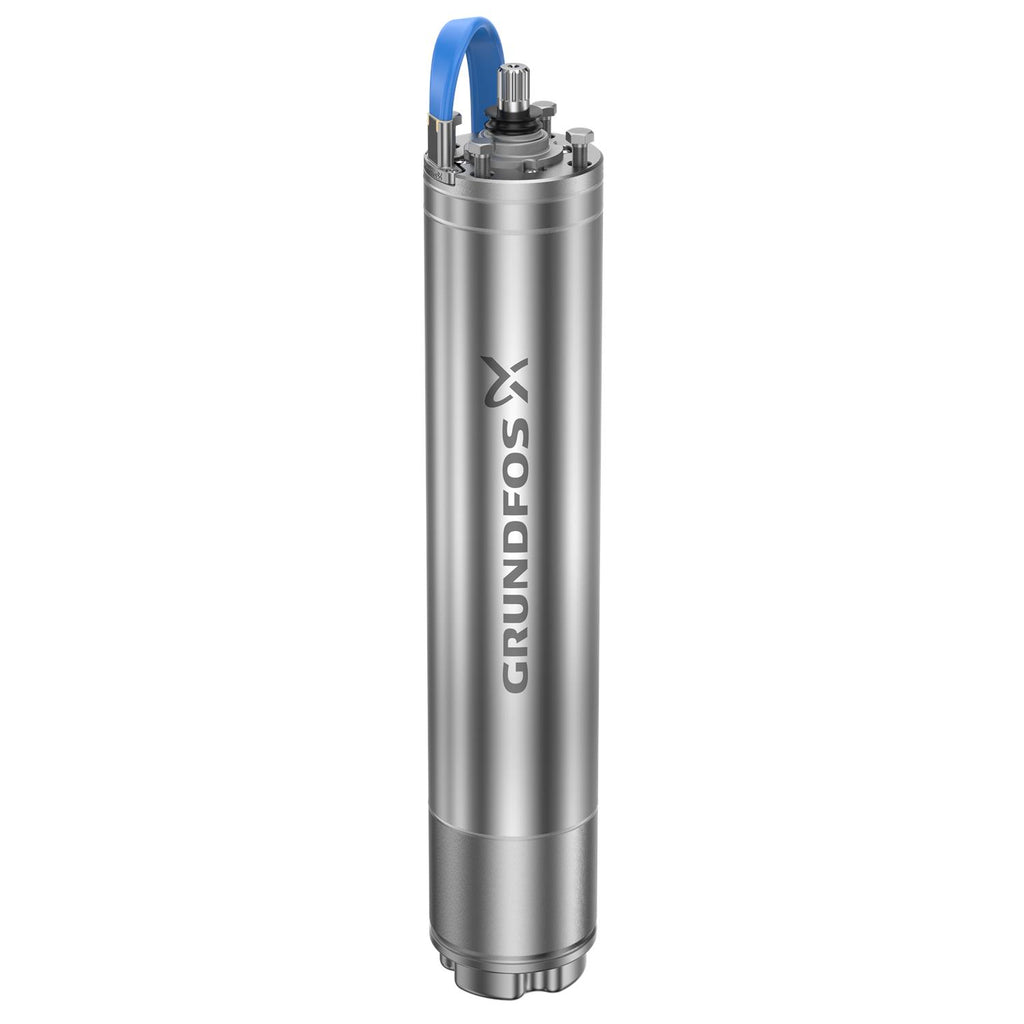

Grundfos 98710880 - MS6000RESWT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 98710880

Price:
Sale price$6,365.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98710880 - MS6000RESWT40 is a high-efficiency submersible motor designed for industrial pumping systems, offering reliable performance where Grundfos equipment is specified by professionals and service technicians.

Key features

  • Manufactured by Grundfos for use in industrial and commercial pump packages
  • Compatible with MS and MS6000 control platforms and pump motor assemblies
  • High-efficiency design for reduced energy use and dependable operation in submersible applications

Applications

Suitable for wastewater, sewage, dewatering, and other submerged pump installations where an MS6000-series motor is required; commonly used by contractors, plant maintenance, and service providers.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98710880

EAN 5711499792592
Applications Motors
Axial load max 7.5 kN
Breakdown torque 240-270-300 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 140-160-180 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.088 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 75.0 lb
Power factor 1 0.82-0.78-0.75
Product family MS6000
Rated current 140-160-180 A
Rated full-load torque 1 12.83 ft lb
Rated power - P2 5.5 kW
Rated speed 2870-2880-2890 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor SIC/SICFKM
Start. method direct-on-line
Starting current 470-510-520 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 2.467 ohm
Windings Enamelled

Motor Curves

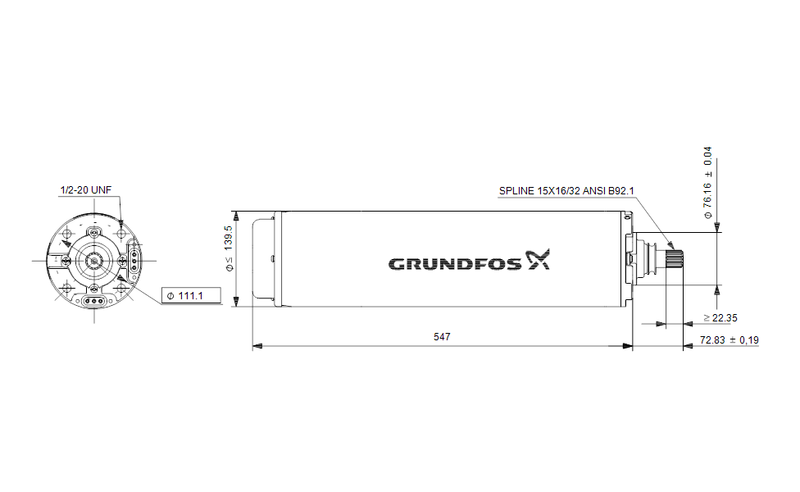

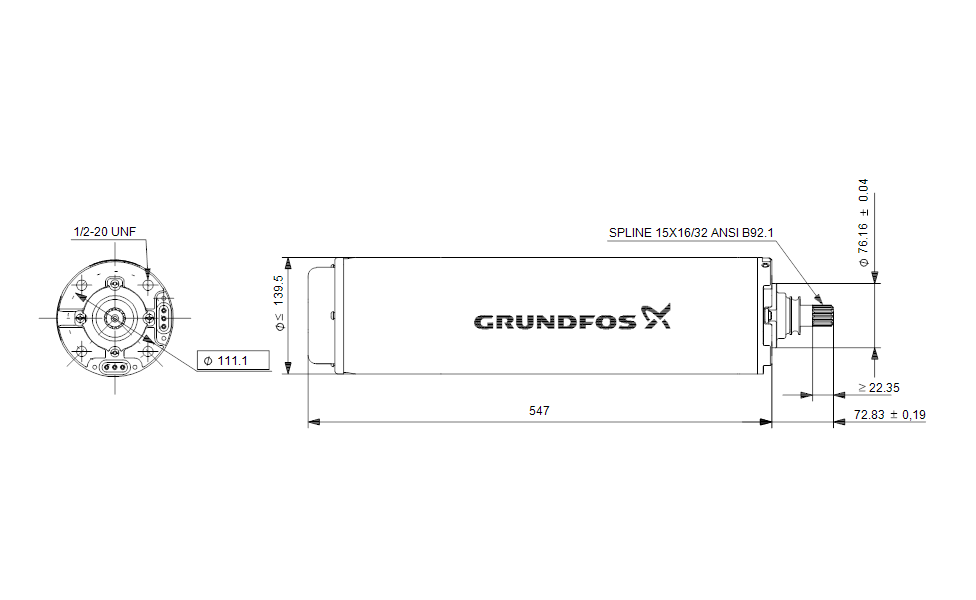

Dimensional Drawing

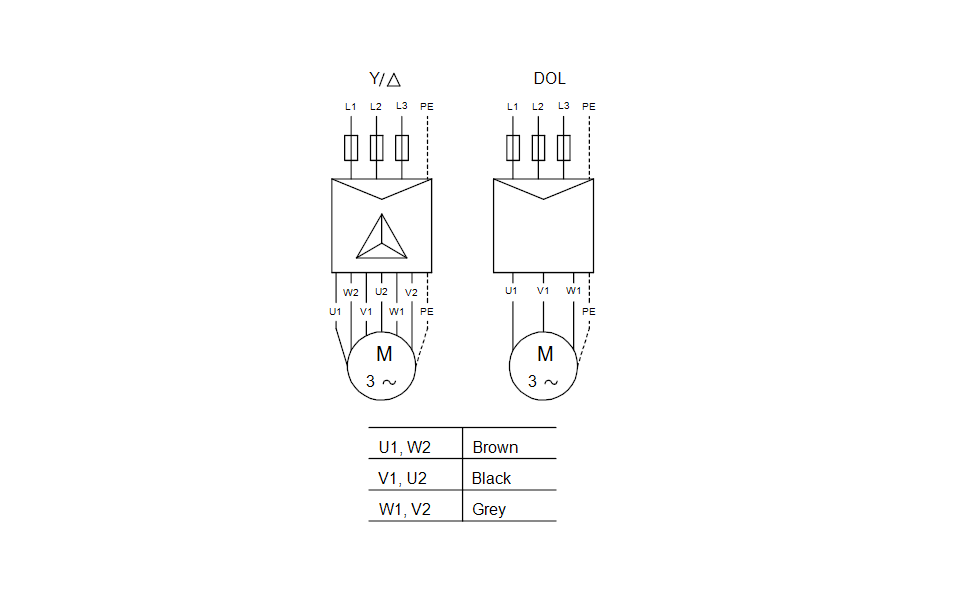

DWiring Diagram
