Grundfos 99445232 - MS6000QFXT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 99445232

Price:
Sale price$5,666.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

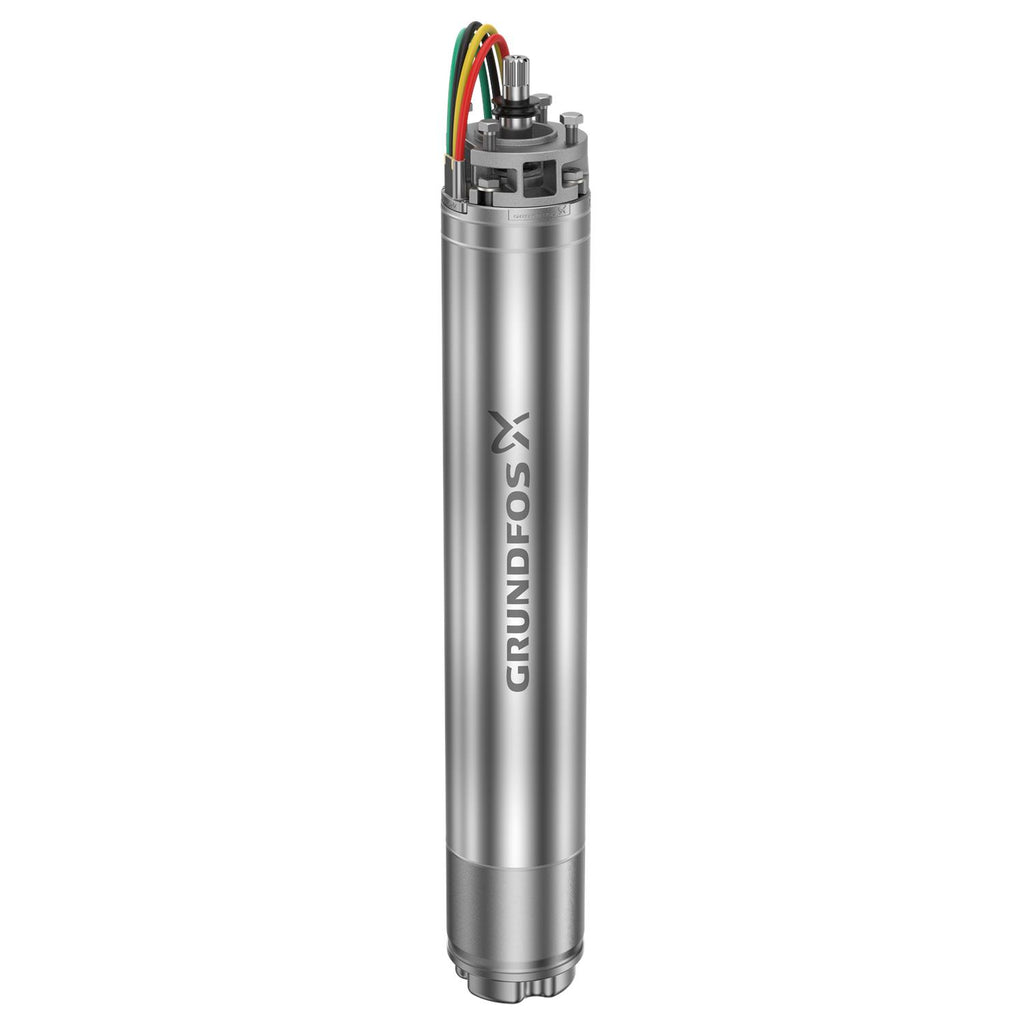

Grundfos 99445232 - MS6000QFXT40 Submersible Motor

The Grundfos 99445232 - MS6000QFXT40 is a high-efficiency submersible motor designed for various industrial applications. Manufactured by Grundfos, this motor is part of the 6" and larger submersible motors category, ensuring reliable performance and durability in demanding environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 99445232. If you encounter any difficulties in locating the right item, don’t hesitate to call us for support.

Axial load max 27 kN
Breakdown torque 1.6
Built-in motor protection NONE
CE approved (Yes/No) N
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
I MAX 79A
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code C
Locked-rotor torque 0.7
Maximum current consumption 79 A
Model C
Moment of inertia 0.18 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
n rpm F
Net weight 126.0 lb
P2 kW 15 HP
Phase 1
Power factor 1 0.95
Rated current 79 A
Rated full-load torque 1 25.52 ft lb
Rated power - P2 15 HP
Rated speed 3490 rpm
Rated voltage 1 x 230 V
Service factor 1.15
Shaft Product name:MS6000QFXT40
Shaft seal for motor SIC/SICNBR
Start. 1 method direct-on-line
Starting current 4.1
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +10/-10 %
Windings Enamelled

Motor Curves

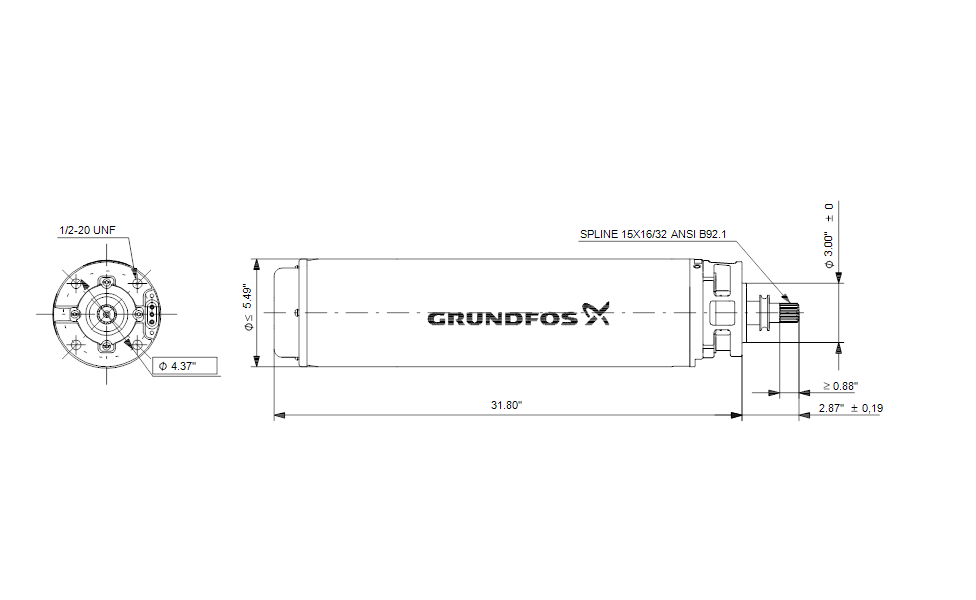

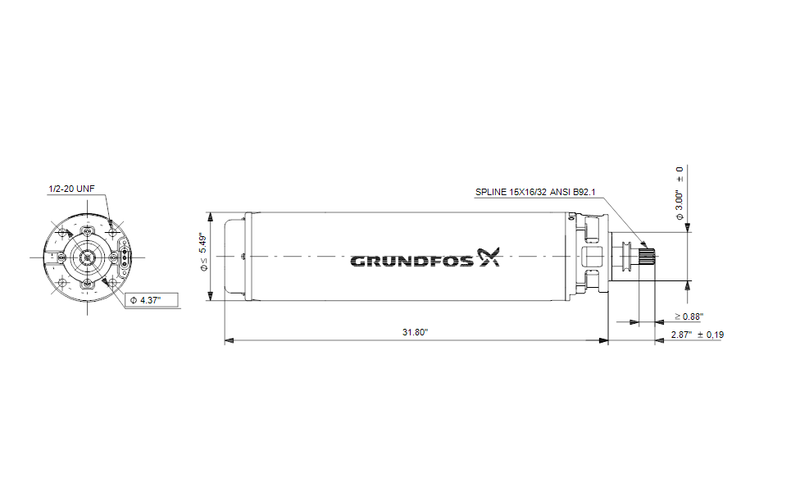

Dimensional Drawing

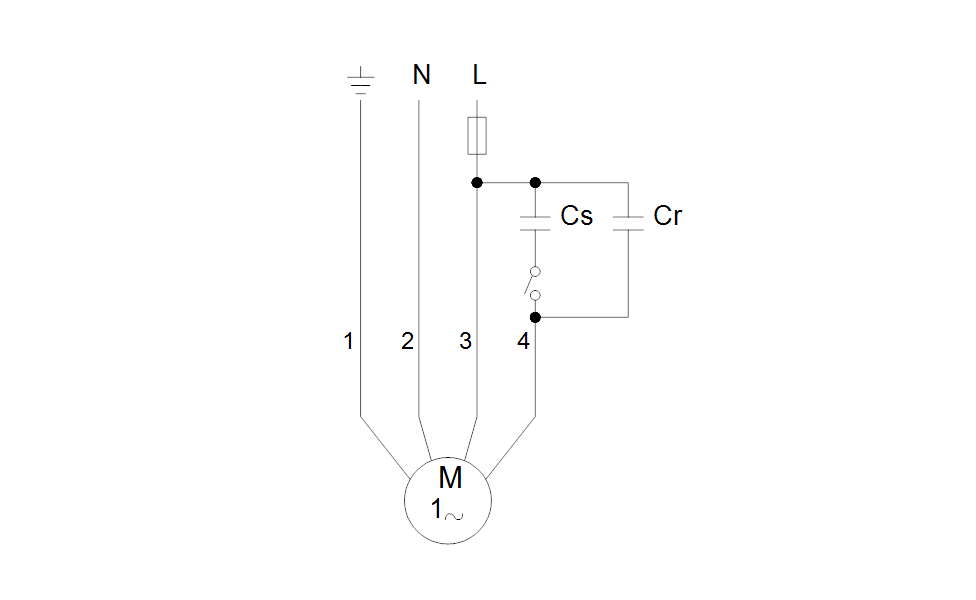

DWiring Diagram
