Grundfos 99445230 - MS6000QFXT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 99445230

Price:
Sale price$3,920.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

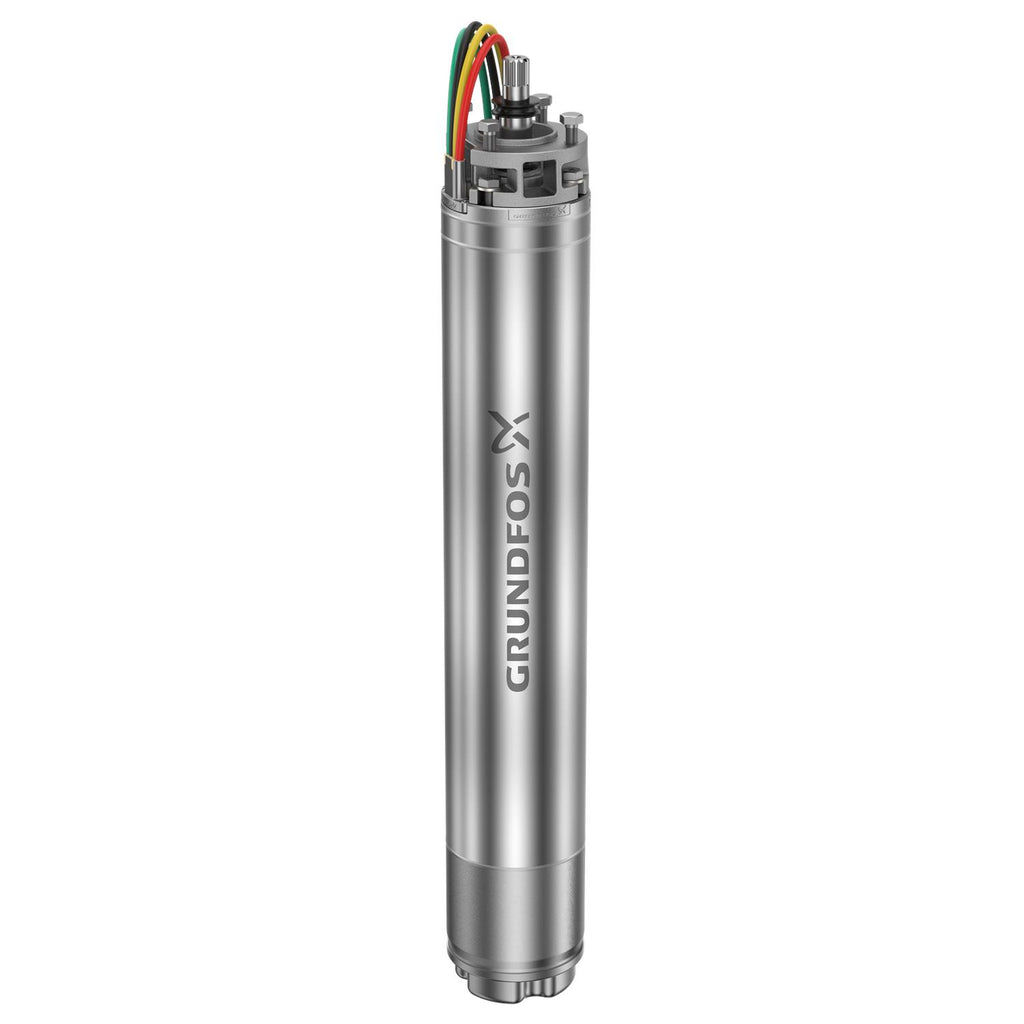

Grundfos 99445230 - MS6000QFXT40 Submersible Motor

The Grundfos MS6000QFXT40 is a high-efficiency, 1-phase submersible motor designed for reliable performance in demanding applications. This canned-type motor features a robust sand shield, liquid-lubricated bearings, and a pressure-equalizing diaphragm, ensuring durability and optimal operation in various environments.

Ideal for use in 6" and larger submersible systems, the MS6000QFXT40 is part of the renowned Grundfos range, known for its quality and innovation. Whether you are looking to replace an existing motor or upgrade your system, this model is engineered to meet your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Axial load max 27 kN
Breakdown torque 1.9
Built-in motor protection NONE
CE approved (Yes/No) N
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
I MAX 46A
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code D
Locked-rotor torque 0.7
Maximum current consumption 46 A
Model C
Moment of inertia 0.124 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
n rpm F
Net weight 99.2 lb
P2 kW 7.5 HP
Phase 1
Power factor 1 0.86
Rated current 46 A
Rated full-load torque 1 12.76 ft lb
Rated power - P2 7.5 HP
Rated speed 3500 rpm
Rated voltage 1 x 230 V
Service factor 1.15
Shaft Product name:MS6000QFXT40
Shaft seal for motor SIC/SICNBR
Start. 1 method direct-on-line
Starting current 3.7
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +10/-10 %
Windings Enamelled

Motor Curves
