Grundfos 96166188 - MS6000QFT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96166188

Price:
Sale price$7,781.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

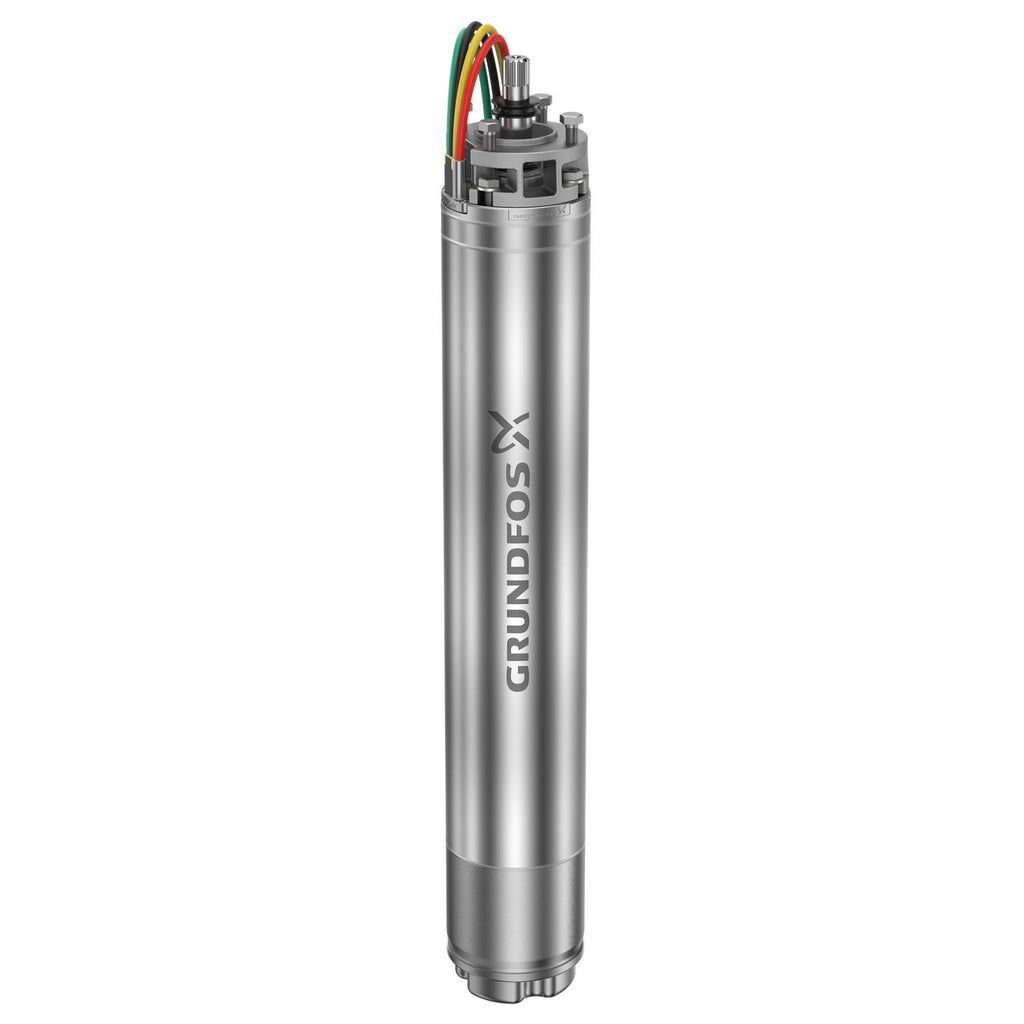

Grundfos 96166188 - MS6000QFT40 Submersible Motor

The Grundfos 96166188 - MS6000QFT40 is a high-efficiency submersible motor designed for various industrial applications. Manufactured by Grundfos, this motor is part of the 6" and larger submersible motors category, ensuring reliable performance and durability in demanding environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 96166188. If you're having trouble locating the right item, our knowledgeable team is here to help!

Axial load max 27 kN
Breakdown torque 210-240-270 %
Built-in motor protection NONE
CE approved (Yes/No) N
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
I MAX 104A
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code H
Locked-rotor torque 110-120-140 %
Maximum current consumption 104 A
Model C
Moment of inertia 0.23 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
n rpm F
Net weight 148.0 lb
P2 kW 30 HP
Phase 3
Power factor 1 0.87-0.87-0.85
Rated current 104-96.5-92.0 A
Rated full-load torque 1 52 ft lb
Rated power - P2 30 HP
Rated speed 3420-3450-3470 rpm
Rated voltage 3 x 208-220-230 V
Sales region North America
Service factor 1.15
Shaft Product name:MS6000QFT40
Shaft seal for motor SIC/SICNBR
Start. 1 method direct-on-line
Starting current 450-520-570 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.135 ohm
Windings Enamelled

Motor Curves

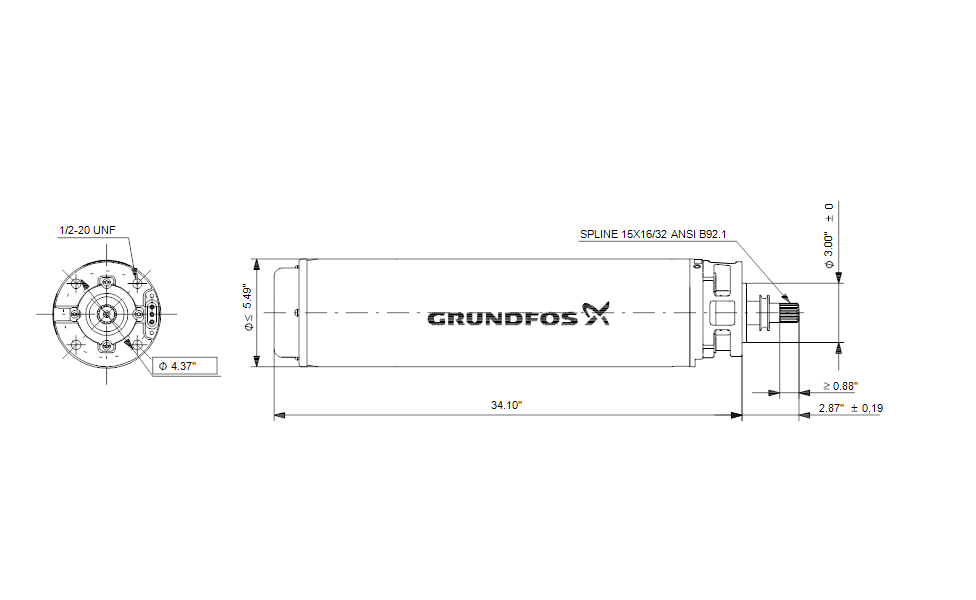

Dimensional Drawing

DWiring Diagram
