Grundfos 96166186 - MS6000QFT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96166186

Price:
Sale price$5,785.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

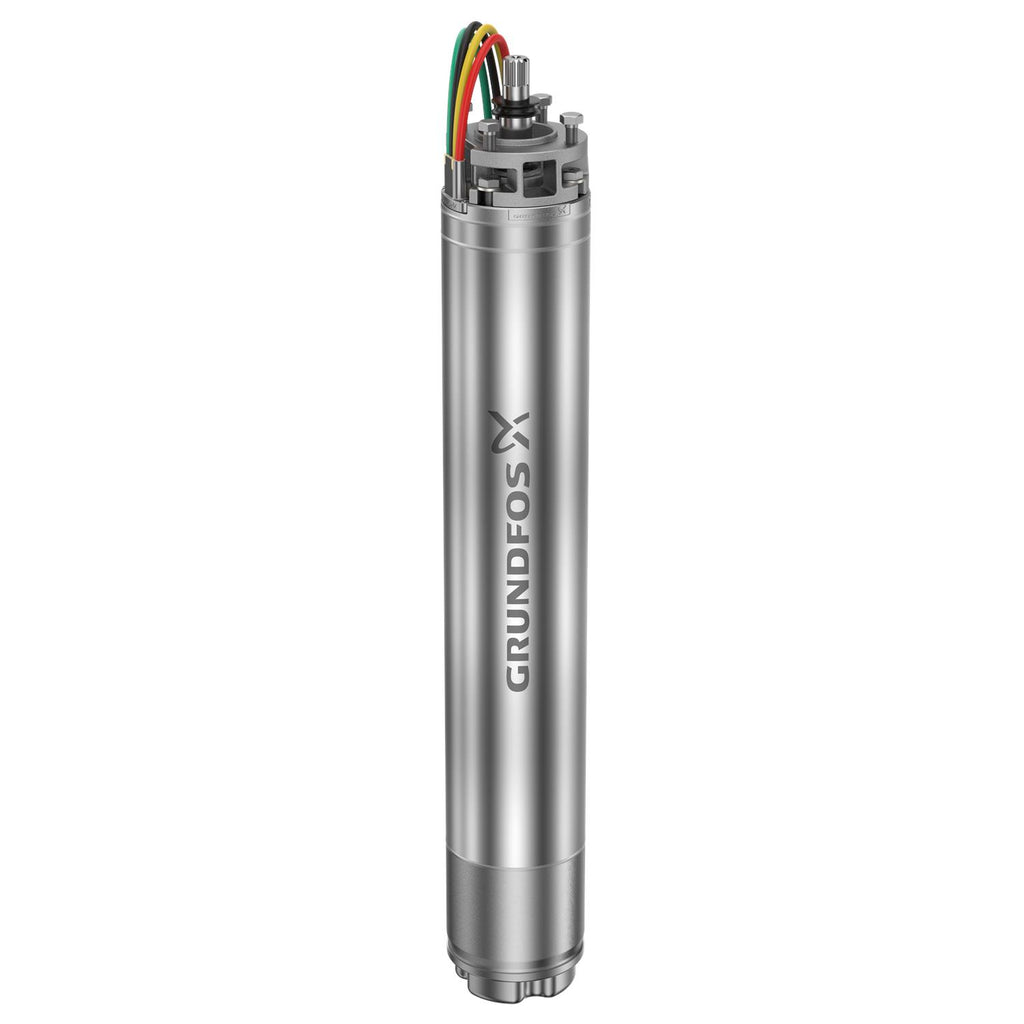

Grundfos 96166186 - MS6000QFT40 Submersible Motor

The Grundfos 96166186 - MS6000QFT40 is a high-efficiency submersible motor designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this motor is engineered to deliver reliable performance and durability in demanding environments.

With a robust design suitable for 6" and larger submersible motors, the MS6000QFT40 is ideal for use in various pumping systems. Whether you need to replace an existing motor or are looking to upgrade your equipment, this product is a perfect choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Axial load max 27 kN
Breakdown torque 220-260-290 %
Built-in motor protection NONE
CE approved (Yes/No) N
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
I MAX 71.5A
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code H
Locked-rotor torque 120-140-160 %
Maximum current consumption 71.5 A
Model C
Moment of inertia 0.17 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
n rpm F
Net weight 123.0 lb
P2 kW 20 HP
Phase 3
Power factor 1 0.86-0.85-0.84
Rated current 71.5-67.0-65.0 A
Rated full-load torque 1 35.4 ft lb
Rated power - P2 20 HP
Rated speed 3430-3450-3470 rpm
Rated voltage 3 x 208-220-230 V
Sales region North America
Service factor 1.15
Shaft Product name:MS6000QFT40
Shaft seal for motor SIC/SICNBR
Start. 1 method direct-on-line
Starting current 460-520-570 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.207 ohm
Windings Enamelled

Motor Curves

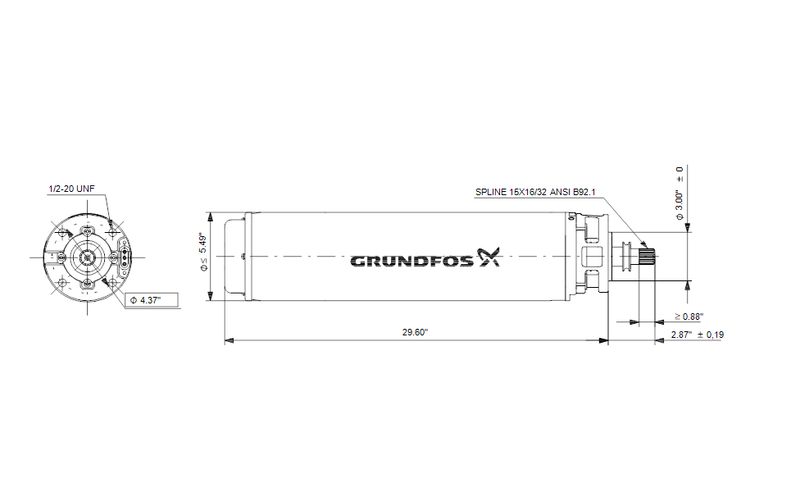

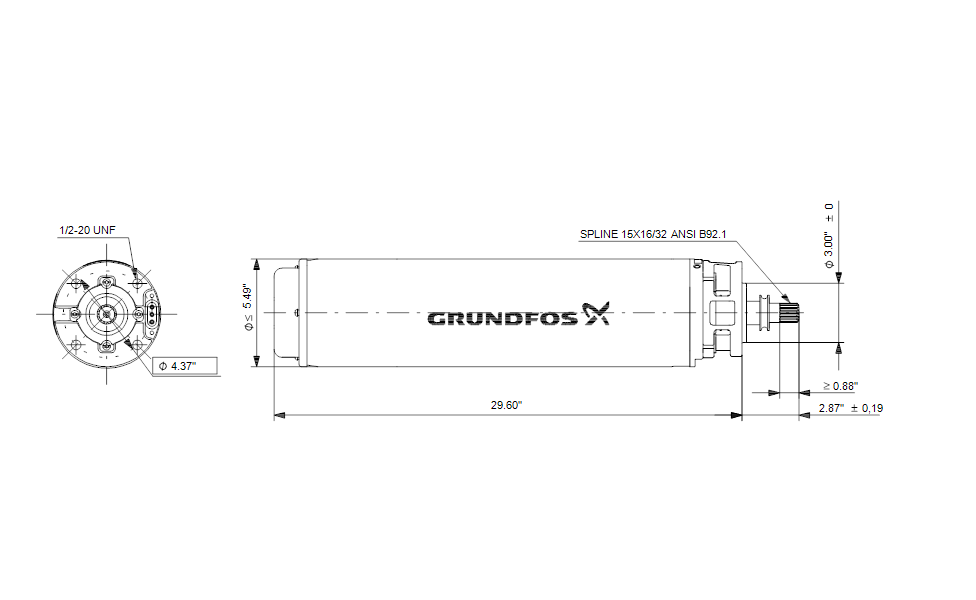

Dimensional Drawing

DWiring Diagram
