Grundfos 96166181 - MS6000QFT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96166181

Price:
Sale price$3,674.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

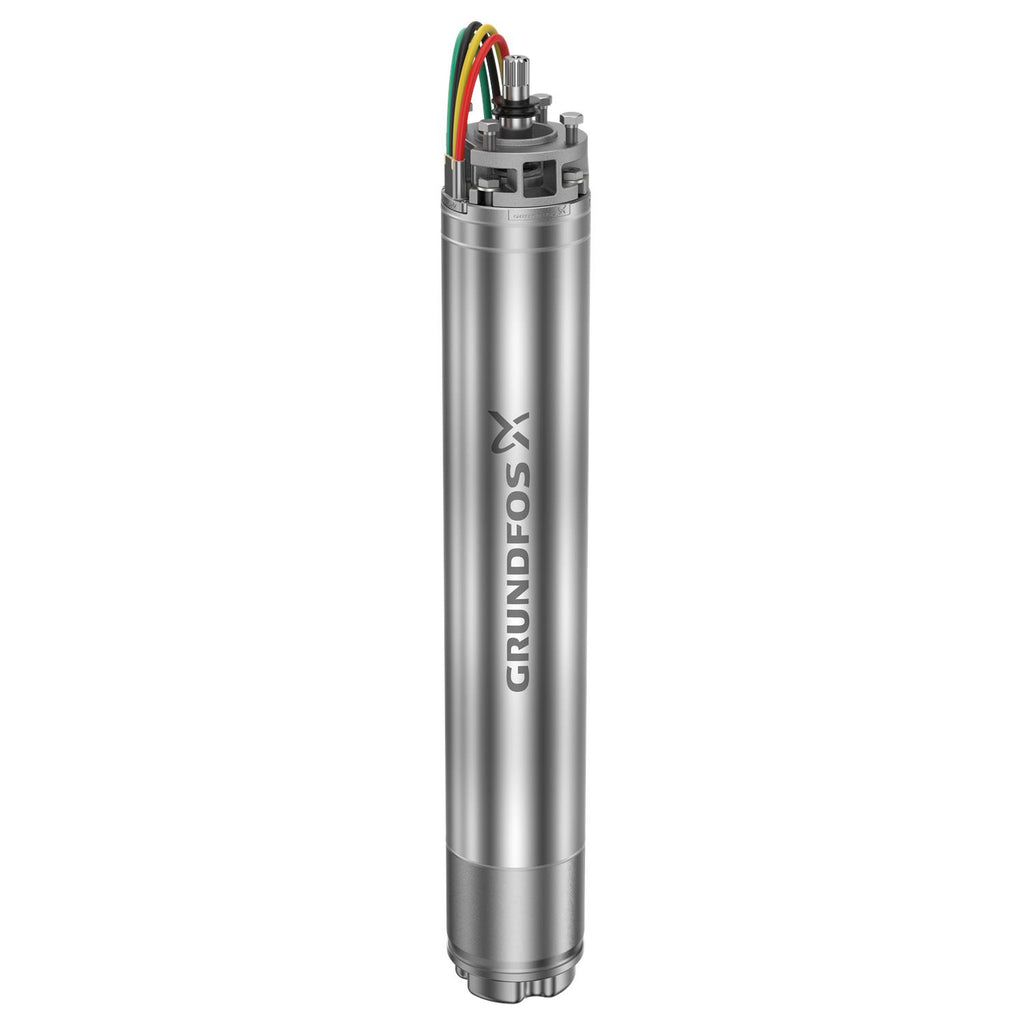

Grundfos 96166181 - MS6000QFT40 Submersible Motor

The Grundfos 96166181 - MS6000QFT40 is a high-efficiency submersible motor designed for various industrial applications. Manufactured by Grundfos, this motor is part of the 6" and larger submersible motors category, ensuring reliable performance and durability in demanding environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 96166181. If you're having trouble locating the right item, our knowledgeable team is here to help you find the perfect solution.

Axial load max 27 kN
Breakdown torque 220-260-280 %
Built-in motor protection NONE
CE approved (Yes/No) N
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
I MAX 27.5A
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code H
Locked-rotor torque 120-140-160 %
Maximum current consumption 27.5 A
Model C
Moment of inertia 0.088 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
n rpm F
Net weight 81.6 lb
P2 kW 7.5 HP
Phase 3
Power factor 1 0.83-0.82-0.80
Rated current 27.5-26.5-26.0 A
Rated full-load torque 1 12.98 ft lb
Rated power - P2 7.5 HP
Rated speed 3450-3470-3480 rpm
Rated voltage 3 x 208-220-230 V
Sales region North America
Service factor 1.15
Shaft Product name:MS6000QFT40
Shaft seal for motor SIC/SICNBR
Start. 1 method direct-on-line
Starting current 430-490-520 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.617 ohm
Windings Enamelled

Motor Curves

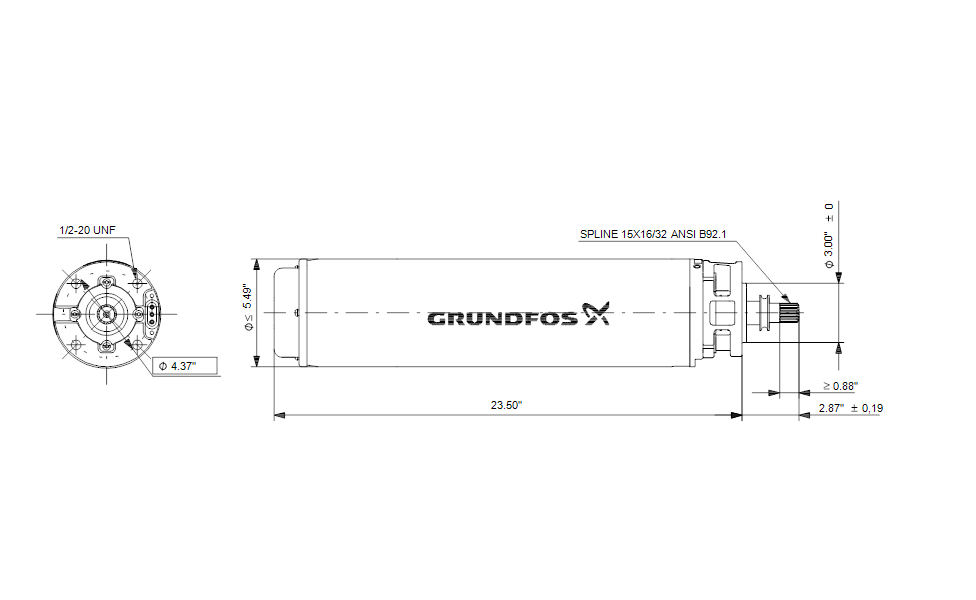

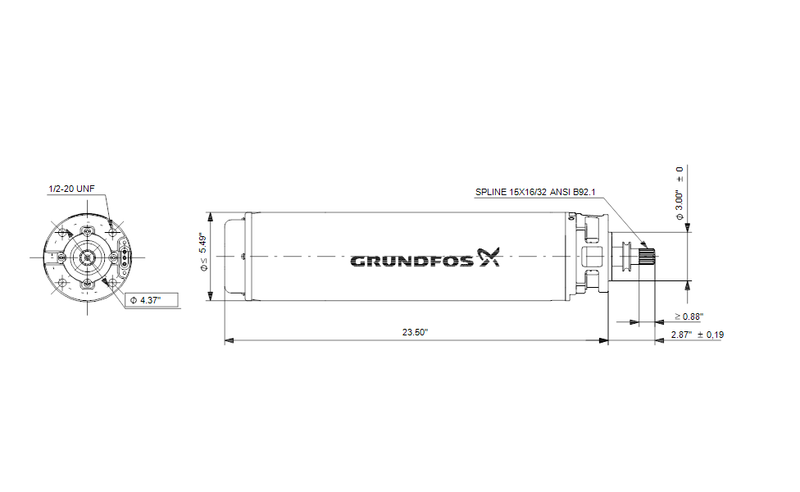

Dimensional Drawing

DWiring Diagram
