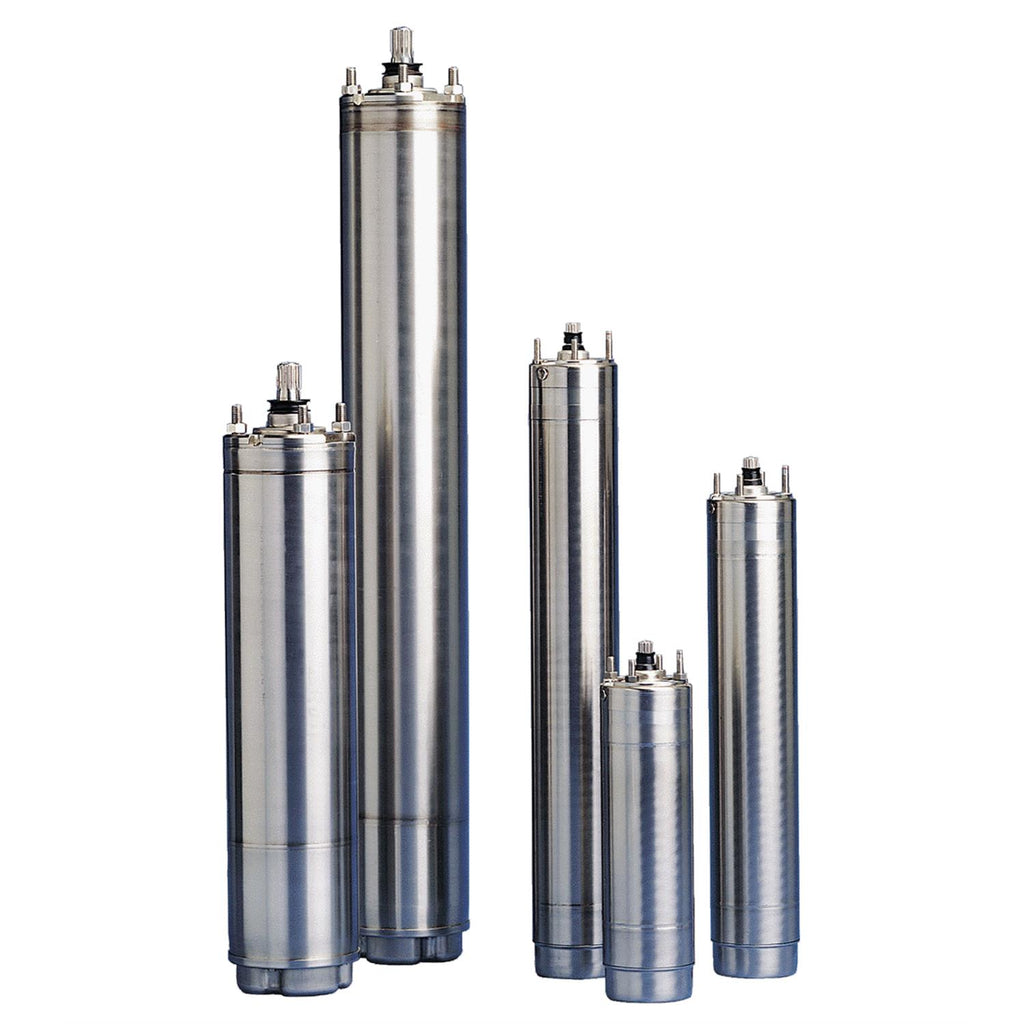

Grundfos 96591067 - MS 402 | Submersible Motor | High Efficiency

This item ships free!
GRUNDFOSSKU: 96591067

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MS 402 · Grundfos Accessory / Spare Part / Control
ACC1.5HP220-230-240V1-Phase50 HzIP68

The Grundfos 96591067 (MS 402) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 220-230-240V, 1-Phase, 50 Hz. Applications include Rotor & spray irrigation, Ground water transfer, Livestock & Wildlife Watering and more.

Power
1.5HP
Voltage
220-230-240V
Phase
1-Phase
Frequency
50 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MS 402
Series: ACC
Model Code: MS 402
Technical Specifications
Model Number 96591067
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1.5HP
Voltage 220-230-240V
Phase 1-Phase
Frequency 50 Hz
Motor Speed 2820-2830-2850rpm
Full Load Current 8.00-8.20-8.40A
Motor Type MS402
Motor Protection CONTACT
Insulation Class B
Protection Class (IP) IP68
Approvals / Certifications CE, EAC
Applications
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-230-240V, 1-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MS 402
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700831772514
Applications Motors
Approvals CE
Axial load max 350 kg
Breakdown torque 200-200-200 %
Built-in motor protection CONTACT
Built-in temp. transmitter no
Capacitor size - run 40 µF/400 V
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 50-70 %
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.019 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor type 1-phase PSC
Motor version T40
Power factor 1 0.99-0.96-0.92
Product family MS 402
Rated current 8.00-8.20-8.40 A
Rated full-load torque 1 2.766 ft lb
Rated power - P2 1.1 kW
Rated speed 2820-2830-2850 rpm
Rated voltage 1 x 220-230-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 430-440 %
Thermal protec internal
Type MS402
Version T40
Voltage tolerance +6/-6 %
Windings Enamelled

Motor Curves

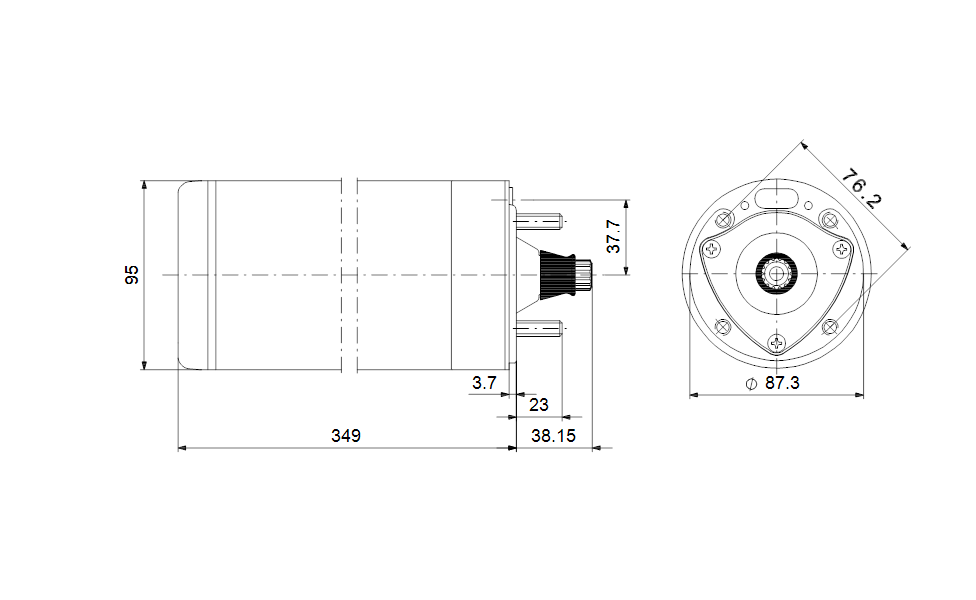

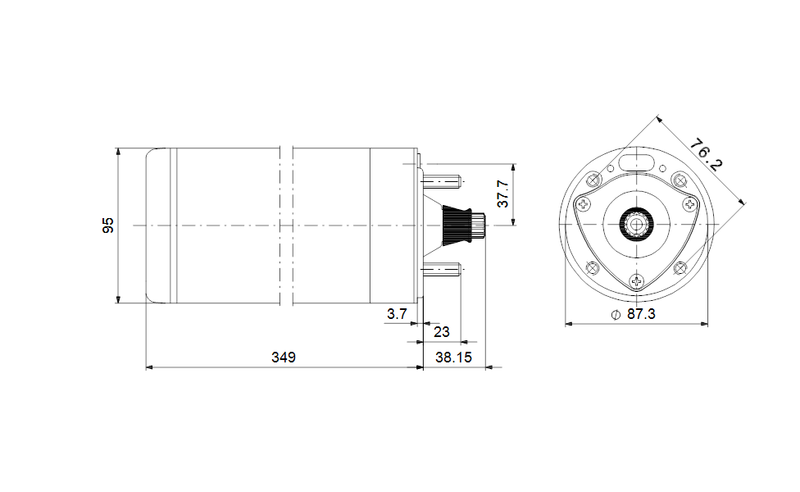

Dimensional Drawing

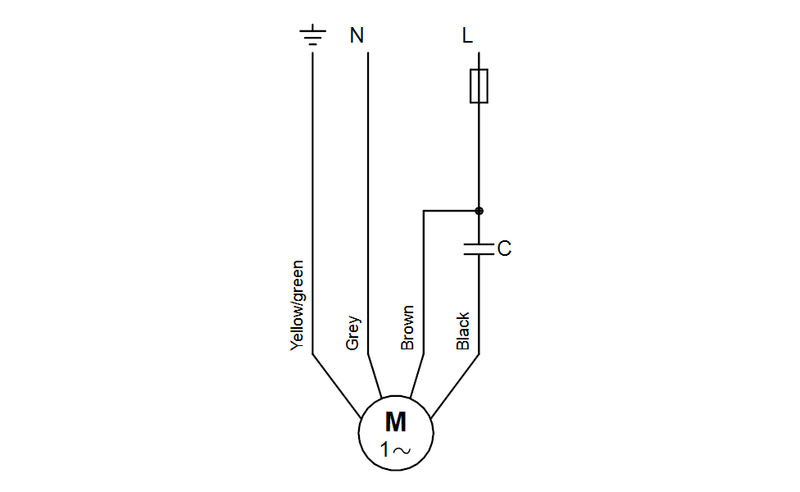

DWiring Diagram
