Grundfos 97648333 - MS 4000R | Submersible Motor | High Efficiency

GRUNDFOSSKU: 97648333

Price:
Sale price$3,586.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

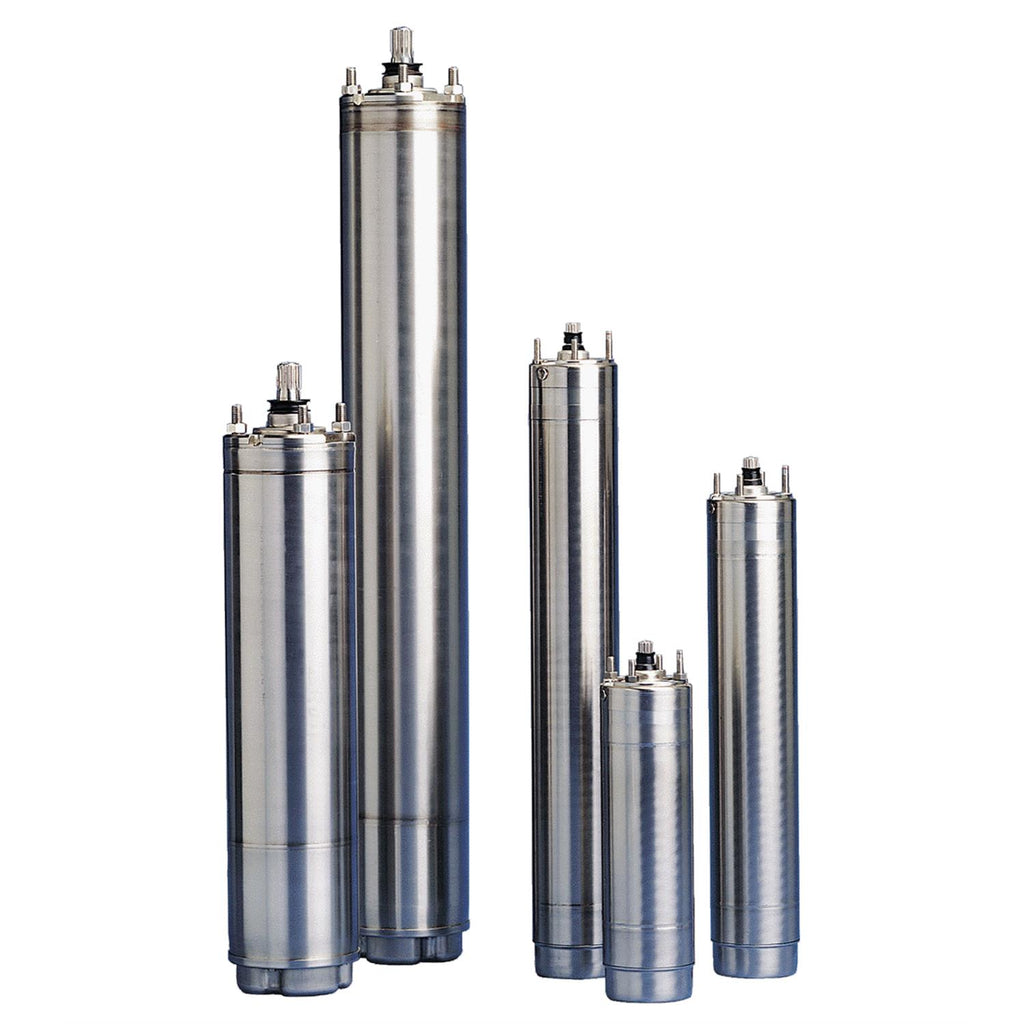

Grundfos 97648333 MS 4000R is a submersible motor intended for use with MS series pump systems, suited for industrial and commercial pumping installations where a durable replacement motor is needed.

Key features

  • Manufactured for various industrial applications as indicated in the product description
  • Compatible with MS 4000 series controls and accessories from the MS product family
  • Provides a reliable submersible motor option to restore pump operation and reduce downtime

Applications

Typical uses include water treatment, irrigation, industrial fluid transfer, and other submersible pump installations requiring a replacement motor in MS series systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97648333

EAN 5710620190153
Applications Motors
Approvals CE
Axial load max 450 kg
Built-in motor protection NONE
Built-in temp. transmitter yes
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
KVA code J
Locked-rotor torque 170-190 %
Mains frequency 60 Hz
Material Pricing Group 26
Maximum ambient pressure 60 bar
Maximum current consumption 8.65 A
Model B
Moment of inertia 0.052 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS4000
Motor version T40
Net weight 48.5 lb
Power factor 1 0.83-0.80
Product family MS 4000
Rated current 8.65-8.65 A
Rated power - P2 3.7 kW
Rated speed 3460-3470 rpm
Rated voltage 3 x 440-460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 550-590 %
Thermal protec external
Type MS4000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 4.67 ohm
Windings Enamelled

Motor Curves

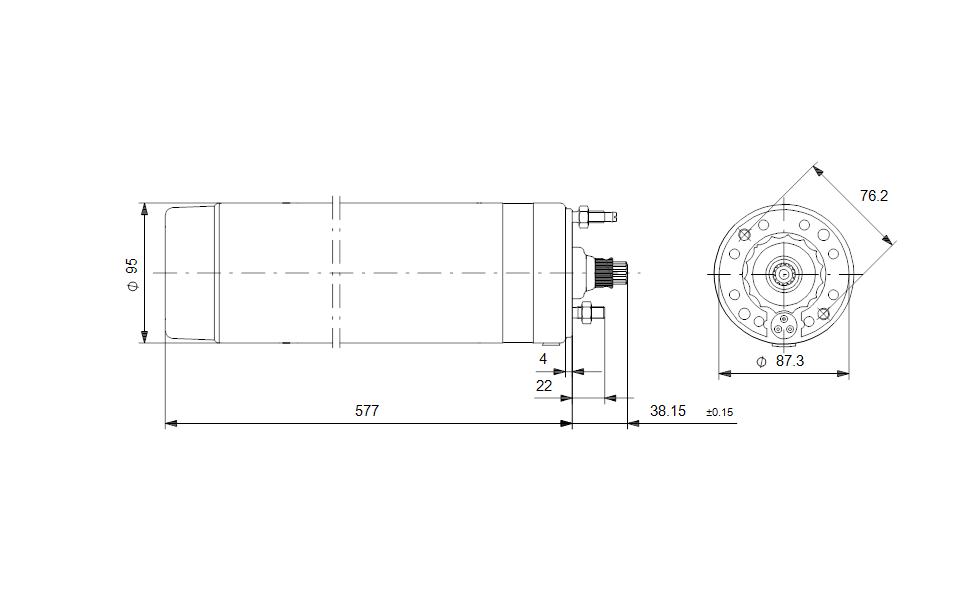

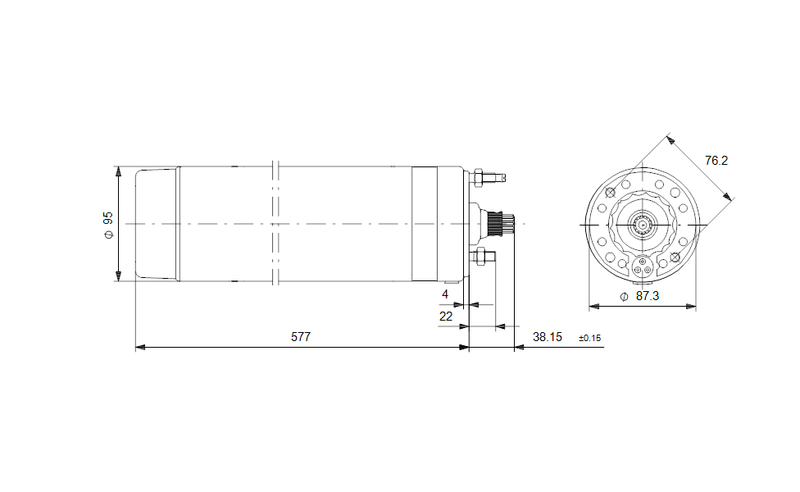

Dimensional Drawing

DWiring Diagram
