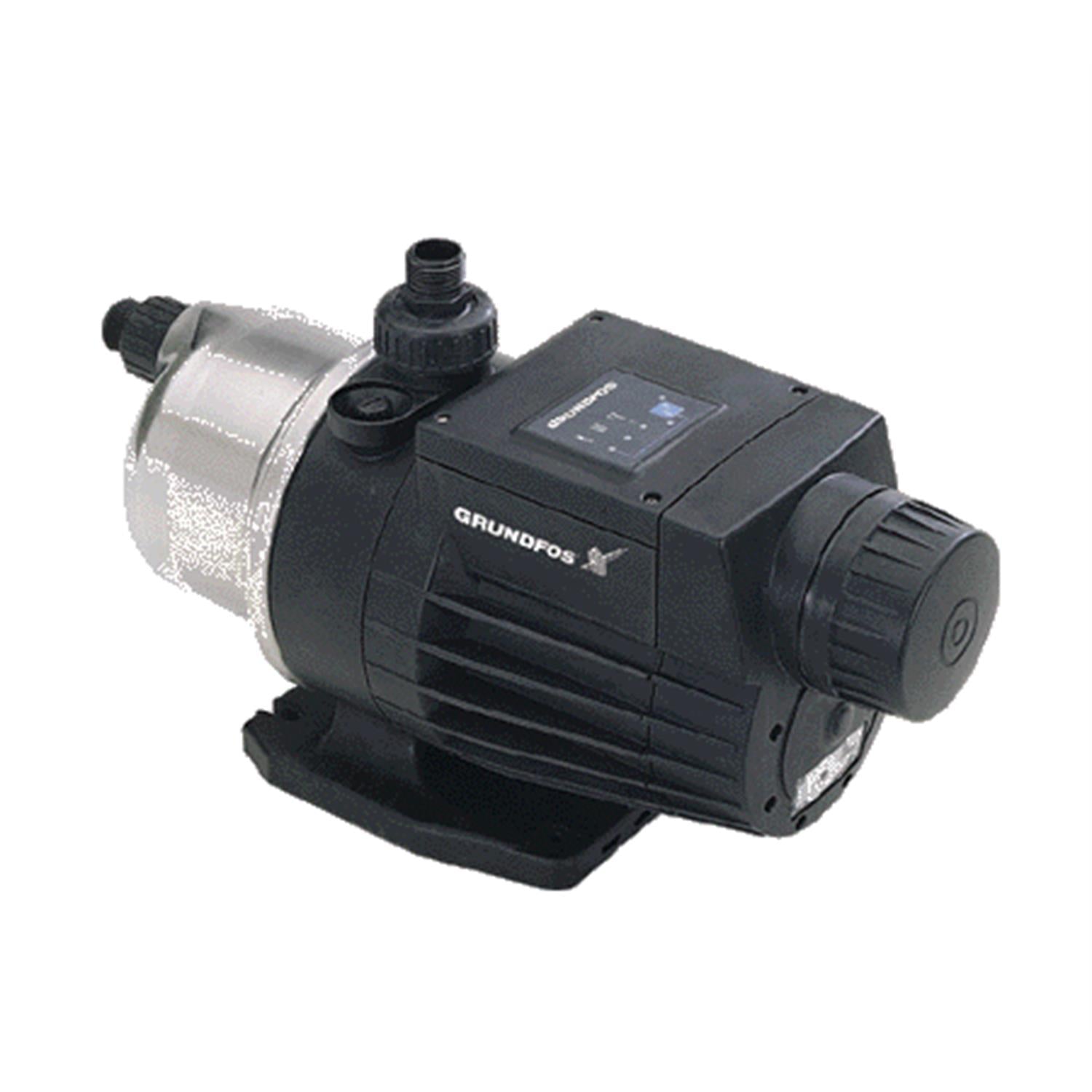

Grundfos 96607288 - MQ3-45 A-O-A-BVBP
Roll over image to zoom in Click on image to zoom
Grundfos 96607288 - MQ3-45 A-O-A-BVBP
Grundfos Pumps & Systems

Grundfos 96607288 - MQ3-45 A-O-A-BVBP

GRUNDFOSSKU: 96607288

or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MQ3-45 A-O-A-BVBP · Grundfos Accessory / Spare Part / Control
ACC220-240V1-Phase50 HzIP54PPO + 20% glass fiber-PTFE

The Grundfos 96607288 (MQ3-45 A-O-A-BVBP) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 13.2US gpm at 75.46ft. Rated 220-240V, 1-Phase, 50 Hz. Applications include Residential water pressure boosting.

Voltage
220-240V
Phase
1-Phase
Max Flow
13.2US gpm
Max Head
75.46ft
Max Pressure
108.78psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MQ3-45 A-O-A-BVBP
Series: ACC
Model Code: MQ3-45 A-O-A-BVBP
Impeller Material: PPO + 20% glass fiber-PTFE
Housing Material: POM + 25% glass fiber
Shaft Seal: BVBP
Technical Specifications
Model Number 96607288
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 220-240V
Phase 1-Phase
Frequency 50 Hz
Insulation Class B
Protection Class (IP) IP54
Nominal Flow 13.2US gpm
Nominal Head 75.46ft
Max Operating Pressure 108.78psi
Max Fluid Temperature 95°F
Max Ambient Temperature 113°F
Min Ambient Temperature 32°F
Nominal Pipe Bore G1
Impeller Material PPO + 20% glass fiber-PTFE
Housing Material POM + 25% glass fiber
Shaft Seal BVBP
Approvals / Certifications CE, WEEE
Applications
Residential water pressure boosting
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-240V, 1-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 95°F or max ambient temperature 113°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MQ3-45 A-O-A-BVBP
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96607288 · MQ3-45 A-O-A-BVBPAuthorized Grundfos Distributor · pump-stop.com
Adjustable start pressure (Yes/No)
N
Approvals
CE
Approvals and markings
45 m
Battery back-up
45 m
Colour
45 m
Connect code
O
Connection
G1
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP54
Flow range
45 m
Gross weight
34.2 lb
Head max
45 m
Housing
POM + 25% glass fibre
Impeller
PPO + 20% glass fibre-PTFE
Insulation class (IEC 85)
B
Length
45 m
Length of cable
2 m
Liquid temperature range
32 .. 95 °F
Mains frequency
50 Hz
Material code
A
Maximum operating pressure
7.5 bar
Model
B
Motor
45 m
Net weight
28.7 lb
Number of leads
45 m
Pipe connection
G1
Pipework connection
45 m
Power 1
1000 W
Power input - P1
1000 W
Pressure retention valve
45 m
Primary shaft seal
BVBP
Pump housing
POM + 25% glass fibre
Pump version
A
Pumped liquid
Water
Range of ambient temperature
32 .. 113 °F
Rated current
4.5 A
Rated flow
13.2 US gpm
Rated head
75.46 ft
Rated voltage
1 x 220-240 V
Sales region
Great Britain
Selected liquid temperature
68 °F
Sens.interface
45 m
Start pressure
2.8 bar
Switch
on/off switch included
Type of cable plug
NONE
Valve type
45 m
Version
A
