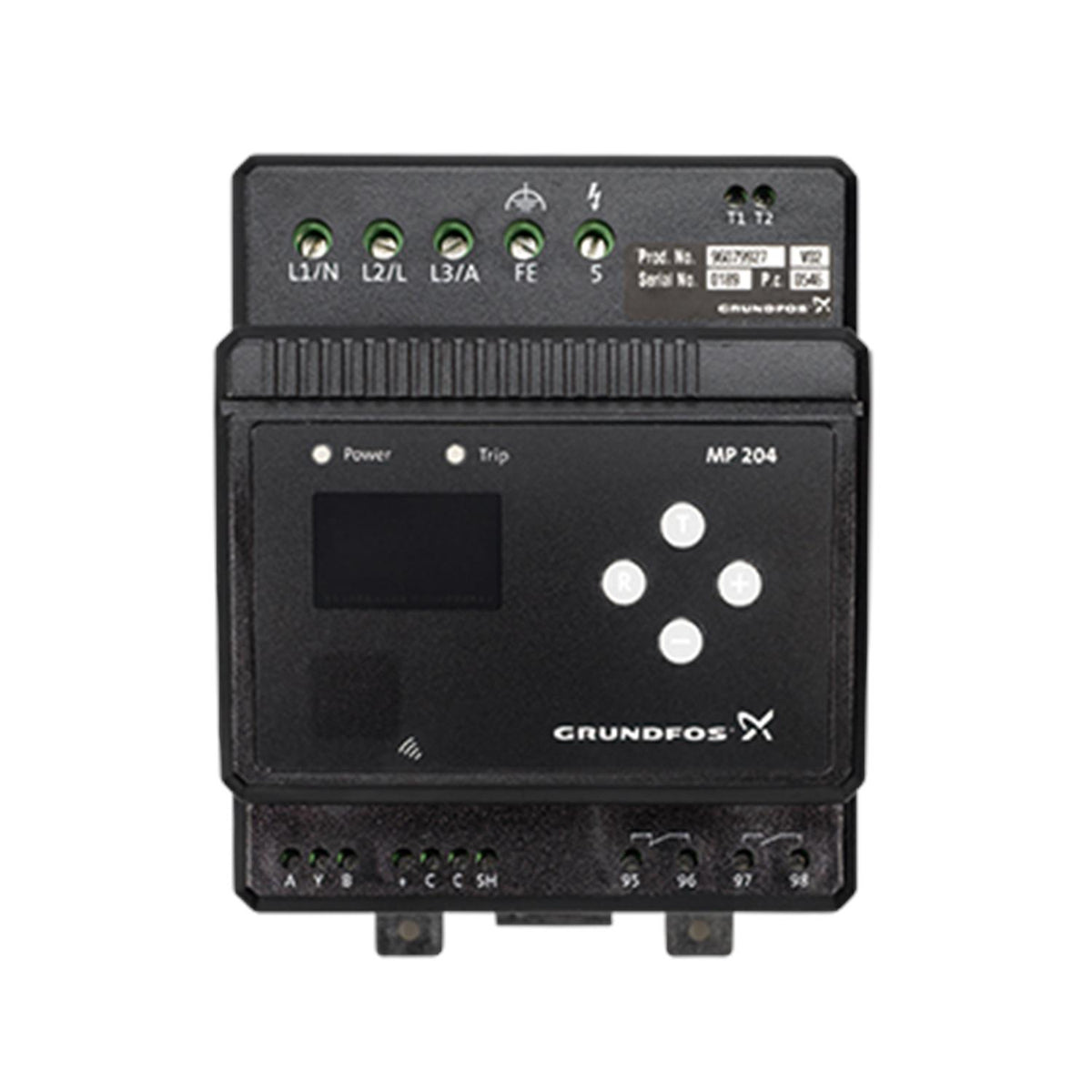

Grundfos 96079927 - MP 204

GrundfosSKU: 96079927

Price:
Sale price$1,228.00
Non stocked product
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MP 204 · Grundfos Accessory / Spare Part / Control
ACC100-480V1/3-Phase50, 60 HzIP20

The Grundfos 96079927 (MP 204) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 100-480V, 1/3-Phase, 50, 60 Hz. Applications include Municipal surface water, Municipal wells, Drinking water treatment and more.

Voltage
100-480V
Phase
1/3-Phase
Frequency
50, 60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MP 204
Series: ACC
Model Code: MP 204
Technical Specifications
Model Number 96079927
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 100-480V
Phase 1/3-Phase
Frequency 50, 60 Hz
Protection Class (IP) IP20
Max Ambient Temperature 140°F
Min Ambient Temperature -4°F
Approvals / Certifications UL, IEC, EN, CE
Applications
Municipal surface water
Municipal wells
Drinking water treatment
Municipal water transportation
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 100-480V, 1/3-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MP 204
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700395922240
Approvals UL
Enclosure class (IEC 34-5) IP20
Mains frequency 50 / 60 Hz
Material Pricing Group 95
Net weight 1.98 lb
Product family MP 204
Range of ambient temperature -4 .. 140 °F
Range of rated current 3 .. 120 A
Rated current 3 .. 120 A
Rated voltage 1/3 x 100-480 V
Real Time 1 Available on 12/12/2023 Plant: Allentown  Update with real time availability and Net price
Danish VVS No. 388397904
Swedish RSK No. 6010812

Motor Curves

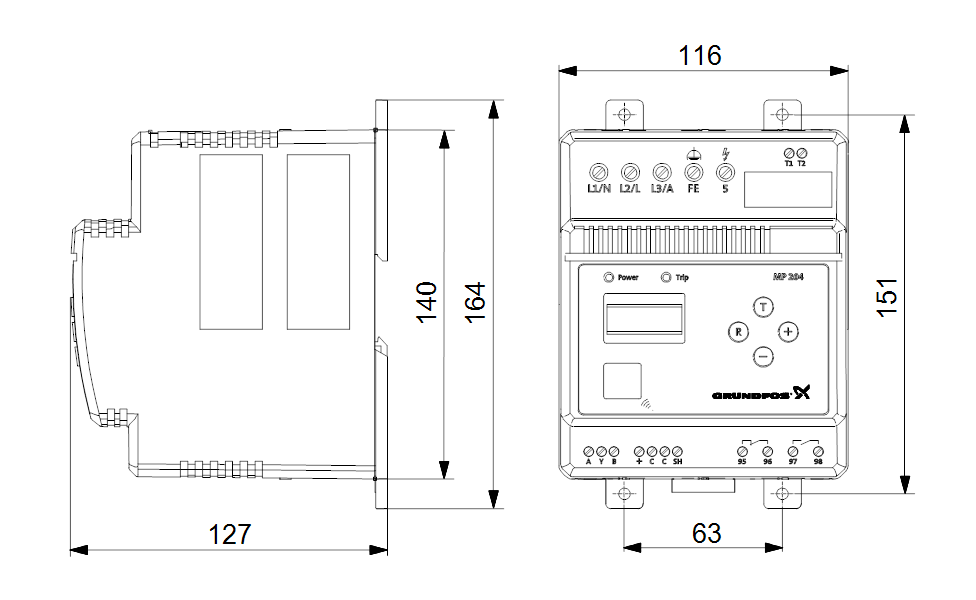

Dimensional Drawing

DWiring Diagram
