Grundfos 99973372 - MMS 8000 N | Submersible Motor | High Efficiency

GRUNDFOSSKU: 99973372

Price:
Sale price$35,752.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99973372 - MMS 8000 N Submersible Motor

Introducing the Grundfos 99973372 - MMS 8000 N, a high-efficiency submersible motor designed for optimal performance in demanding applications. This 3-phase motor features a wet-winded rewindable design, ensuring durability and reliability in various environments.

Equipped with a sand shield and liquid-lubricated bearings, the MMS 8000 N is engineered to withstand harsh conditions while maintaining efficiency. The integrated pressure equalizing diaphragm further enhances the motor's performance, making it an ideal choice for those seeking a robust solution for their pumping needs.

As part of the 6" and Larger Submersible Motors (MS6000-MMS) series, this motor is compatible with a range of Grundfos controls and accessories, ensuring seamless integration into your existing system.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

EAN 5715114966900
Applications Motors
Axial load max 5000 kg
Breakdown torque 250-290-300 %
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 160-180-190 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 1.424 lb ft²
Motor Stainless steel
Motor diameter 8 inch
Motor efficiency at 1/2 load 86-85 %
Motor efficiency at 3/4 load 0.87
Motor efficiency at full load 1 86-87 %
Motor type MMS8000
Motor version T45
Net weight 523.0 lb
Power factor 1 0.89-0.86-0.84
Product family MMS 8000
Rated current 156-152-152 A
Rated full-load torque 1 173.3 ft lb
Rated power - P2 75 kW
Rated speed 2900-2910-2920 rpm
Rated voltage 3 x 440-460-480 V
Real Time 1 Available on 11/6/2023 Plant: Allentown  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 520-580-580 %
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.130 ohm
Windings PE2/PA

Motor Curves

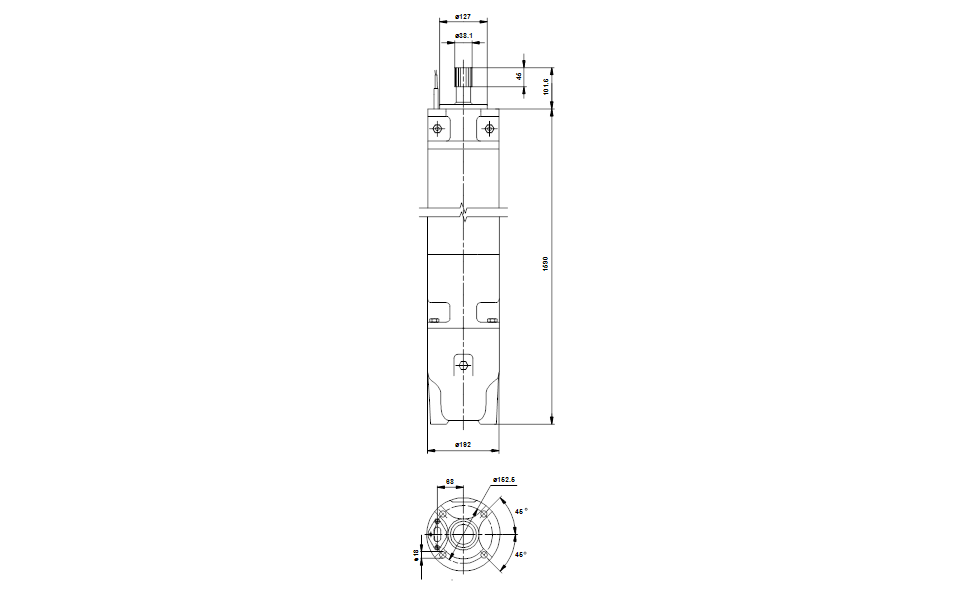

Dimensional Drawing

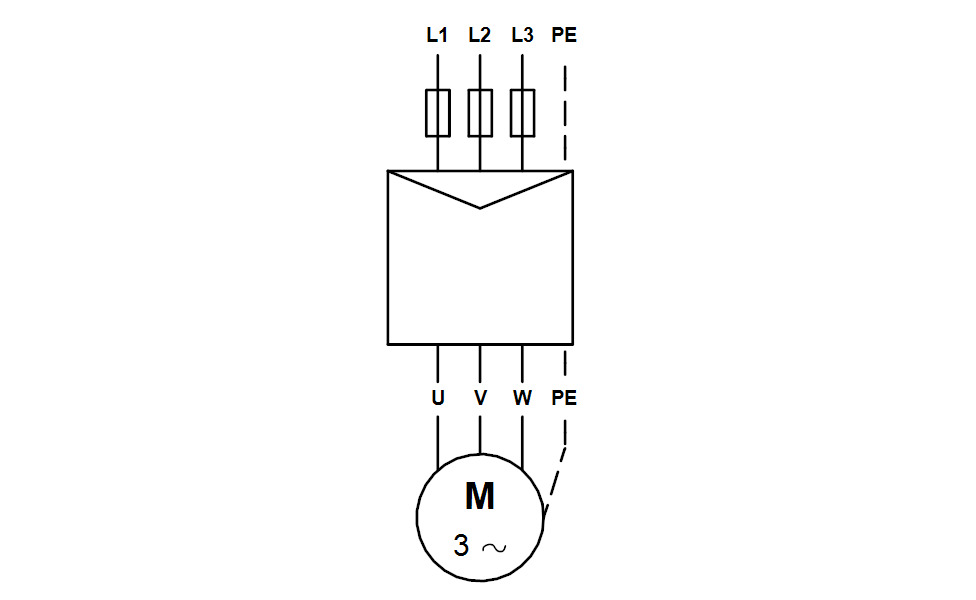

DWiring Diagram
