Grundfos 96742175 - MMS 8000 N | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96742175

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MMS 8000 N · Grundfos Accessory / Spare Part / Control
ACC100HP575V3.0-Phase60 HzIP68

The Grundfos 96742175 (MMS 8000 N) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 575V, 3.0-Phase, 60 Hz. Applications include Rotor & spray irrigation, Ground water transfer, Livestock & Wildlife Watering and more.

Power
100HP
Voltage
575V
Phase
3.0-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MMS 8000 N
Series: ACC
Model Code: MMS 8000 N
Technical Specifications
Model Number 96742175
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 100HP
Voltage 575V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3485rpm
Full Load Current 118A
Motor Type MMS8000
Motor Efficiency 86%
Protection Class (IP) IP68
Applications
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 575V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MMS 8000 N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700838317022
Applications Motors
Axial load max 5000 kg
Breakdown torque 314-351 %
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 210-255 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 1.424 lb ft²
Motor Stainless steel
Motor diameter 8 inch
Motor efficiency at 1/2 load 87-86 %
Motor efficiency at 3/4 load 0.88
Motor efficiency at full load 1 86-87 %
Motor type MMS8000
Motor version T45
Net weight 523.0 lb
Power factor 1 0.89-0.86
Product family MMS 8000
Rated current 119-115 A
Rated full-load torque 1 174.8 ft lb
Rated power - P2 75 kW
Rated speed 2880-2895 rpm
Rated voltage 3 x 500-525 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 661-717 %
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Windings PE2/PA

Motor Curves

Dimensional Drawing

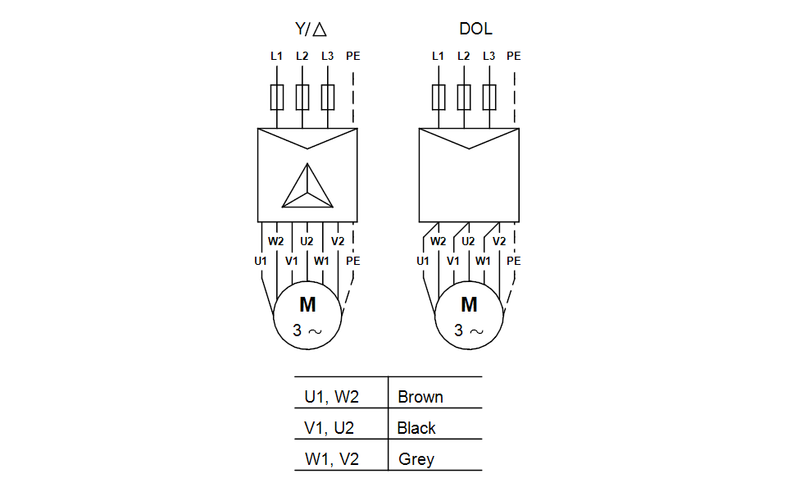

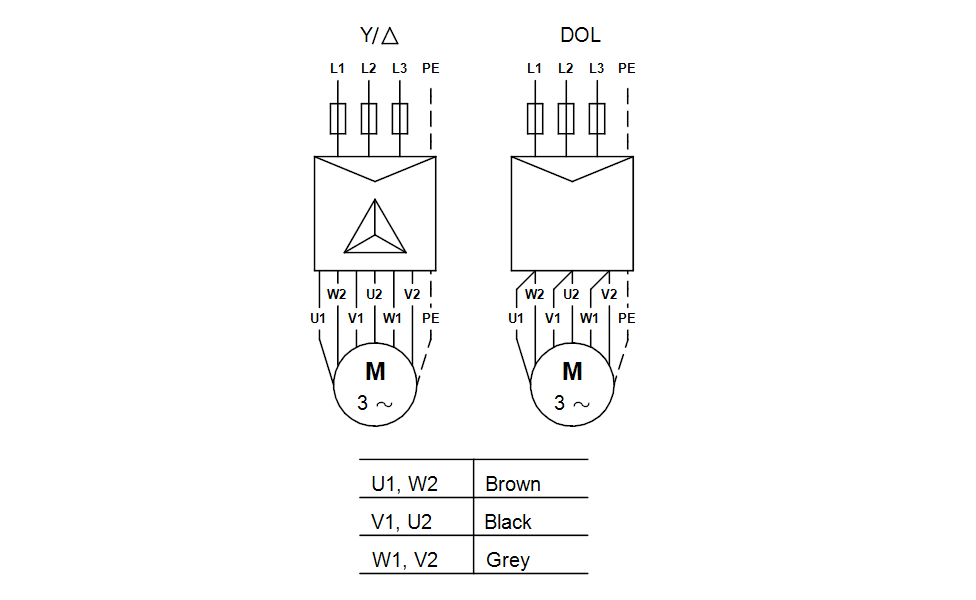

DWiring Diagram
