Grundfos 96742173 - MMS 8000 N | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96742173

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96742173 - MMS 8000 N is a high-efficiency submersible motor designed for industrial pump systems and control modules, suited for technicians and maintenance professionals servicing municipal and commercial installations.

Key features

  • Manufacturer-listed product for use with MMS 8000 series equipment, as noted in product literature
  • Compatible with controls and accessories for MMS pump systems, supporting modular control setups
  • High-efficiency design helps reduce energy use and operating costs in continuous-duty applications

Applications

Ideal for submersible pump motor replacements, control cabinet integrations, and industrial water or wastewater pumping systems where MMS series components are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96742173

EAN 5700838316995
Applications Motors
Axial load max 5000 kg
Breakdown torque 314-350 %
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 201-224 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 1.058 lb ft²
Motor Stainless steel
Motor diameter 8 inch
Motor efficiency at 1/2 load 0.84
Motor efficiency at 3/4 load 0.86
Motor efficiency at full load 1 85-86 %
Motor type MMS8000
Motor version T45
Net weight 423.0 lb
Power factor 1 0.87-0.83
Product family MMS 8000
Rated current 90.2-89.3 A
Rated full-load torque 1 127.6 ft lb
Rated power - P2 55 kW
Rated speed 2895-2905 rpm
Rated voltage 3 x 500-525 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 646-688 %
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.343 ohm
Windings PE2/PA

Motor Curves

Dimensional Drawing

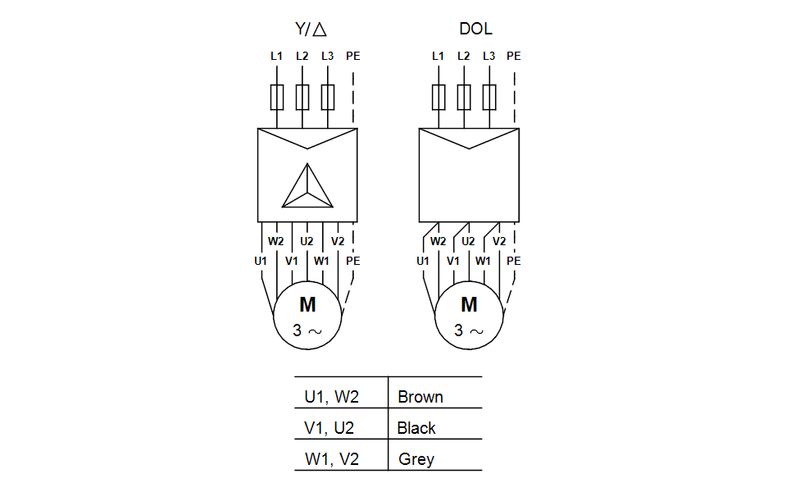

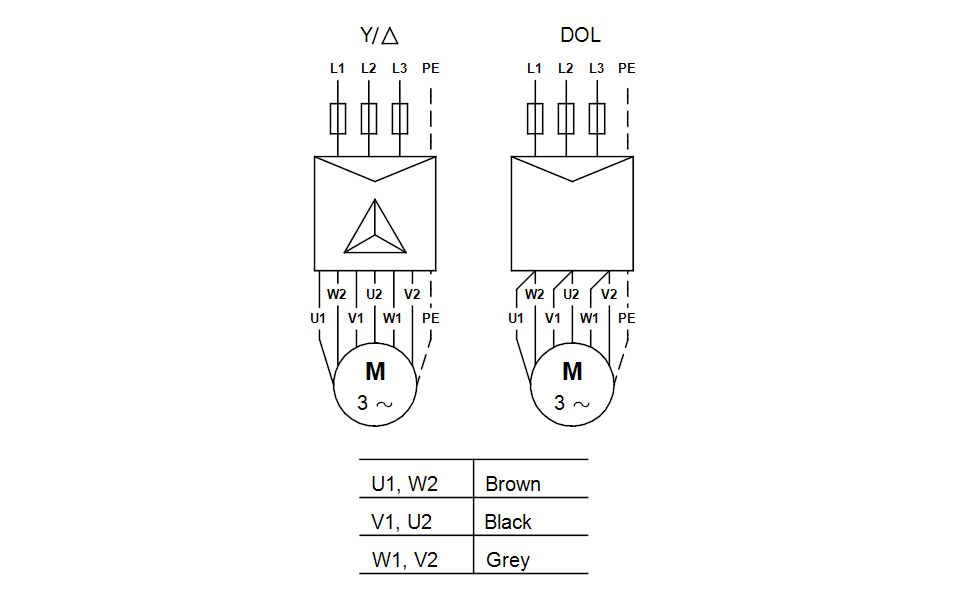

DWiring Diagram
