Grundfos 96530017 - MMS 8000 N | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96530017

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96530017 is an MMS 8000 N submersible motor designed for industrial pump systems and control assemblies, suited for technicians and maintenance professionals who service Grundfos equipment.

Key features

  • Submersible motor design for integration with MMS 8000 control systems
  • Designed for use with Grundfos controls and accessories
  • High-efficiency operation to reduce energy use and heat generation in installed systems

Applications

Typical uses include industrial water handling, pump station motor replacements, and integration with MMS series control packages where a compact, efficient submersible motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96530017

EAN 5700397178850
Applications Motors
Axial load max 5000 kg
Breakdown torque 250-290-300 %
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 160-180-190 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 1.424 lb ft²
Motor Stainless steel
Motor diameter 8 inch
Motor efficiency at 1/2 load 86-85 %
Motor efficiency at 3/4 load 0.87
Motor efficiency at full load 1 86-87 %
Motor type MMS8000
Motor version T45
Net weight 523.0 lb
Power factor 1 0.89-0.86-0.84
Product family MMS 8000
Rated current 156-152-152 A
Rated full-load torque 1 174.1 ft lb
Rated power - P2 75 kW
Rated speed 2900-2910-2920 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor CER/CARBON
Start. method star/delta
Starting current 520-580-580 %
Thermal protec external
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.130 ohm
Windings PE2/PA

Motor Curves

Dimensional Drawing

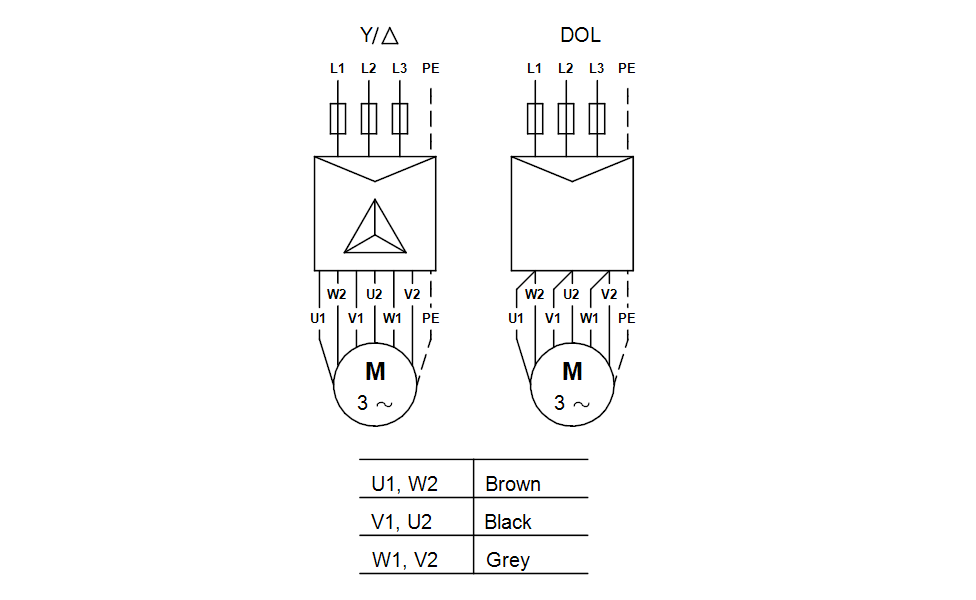

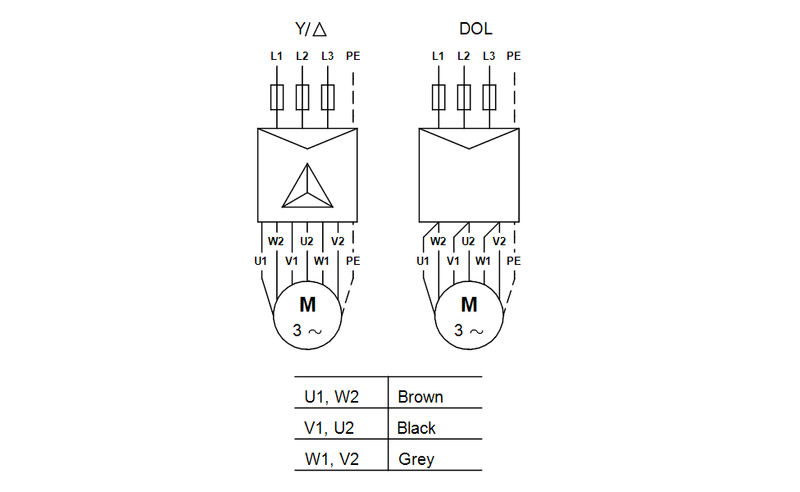

DWiring Diagram
