Grundfos 96742162 - MMS 8000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96742162

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96742162 MMS 8000 is a high-efficiency submersible motor assembly designed for industrial pumping systems and control packages. It suits technicians and facilities managers replacing or upgrading MMS series motor components.

Key features

  • Designed for MMS 8000 series submersible motor applications
  • Compatible with Grundfos controls and accessory configurations
  • Engineered for reliable, energy-efficient operation in continuous-service environments

Applications

Commonly used in municipal, commercial, and industrial wastewater and water-handling systems, motor replacement projects, and control panel integrations where MMS series compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96742162

EAN 5700838316865
Applications Motors
Axial load max 5000 kg
Breakdown torque 327-366 %
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 225-251 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 1.571 lb ft²
Motor Cast iron
Motor diameter 8 inch
Motor efficiency at 1/2 load 87-86 %
Motor efficiency at 3/4 load 0.88
Motor efficiency at full load 1 0.87
Motor type MMS8000
Motor version T45
Net weight 624.0 lb
Power factor 1 0.89-0.87
Product family MMS 8000
Rated current 145-140 A
Rated full-load torque 1 214.6 ft lb
Rated power - P2 92 kW
Rated speed 2880-2895 rpm
Rated voltage 3 x 500-525 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 693-753 %
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.090 ohm
Windings PE2/PA

Motor Curves

Dimensional Drawing

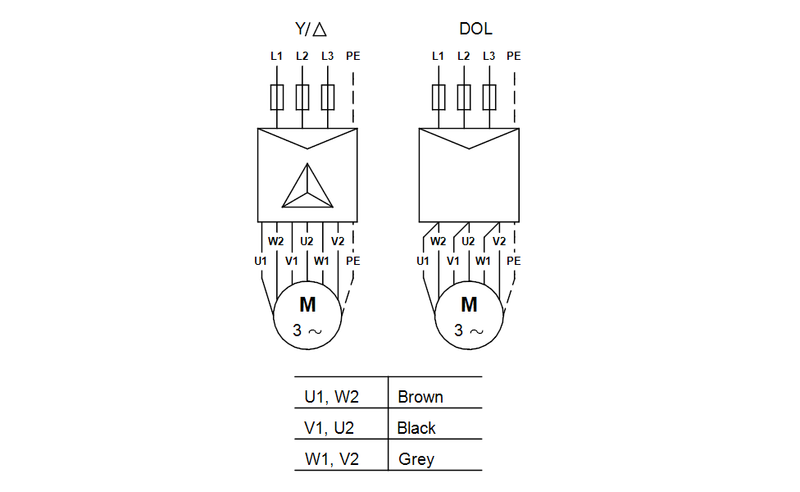

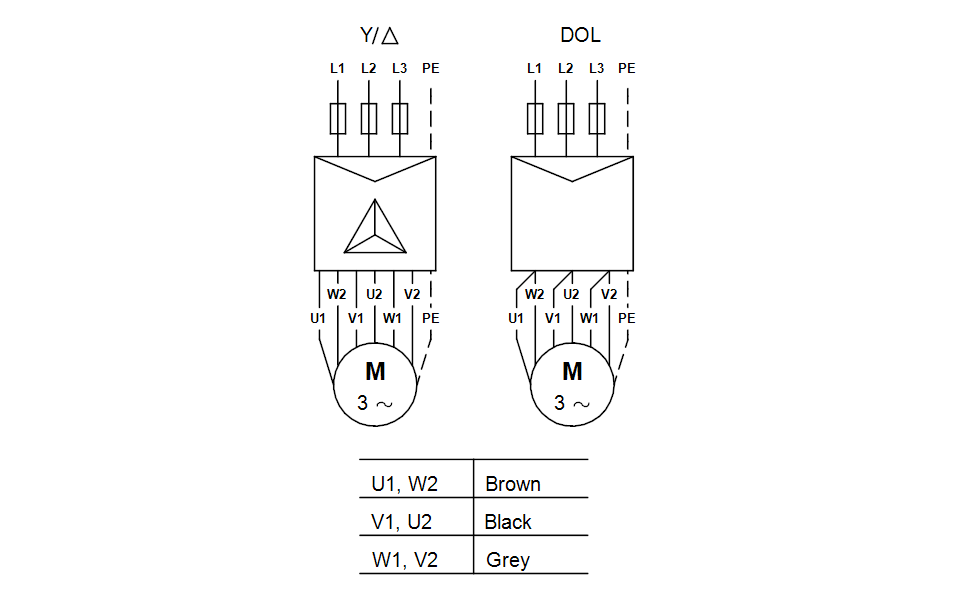

DWiring Diagram
