Grundfos 96611359 - MMS 8000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96611359

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96611359 MMS 8000 is a submersible motor designed for high-efficiency pump installations; it fits MMS-series pump systems and is used by contractors and service technicians for replacement motor applications.

Key features

  • 3-phase wet-winded rewindable motor construction with sand shield for submerged environments
  • Tagged for MMS and MMS 8000 pump systems and controls as a motor replacement part
  • Liquid-lubricated bearings and pressure-equalizing diaphragm provide reliable operation and extended service life

Applications

Suitable for submersible pump repair and maintenance, municipal and industrial pumping systems, and other MMS-series installations where a durable, high-efficiency motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611359

EAN 5700834478505
Applications Motors
Axial load max 5000 kg
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 95 °F
Max liquid t at 0.5 m/sec 40 °C
Moment of inertia 2.088 lb ft²
Motor Cast iron
Motor diameter 8 inch
Motor type MMS8000
Motor version T40
Net weight 734.0 lb
Product family MMS 8000
Rated power - P2 110 kW
Rated voltage 3 x 500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Type MMS8000
Version T40
Voltage tolerance +6/-10 %
Windings PE2/PA

Motor Curves

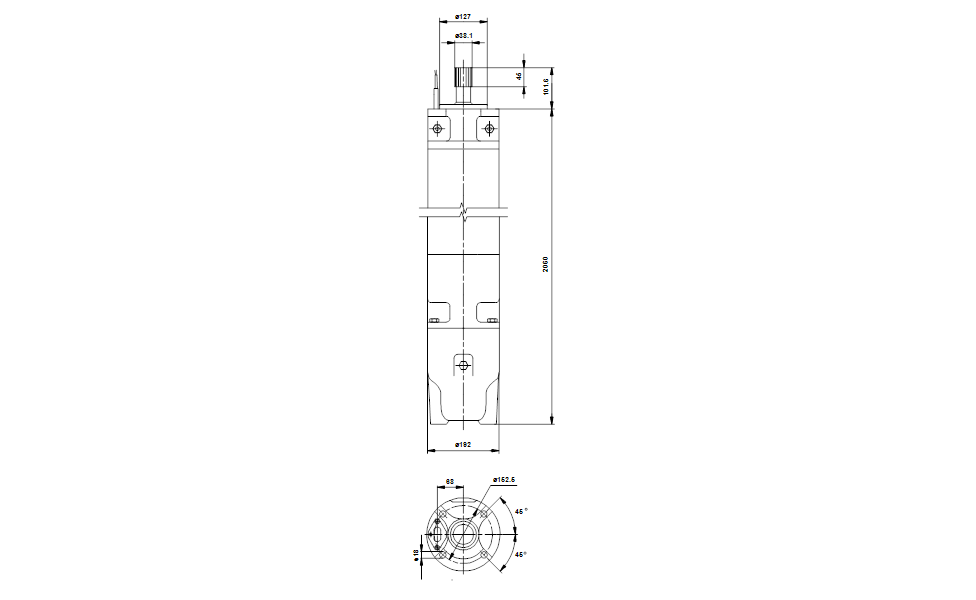

Dimensional Drawing

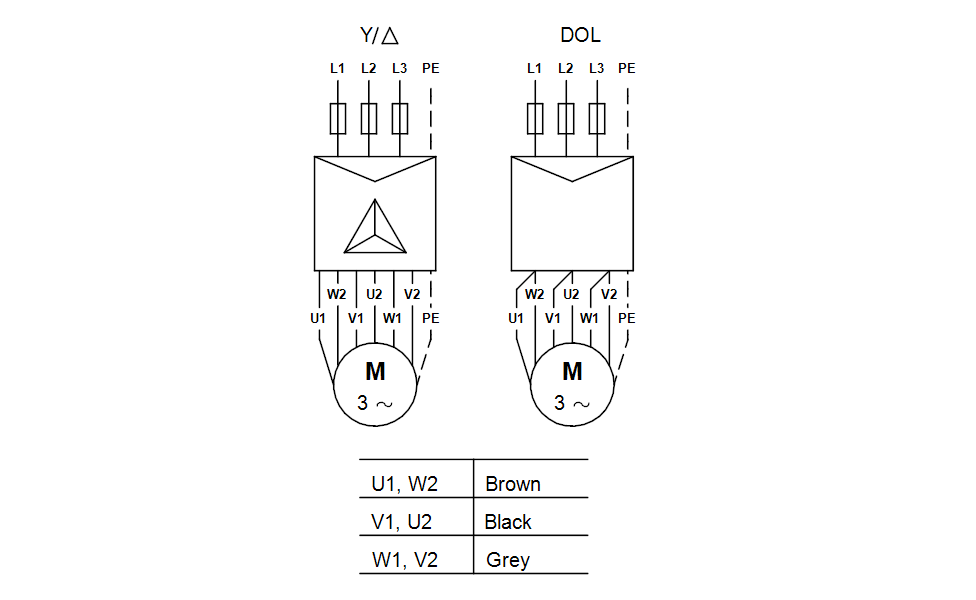

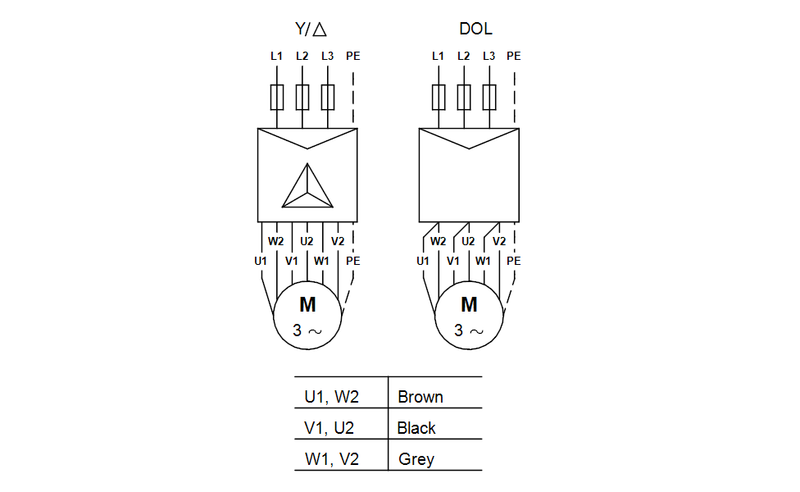

DWiring Diagram
