Grundfos 96611357 - MMS 8000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96611357

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96611357 MMS 8000 submersible motor is a high-efficiency replacement motor for MMS 8000-series pump systems, used by service technicians and facility maintenance teams.

Key features

  • 3-phase wet-wound rewindable motor with sand shield and pressure-equalizing diaphragm
  • Designed for MMS 8000 series applications and control assemblies
  • Liquid-lubricated bearings for extended operation and reliable submersible performance

Applications

Suitable for submersible pump installations where MMS-series motors are specified, including general pumping, dewatering, and industrial fluid handling where a rewindable motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611357

EAN 5700834478499
Applications Motors
Axial load max 5000 kg
Breakdown torque 3.17
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
KVA code N
Locked-rotor torque 1.88
Mains frequency 60 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 40 °C
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 0.06 kg m²
Motor Cast iron
Motor diameter 8 inch
Motor efficiency at 1/2 load 0.85
Motor efficiency at 3/4 load 0.87
Motor efficiency at full load 1 0.86
Motor type MMS8000
Motor version T45
Net weight 237.0 kg
Power factor 1 0.89
Product family MMS 8000
Rated current 118 A
Rated full-load torque 1 237 Nm
Rated power - P2 75 kW
Rated speed 3470 rpm
Rated voltage 3 x 575 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Service factor 1.15
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 6.66
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.230 ohm
Windings PE2/PA

Motor Curves

Dimensional Drawing

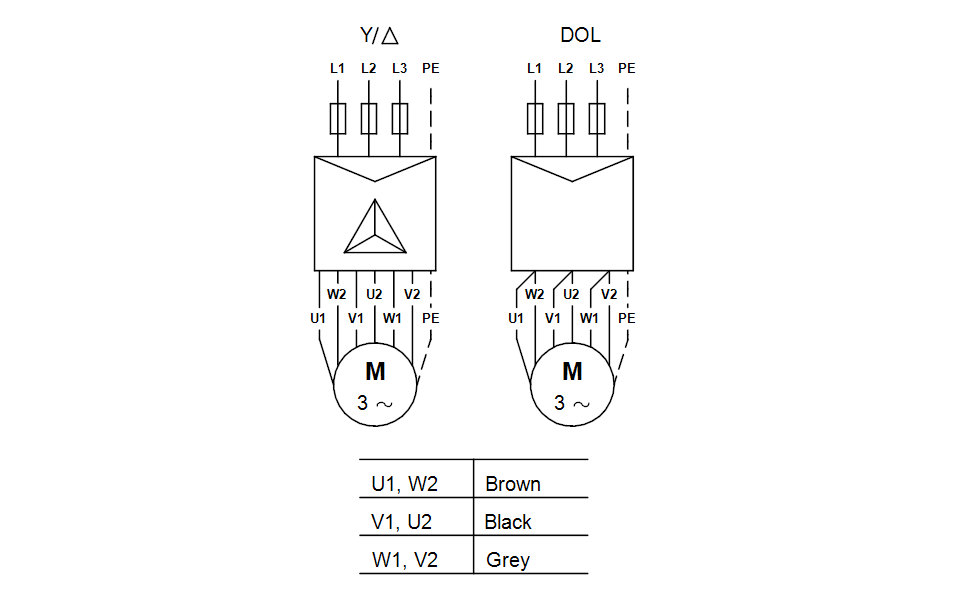

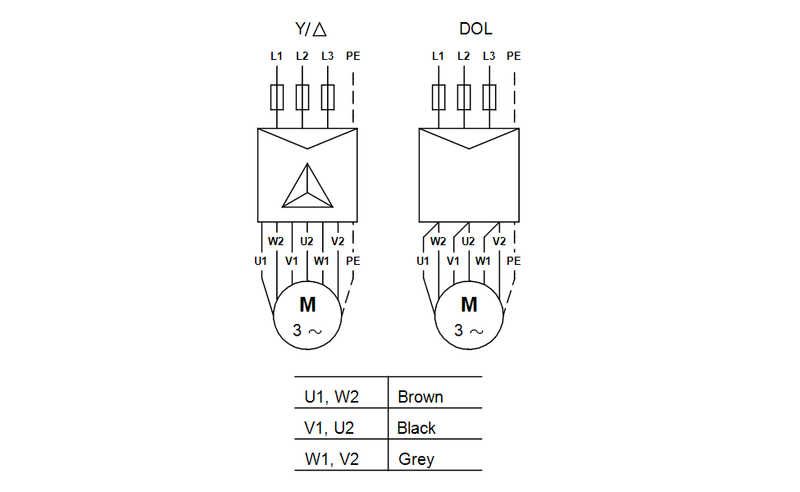

DWiring Diagram
