Grundfos 96611355 - MMS 8000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96611355

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos 96611355 MMS 8000 submersible motor is a high-efficiency replacement motor for submerged pump systems, suited for industrial and municipal pump applications and service technicians.

Key features

  • 3-phase wet-wound, rewindable motor with sand shield for extended life
  • Liquid-lubricated bearings and pressure-equalizing diaphragm as described for MMS 8000 units
  • Designed to provide reliable, low-maintenance operation in submersible installations

Applications

Suitable for use in submersible pump assemblies, wastewater and sewage handling, and other submerged pumping systems where MMS 8000 motors are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611355

EAN 5700834478475
Applications Motors
Axial load max 5000 kg
Breakdown torque 314-350 %
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 201-224 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 1.058 lb ft²
Motor Cast iron
Motor diameter 8 inch
Motor efficiency at 1/2 load 0.84
Motor efficiency at 3/4 load 0.86
Motor efficiency at full load 1 85-86 %
Motor type MMS8000
Motor version T45
Net weight 423.0 lb
Power factor 1 0.87-0.83
Product family MMS 8000
Rated current 90.2-89.3 A
Rated full-load torque 1 127.6 ft lb
Rated power - P2 55 kW
Rated speed 2895-2905 rpm
Rated voltage 3 x 500-525 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 646-688 %
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.343 ohm
Windings PE2/PA

Motor Curves

Dimensional Drawing

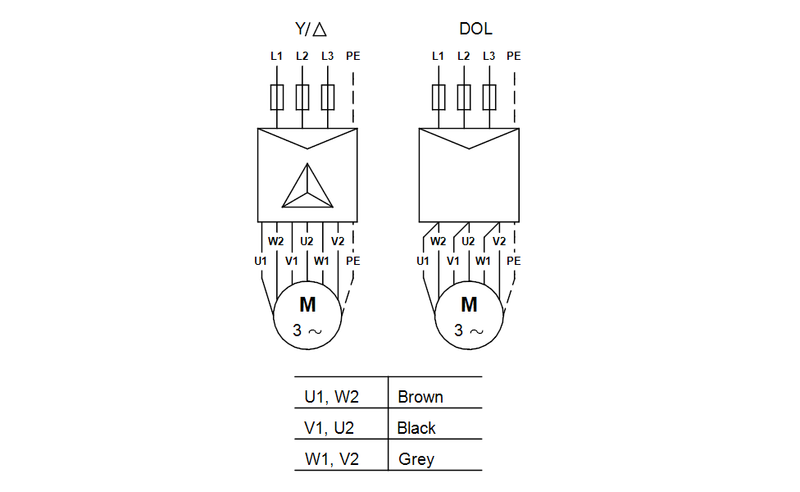

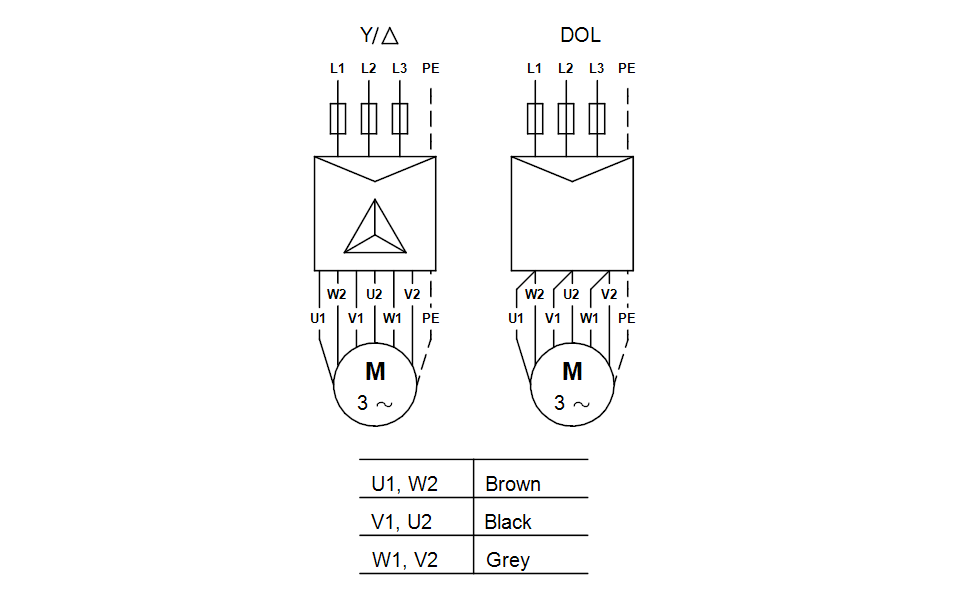

DWiring Diagram
