Grundfos 96611354 - MMS 8000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96611354

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96611354 MMS 8000 is a high-efficiency submersible motor designed for use with MMS series pump systems, suited for industrial and municipal pumping applications where durable motor design is required.

Key features

  • 3-phase wet-wound, rewindable motor construction with sand shield for extended life
  • Includes liquid-lubricated bearings and a pressure-equalizing diaphragm per MMS 8000 designation
  • Engineered to provide reliable operation and reduced downtime in submerged pump installations

Applications

Typical uses include submersible pump drives for wastewater, dewatering, and other submerged pumping systems that require rugged motor protection and reliable performance.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611354

EAN 5700834478468
Applications Motors
Axial load max 5000 kg
Breakdown torque 3.15
Built-in temp. transmitter no
Diameter 8 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 2
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 0.937 lb ft²
Motor Cast iron
Motor diameter 8 inch
Motor efficiency at 1/2 load 0.83
Motor efficiency at 3/4 load 0.85
Motor efficiency at full load 1 0.85
Motor type MMS8000
Motor version T45
Net weight 390.0 lb
Power factor 1 0.86
Product family MMS 8000
Rated current 72 A
Rated full-load torque 1 104 ft lb
Rated power - P2 45 kW
Rated speed 2900 rpm
Rated voltage 3 x 500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 6.5
Type MMS8000
Version T45
Voltage tolerance +6/-10 %
Windings PE2/PA

Motor Curves

Dimensional Drawing

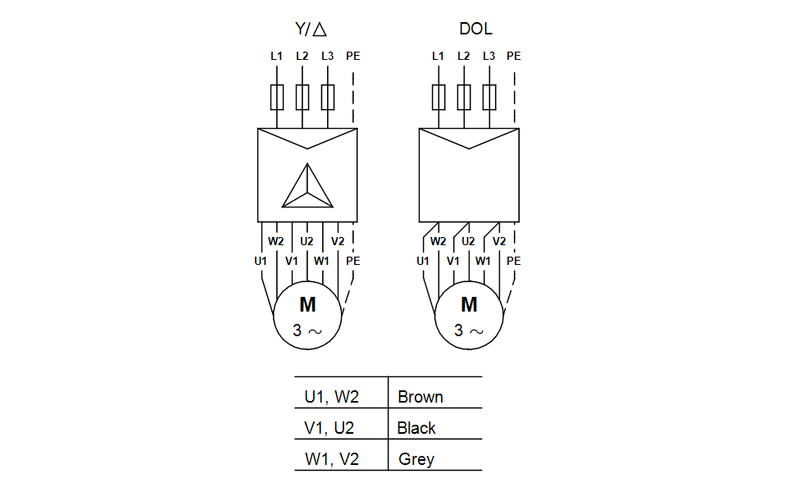

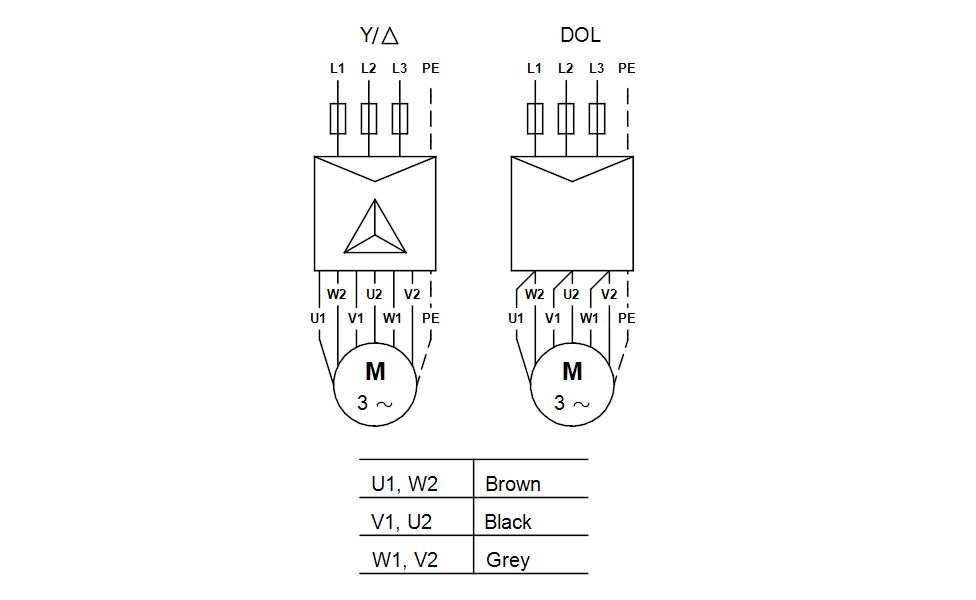

DWiring Diagram
