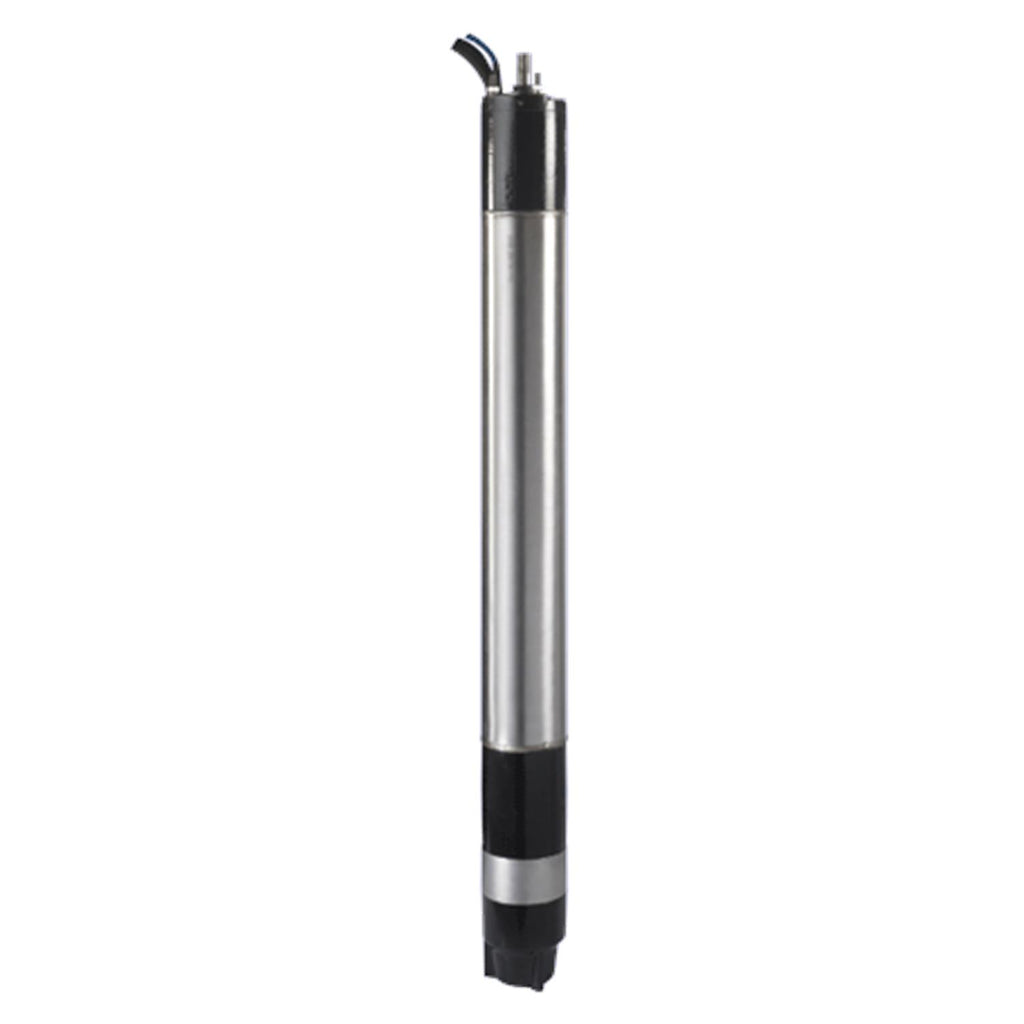

Grundfos 92530719 - MMS 6 N | Submersible Motor | High Efficiency

GRUNDFOSSKU: 92530719

Price:
Sale price$15,452.00
Non stocked product
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MMS 6 N submersible motor designed for 6" and larger submersible pump assemblies; used by service techs and OEMs needing a rewindable, wet-wound 3-phase motor with protective features.

Key features

  • 3-phase wet-wound rewindable design with sand shield for extended life
  • Fits 6" and larger submersible motor applications (MS6000-MMS family)
  • Liquid-lubricated bearings and pressure-equalizing diaphragm provide smoother operation and reduced maintenance

Applications

Suitable for commercial and industrial submersible pump repairs, well and dewatering systems, and OEM motor replacements where a robust, serviceable motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92530719

EAN 5715115814415
Applications Motors
Approvals CE
Built-in motor protection NONE
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
KVA code H
Locked-rotor torque 145-160-175 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.5 m/sec 40 °C
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.292 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor efficiency at 1/2 load 83-79 %
Motor efficiency at 3/4 load 83-82 %
Motor efficiency at full load 1 81-83 %
Motor type MMS6
Motor version T40
Net weight 265.0 lb
Power factor 1 0.84-0.82-0.80
Product family MMS6
Rated current 107-101-100 A
Rated full-load torque 1 105.5 ft lb
Rated power - P2 45 kW
Rated speed 2850-2870-2880 rpm
Rated voltage 3 x 380-400-415 V
Real Time 1 Available on 10/12/2023 Plant: Allentown  Update with real time availability and Net price
Rubber NBR
Service factor 1
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 450-500-525 %
Thermal protec external
Type MMS6
Version T40
Voltage tolerance +6/-10 %
Windings PE2/PA

Motor Curves

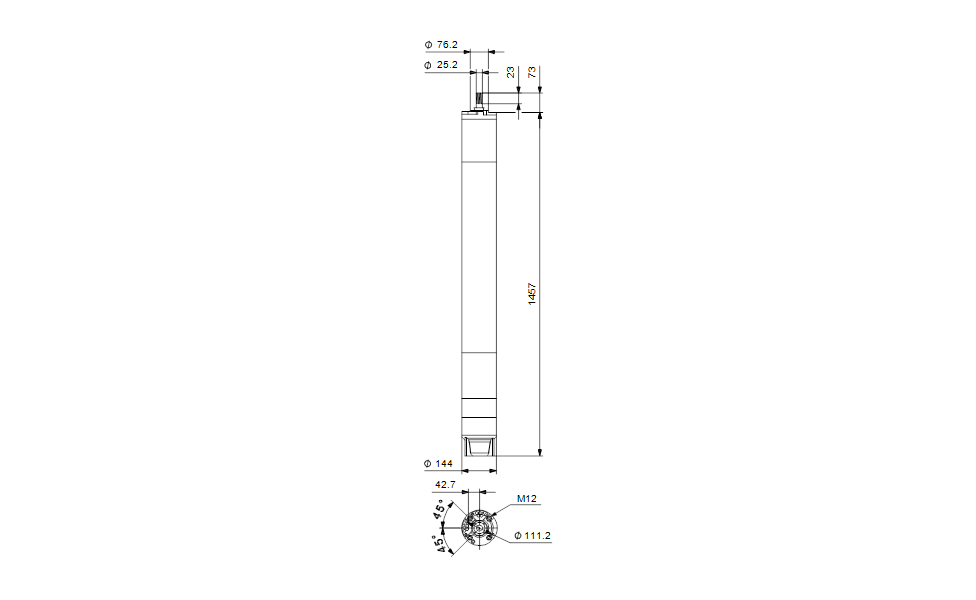

Dimensional Drawing

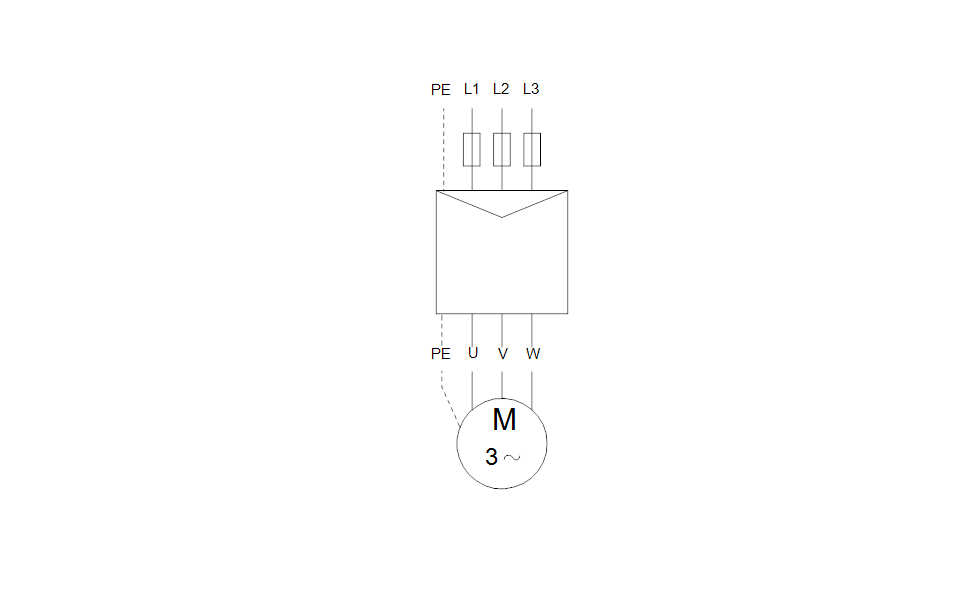

DWiring Diagram
