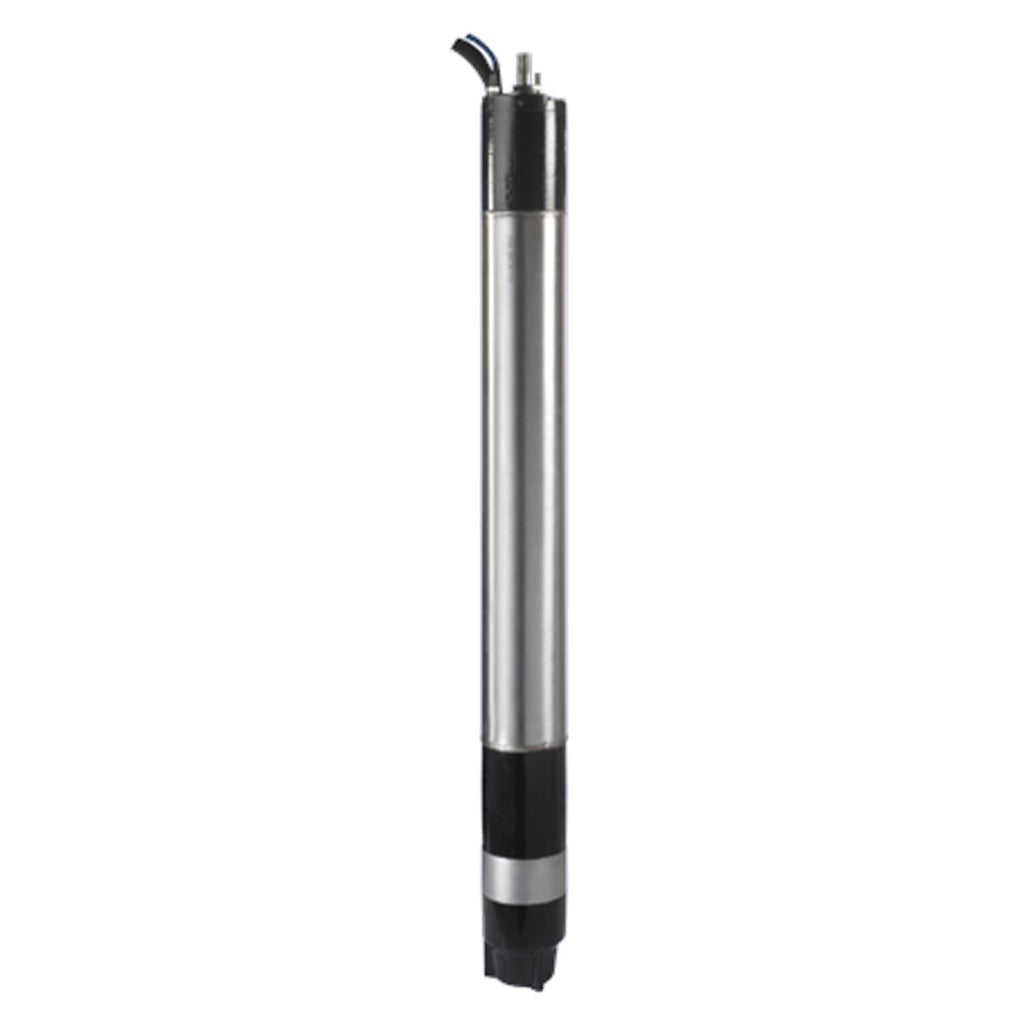

Grundfos 92530624 - MMS 6 N | Submersible Motor | High Efficiency

GRUNDFOSSKU: 92530624

Price:
Sale price$11,180.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92530624 MMS 6 N submersible motor is a wet-wound, rewindable 3-phase motor designed for 6" and larger submersible pump applications used in municipal, commercial, and irrigation systems. For parts and service call 781-281-8905.

Key features

  • 3-phase wet-wound rewindable design with sand shield for durability in submerged environments
  • Compatible with 6" and larger submersible motor families (MS6000–MMS) and related controls/accessories
  • Liquid-lubricated bearings and a pressure-equalizing diaphragm provide reliable operation and reduced maintenance

Applications

Suitable for replacement motors in deep-well, dewatering, municipal water, and irrigation pumping systems where robust submersible performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92530624

EAN 5715115812718
Applications Motors
Approvals CE
Built-in motor protection NONE
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
KVA code H
Locked-rotor torque 162-180-196 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.5 m/sec 50 °C
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.292 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor efficiency at 1/2 load 82.4-79.6 %
Motor efficiency at 3/4 load 82.7-82 %
Motor efficiency at full load 1 80.4-81.6 %
Motor type MMS6
Motor version T50
Net weight 265.0 lb
Power factor 1 0.85-0.82-0.79
Product family MMS6
Rated current 87.0-84.5-85.0 A
Rated full-load torque 1 87.03 ft lb
Rated power - P2 37 kW
Rated speed 2830-2860-2870 rpm
Rated voltage 3 x 440-460-480 V
Real Time 1 Available on 10/12/2023 Plant: Allentown  Update with real time availability and Net price
Rubber NBR
Service factor 1
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 455-495-510 %
Thermal protec external
Type MMS6
Version T50
Voltage tolerance +6/-10 %
Windings PE2/PA

Motor Curves

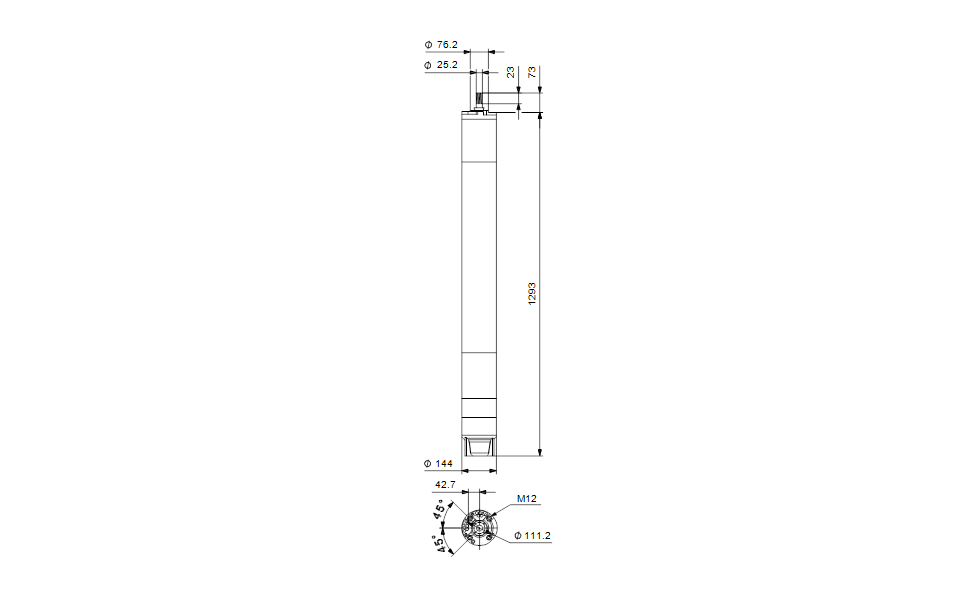

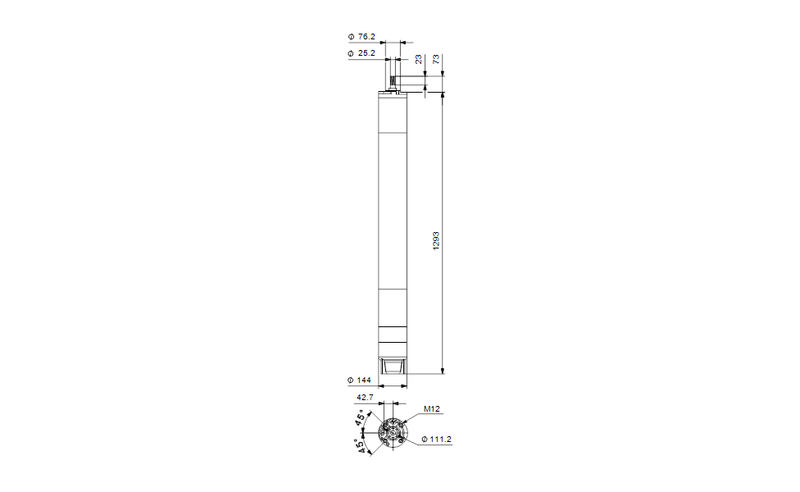

Dimensional Drawing

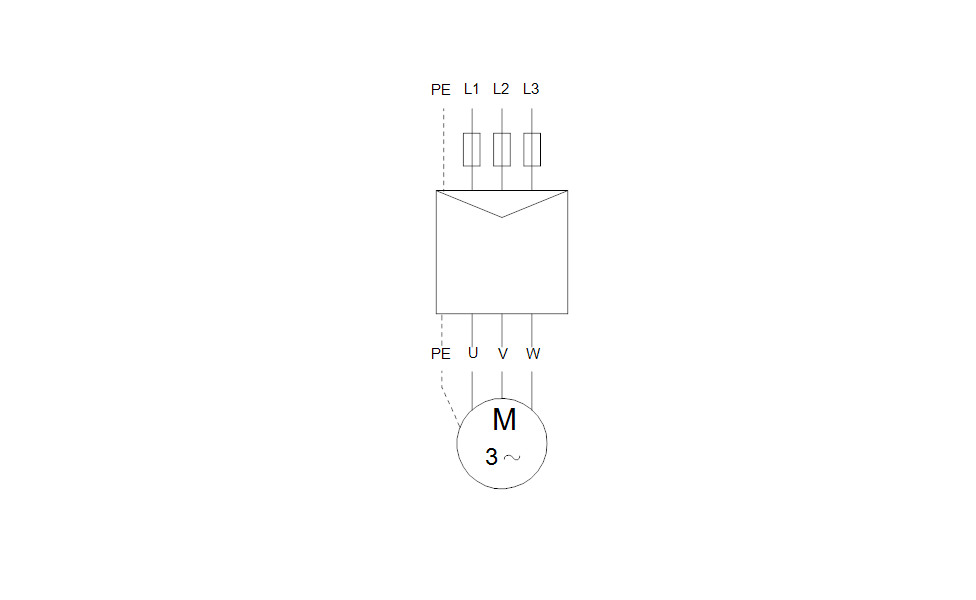

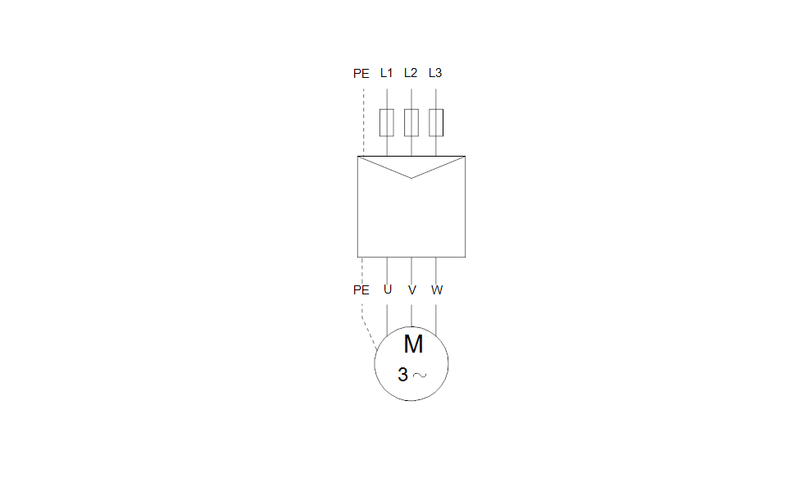

DWiring Diagram
