Grundfos 96444632 - MMS 12000 N | Submersible Motor | High Efficiency

GrundfosSKU: 96444632

Price:
Sale price$111,075.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MMS 12000 N · Grundfos Accessory / Spare Part / Control
ACC340HP380-400-415V3-Phase50 HzIP68

The Grundfos 96444632 (MMS 12000 N) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 380-400-415V, 3-Phase, 50 Hz. Applications include Rotor & spray irrigation, Ground water transfer, Livestock & Wildlife Watering and more.

Power
340HP
Voltage
380-400-415V
Phase
3-Phase
Frequency
50 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MMS 12000 N
Series: ACC
Model Code: MMS 12000 N
Technical Specifications
Model Number 96444632
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 340HP
Voltage 380-400-415V
Phase 3-Phase
Frequency 50 Hz
Motor Speed 2920-2920-2930rpm
Full Load Current 515-505-510A
Motor Type MMS12000
Motor Efficiency 88.0%
Protection Class (IP) IP68
Applications
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-400-415V, 3-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MMS 12000 N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700394130943
Axial load max 7000 kg
Breakdown torque 290-300-330 %
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 12 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 180-190-200 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 86 °F
Max liquid t at 0.5 m/sec 35 °C
Moment of inertia 7.136 lb ft²
Motor Stainless steel
Motor diameter 12 inch
Motor efficiency at 1/2 load 86-84 %
Motor efficiency at 3/4 load 88-87 %
Motor efficiency at full load 1 0.88
Motor type MMS12000
Motor version T35
Net weight 1710.0 lb
Power factor 1 0.89-0.85-0.81
Rated current 515-505-510 A
Rated full-load torque 1 601.1 ft lb
Rated power - P2 250 kW
Rated speed 2920-2920-2930 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor CER/CARBON
Start. method direct-on-line
Starting current 540-590-610 %
Thermal protec external
Type MMS12000
Version T35
Voltage tolerance +6/-10 %
Winding resistance 0.024 ohm
Windings PE2/PA

Motor Curves

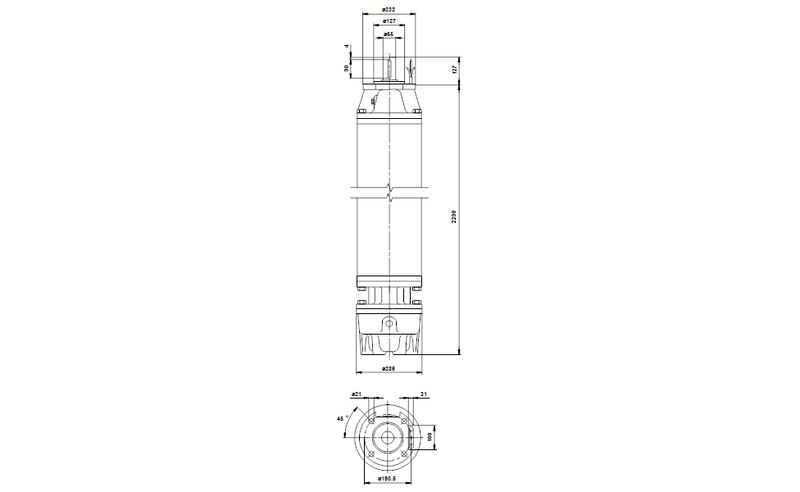

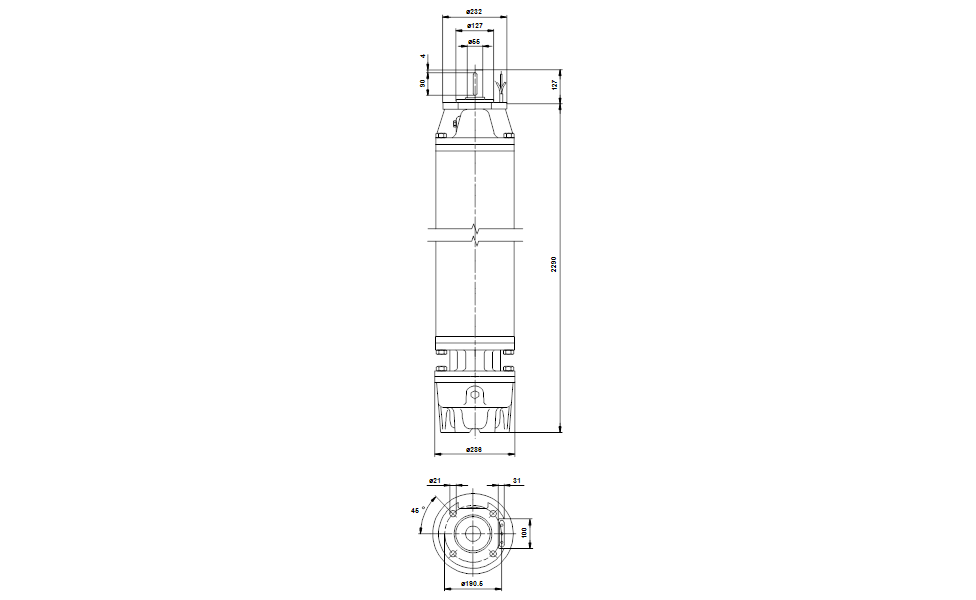

Dimensional Drawing

DWiring Diagram
