Grundfos 96937302 - MMS 10000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96937302

Price:
Sale price$59,927.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos Grundfos 96937302 MMS 10000 is a submersible motor designed for large-diameter pump assemblies and industrial installations, suitable for technicians and service professionals replacing or maintaining MMS series units.

Key features

  • 3-phase wet-wound rewindable motor with sand shield for durability in demanding environments
  • Tagged for 6" and larger submersible motors and MMS 10000 series applications
  • Liquid-lubricated bearings and pressure-equalizing diaphragm provide reliable operation and reduced service intervals

Applications

Suitable for deep-well and large-submersible pump systems, municipal and industrial dewatering, and OEM motor replacements where MMS-series compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96937302

EAN 5700314105624
Applications Motors
Axial load max 5000 kg
Breakdown torque 290-320-340 %
Built-in temp. transmitter no
Diameter 10 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 190-210-230 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 4.414 lb ft²
Motor Cast iron
Motor diameter 10 inch
Motor efficiency at 1/2 load 85-83 %
Motor efficiency at 3/4 load 87-86 %
Motor efficiency at full load 1 88-87 %
Motor type MMS10000
Motor version T45
Net weight 1100.0 lb
Power factor 1 0.85-0.81-0.77
Product family MMS 10000
Rated current 315-315-320 A
Rated full-load torque 1 339.3 ft lb
Rated power - P2 147 kW
Rated speed 2920-2920-2930 rpm
Rated voltage 3 x 440-460-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 580-620-630 %
Type MMS10000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.046 ohm
Windings PE2/PA

Motor Curves

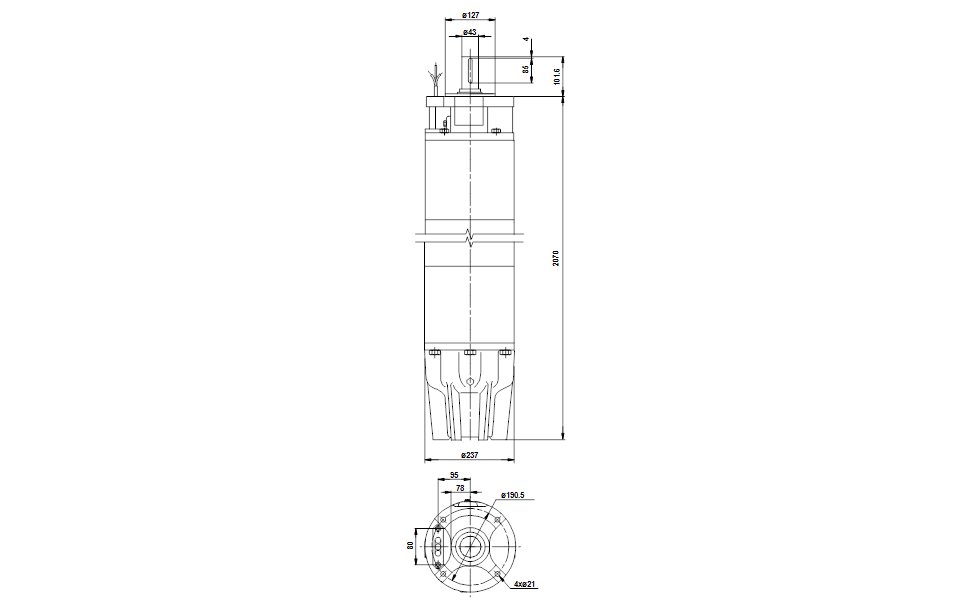

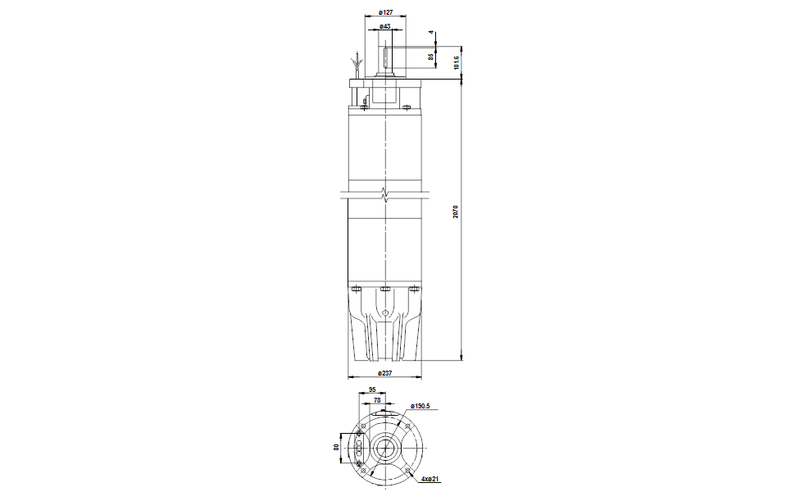

Dimensional Drawing

DWiring Diagram
